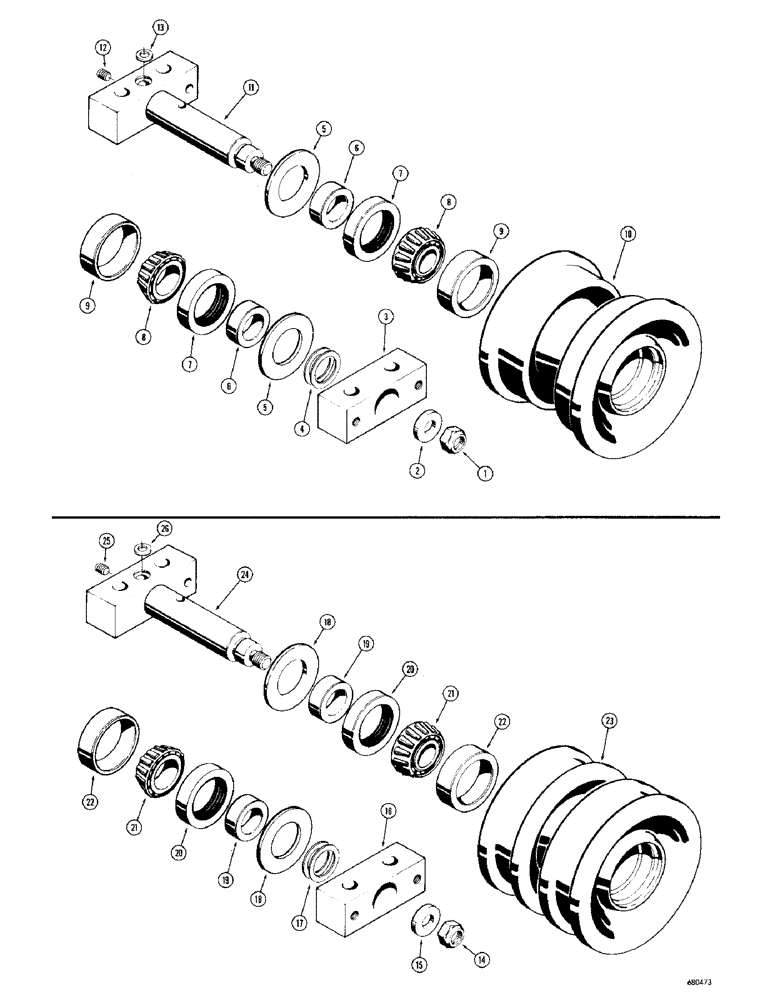

Запчасти Case 1000D (166) - TRACK ROLLERS, R21871 TRACK ROLLER (SINGLE FLANGE), USED BEFORE TRAC. SN. 7104771 (04) - UNDERCARRIAGE

R21871

ROLLER - track, single flange (Used on Mining Special models only) (When stock is exhausted use D32700 or D37932 roller for service) See Figures 170 and 172 for breakdown 7104771

8шт.

1

131-581

LOCK NUT,3/4"-16

NUT - hex., lock (3/4" - 16 NF)

1шт.

2

32601

WASHER

- retaining

1шт.

3

R13551

BLOCK - roller, outer (Use R16913 block for service)

1шт.

4

R19587

SHIM,.005" Thk

Roller .005" Thk

1шт.

5

70069

SHIELD

- roller

2шт.

6

70068

SPACER

- roller

2шт.

7

N13191

OIL SEAL

- oil

2шт.

8

40409

ROLLER BEARING,1.5625" ID x 1.01"

CONE - bearing

2шт.

9

A26533

ROLLER BEARING,76.45 mm OD x 19.1 mm

CUP - bearing

2шт.

10

R12305

HUB - roller, single flange

1шт.

11

R13551

BLOCK AND SHAFT - roller (Use R16915 block and shaft for service)

1шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

13

74667

GASKET

- grease seal

12шт.

R21872

ROLLER - track, double flange (Used on Mining Special models only)(When stock is exhausted use D32701 or D37933 roller for service) See Figures 170 and 172 for breakdown 7107441

4шт.

14

131-581

LOCK NUT,3/4"-16

NUT - hex., lock (3/4" - 16 NF), R21872 track roller (double flange) 7104771

1шт.

15

32601

WASHER

- retaining, R21872 track roller (double flange) 7104771

1шт.

16

R13551

BLOCK - roller, outer (Use R16913 block for service), R21872 track (double flange) 7104771

1шт.

17

R19587

SHIM,.005" Thk

Roller, R21872 track (double flange) 7104771 .005" Thk

1шт.

18

70069

SHIELD

- roller, R21872 track (double flange) 7104771

2шт.

19

70068

SPACER

- roller, R21872 track (double flange) 7104771

2шт.

20

N13191

OIL SEAL

- oil, R21872 track roller (double flange) 7104771

2шт.

21

40409

ROLLER BEARING,1.5625" ID x 1.01"

CONE - bearing, R21872 track roller (double flange) 7104771

2шт.

22

A26533

ROLLER BEARING,76.45 mm OD x 19.1 mm

CUP - bearing, R21872 track roller (double flange) 7104771

2шт.

23

R14428

HUB - roller, double flange, R21872 track 7104771

1шт.

24

R13551

BLOCK AND SHAFT - roller (Use R16915 block and shaft for service), R21872 track roller (double flange) 7104771

1шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT), R21872 track roller (double flange) 7104771

1шт.

26

74667

GASKET

- grease seal, R21872 track roller (double flange) 7104771

12шт.
