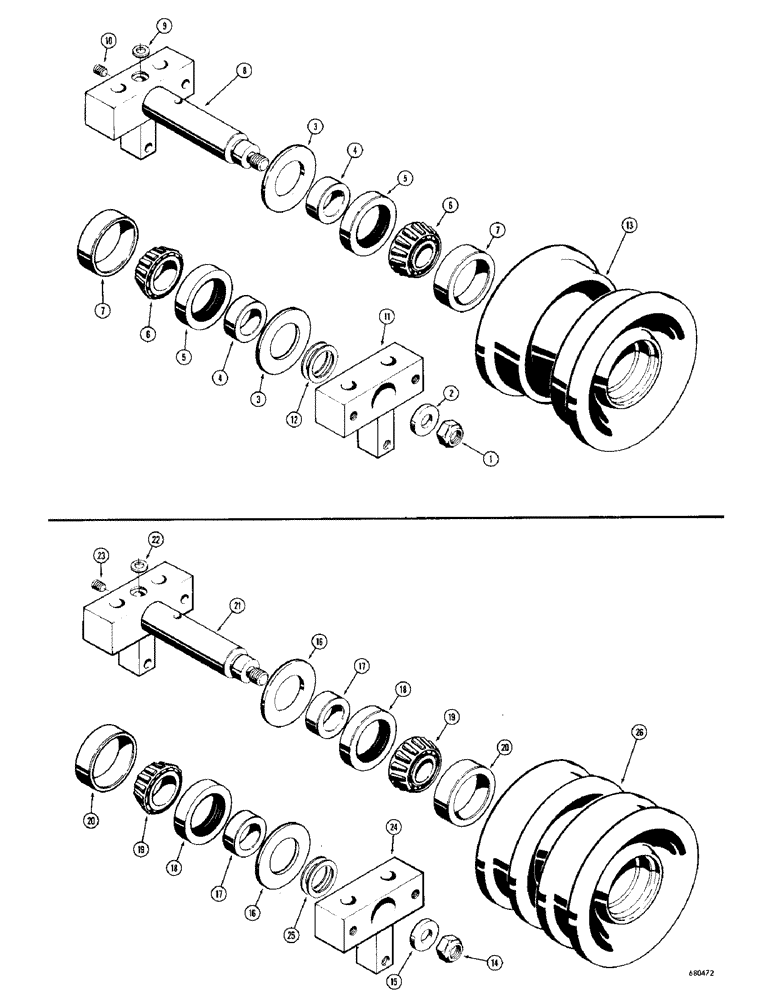

Запчасти Case 1000D (164) - TRACK ROLLERS, R18562 TRACK ROLLER (SINGLE FLANGE), USED BEFORE TRAC. SN. 7104771 (04) - UNDERCARRIAGE

R18562

ROLLER - track, single flange (Used on all models except Mining Specials) (When stock is exhausted use D31319 or D37344 roller for service) See Figures 168 and 172 for breakdown 7104771

8шт.

R3309

KIT

- roller rebuild

1шт.

1

131-581

LOCK NUT,3/4"-16

NUT - hex., lock (3/4" - 16 NF)

1шт.

2

32601

WASHER

- retaining

1шт.

3

70069

SHIELD

- track roller

2шт.

4

70068

SPACER

- track shield

2шт.

5

N13191

OIL SEAL

- oil

2шт.

6

40409

ROLLER BEARING,1.5625" ID x 1.01"

CONE - bearing

2шт.

7

A26533

ROLLER BEARING,76.45 mm OD x 19.1 mm

CUP - bearing

2шт.

8

R16915

SHAFT

BLOCK AND SHAFT - roller

1шт.

9

74667

GASKET

- grease seal (Services as individual item or as part of roller kit, is not included in complete roller)

1шт.

10

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

11

R16913

BLOCK - track roller, outer

1шт.

12

R19587

SHIM,.005" Thk

Track roller .005" Thk

1шт.

13

R12305

HUB - roller, single flange

1шт.

R18561

ROLLER - track, double flange (Used on all models except Mining Specials) (When stock is exhausted use D31331 or D37345 roller for service) See Figures 168 and 172 for breakdown 7104771

4шт.

R3309

KIT

- roller rebuild, R18561 track (double flange) 7104771

1шт.

14

131-581

LOCK NUT,3/4"-16

NUT - hex., lock (3/4" - 16 NF), R18561 track roller (double flange) 7104771

1шт.

15

32601

WASHER

- retaining, R18561 track roller (double flange) 7104771

1шт.

16

70069

SHIELD

- track roller, R18561 (double flange) 7104771

2шт.

17

70068

SPACER

- track shield, R18561 track roller (double flange) 7104771

2шт.

18

N13191

OIL SEAL

- oil, R18561 track roller (double flange) 7104771

2шт.

19

40409

ROLLER BEARING,1.5625" ID x 1.01"

CONE - bearing, R18561 track roller (double flange) 7104771

2шт.

20

A26533

ROLLER BEARING,76.45 mm OD x 19.1 mm

CUP - bearing, R18561 track roller (double flange) 7104771

2шт.

21

R16915

SHAFT

BLOCK AND SHAFT - roller, R18561 track roller (double flange) 7104771

1шт.

22

74667

GASKET

- grease seal (Serviced as individual item or as part of roller kit, is not included in complete roller), R18561 track roller (double flange) , R18561 track roller (double flange) 7104771

1шт.

23

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT), R18561 track roller (double flange) 7104771

1шт.

24

R16913

BLOCK - track roller, outer, R18561 track roller (double flange) 7104771

1шт.

25

R19587

SHIM,.005" Thk

Track roller, R18561 track roller (double flange) 7104771 .005" Thk

1шт.

26

R14428

HUB - roller, single flange, R18561 track roller (double flange) 7104771

1шт.
