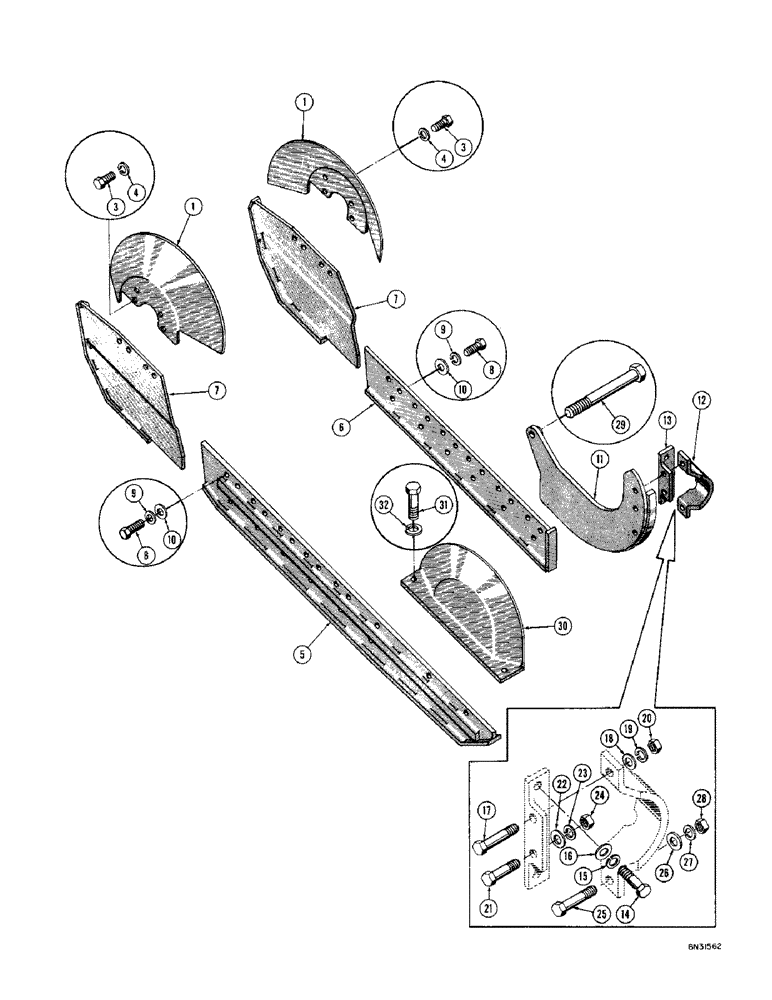

Запчасти Case 1000D (162) - ROCK GUARDS (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
70643
KNOB
GUARD - front idler, L.H.
2шт.
70642
GUARD - front idler, R.H.
2шт.
2
RESERVED
1шт.
3
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2" - 20 NF x 1" (70642 & 70643 mounting)
16шт.
4
92-8
LOCK WASHER,1/2"
16шт.
5
R17724
GUARD - outer rock, L.H.
1шт.
R17725
GUARD - outer rock, R.H.
1шт.
6
R17741
GUARD - inner rock, L.H.
1шт.
R17742
GUARD - inner rock, R.H.
1шт.
7
R18951
GUARD
- idler, L.H.
2шт.
R18952
GUARD
- idler, R.H.
2шт.
8
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2" - 20 NF x 1-1/4" (R17724, R17725, R17741, & R17742 mounting)
76шт.
9
92-8
LOCK WASHER,1/2"
76шт.
10
95-8
WASHER,1/2"
standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"
76шт.
11
R17403
GUARD - inner sprocket, L.H.
1шт.
R17404
GUARD - inner sprocket, R.H.
1шт.
12
R17747
DEFLECTOR - inner rock guard, L.H.
1шт.
R17748
DEFLECTOR - inner rock guard, R.H.
1шт.
13
R12325
BRACKET
- rock guard mounting
2шт.
14
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
(R12325 mounting) Hex, 5/8"-11 x 1 1/2", G5, Full Thd
4шт.
16
195-41
WASHER,5/8"
4шт.
17
14-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 5
(R17403, R17404, R17747, R17748, & R12325 mounting) Hex, 5/8"-18 x 2", G5
2шт.
18
195-41
WASHER,5/8"
2шт.
20
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF)
2шт.
21
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
(R17403, R17404, & R12325 mounting) Hex, 5/8"-18 x 1 3/4", G5
2шт.
22
195-41
WASHER,5/8"
2шт.
24
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF)
2шт.
25
14-1036
BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5
(R17403, R17404, R17747 & R17748 mounting) Hex, 5/8"-18 x 2 1/4", G5
2шт.
26
195-41
WASHER,5/8"
2шт.
28
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF)
2шт.
29
14-16120
BOLT,Hex, 1" - 14 x 7-1/2", Gr 5
HHCS - 1" - 14 NF x 7-1/2"
2шт.
30
R18217
GUARD - sprocket
2шт.
31
14-1024
BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5
(R18217 mounting) Hex, 5/8"-18 x 1 1/2", G5
4шт.
Выбрано товаров: 38
