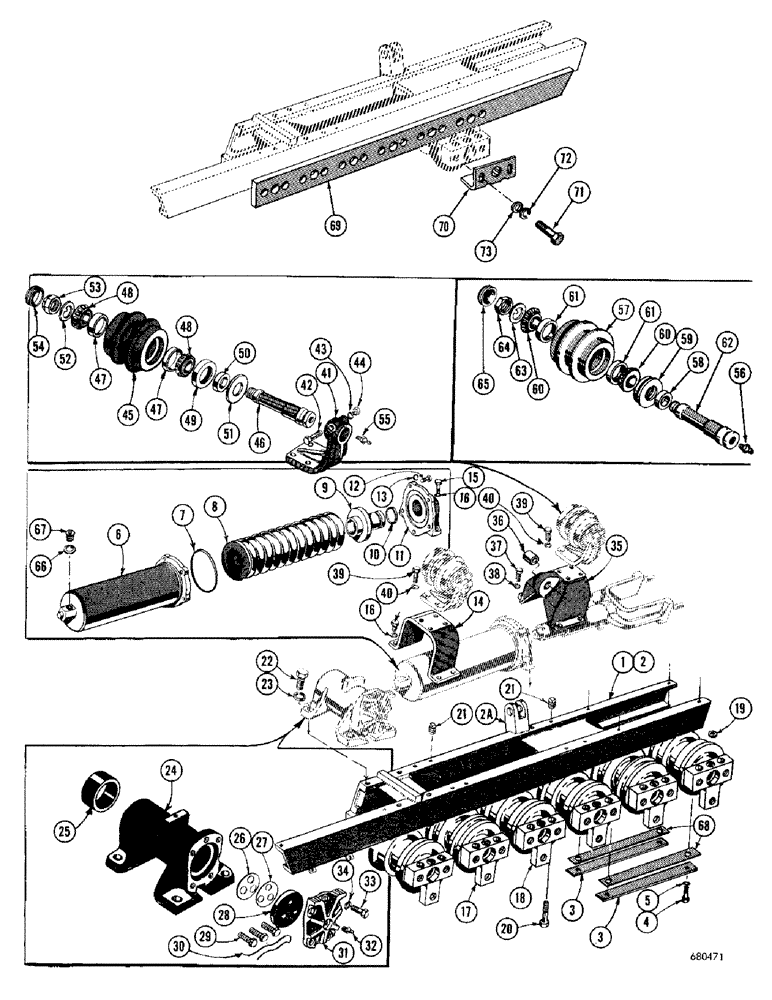

Запчасти Case 1000D (156) - TRACK FRAME AND RECOIL SYSTEM (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
D29684
FRAME - L.H. track (Loader models only) Used on tractor serial no. 7104001 and after
1шт.
R21169
FRAME - L.H. track (Loader models only) Used before tractor serial no.7104001 (When stock is exhausted, use D29684 frame for service)
1шт.
D29682
FRAME - L.H. track (Drawbar and Dozer models only) Used before tractor serial no. 7104001 (When stock is exhausted, use D29682 frame for service)
1шт.
R21173
FRAME - L.H. track (Drawbar and Dozer models only) Used before tractor serial no. 7104001 (When stock is exhausted, use D29682 frame for service)
1шт.
2
D29685
FRAME - R.H. track (Loader models only) Used before tractor serial no. 7104001 and after
1шт.
R21170
FRAME - R.H. track (Loader models only) Used before tractor serial no. 7104001 (When stock is exhausted, use D29685 frame for service)
1шт.
D29683
FRAME - R.H. track (Drawbar and Dozer models only) Used on tractor serial no. 7104001 and after
1шт.
R21174
FRAME - R.H. track (Drawbar and Dozer models only) Used before tractor serial no. 7104001 (When stock is exhausted, use D29683 frame for service)
1шт.
2a
R20517
BRACKET - guide lever
2шт.
3
70094
PLATE
- wear, track channel
4шт.
4
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2" - 20 NF x 1-1/4" (70094 mounting)
8шт.
5
92-8
LOCK WASHER,1/2"
8шт.
6
R20109
HOUSING
- recoil spring
2шт.
7
R21494
O-RING,0.139" Thk x 7.234" ID, -263, Cl 6, 90 Duro
SEAL - "O" ring
2шт.
8
R18708
SPRING
- recoil
2шт.
9
R20332
SLEEVE - recoil spring (Used with R22090 hydraulic track adjuster only) See Figure 176
2шт.
D32150
SLEEVE - recoil spring (Used with D31301 and D36733 track adjusters only) See Figure 176
2шт.
10
R20339
SEAL
- recoil
2шт.
11
D29679
FLANGE - front recoil housing (Used on tractor serial no. 7104001 and after)
2шт.
R20331
FLANGE - front recoil housing (Used before tractor serial no. 7104001)
2шт.
13
192-165
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
10шт.
14
D29678
BRACKET - support roller, rear (Used on tractor serial no. 7104001 and after)
2шт.
R20131
BRACKET - support roller, rear (Used before tractor serial no. 7104001
2шт.
15
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
(D29678 and D29679 mounting) Hex, 5/8"-18 x 1 3/4", G5
12шт.
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
HHCS - 1/2" - 20 NF x 1-3/4" (R20331 and R20131 mounting)
12шт.
92-8
LOCK WASHER,1/2"
12шт.
17
R18561
ROLLER - track, double flange (Used on all models except Mining Specials) Used before tractor serial no. 7104771 (See Figure 164 for breakdown) When stock is exhausted use D31331 or D37345 roller for service
4шт.
R21872
ROLLER - track, double flange (Used on Mining Special models only) Used before tractor serial no. 7104771 (See Figure 166 for breakdown) When stock is exhausted use D32701 or D37933 roller for service
4шт.
D31331
ROLLER
- track double flange (Used on all models except Mining Specials) Used on tractor serial no, 7104771 and after (See Figure 168 for breakdown) See D37345 service option roller
4шт.
D32701
ROLLER - track, double flange (Used on Mining Special models only) Used on tractor serial no. 7104771 and after (See Figure 170 for breakdown) See D37933 service option roller
4шт.
D37345
ROLLER - track, double flange (Used on all models except Mining Specials) See Figure 172 for breakdown (Service option)
4шт.
D37933
ROLLER - track, double flange (Used on Mining Specials models only) See Figure 172 for breakdown (Service option)
4шт.
18
R18562
ROLLER - track, single flange (Used on all models except Mining Specials) Used before tractor serial no. 7104771 (See Figure 164 for breakdown) When stock is exhausted use D31319 or D37344 roller for service
8шт.
R21871
ROLLER - track, single flange (Used on Mining Special models only) Used before tractor serial no. 7104771 (See Figure 166 for breakdown) When stock is exhausted use D32700 or D37932 roller for service
8шт.
D31319
ROLLER
- track, single flange (Used on all models except Mining Specials) Used on tractor serial no. 7104771 and after (See Figure 168 for breakdown) See D37344 service option roller
8шт.
D32700
X
ROLLER - track, single flange (Used on Mining Special models only) Used on tractor serial no. 7104771 and after (See Figure 170 for breakdown) See D37932 service option roller
8шт.
D37344
ROLLER
- track, single flange (Used on all models except Mining Specials) See Figure 172 for breakdown (Service option)
8шт.
D37932
ROLLER - track, single flange (Used on Mining Special models only) See Figure 172 for breakdown (Service option)
8шт.
19
74667
GASKET
- track roller
12шт.
20
R18182
BOLT - place (Roller mounting)
48шт.
21
221-1031
DRAIN PLUG,Sq Soc, 1/4"-18 NPTF
PLUG - pipe, 1/4" NPT square socket head
4шт.
22
14-1636
BOLT,Hex, 1" - 14 x 2-1/4", Gr 5, Full Thd
HHCS - 1" - 14 NF x 2-1/4" (R20440 mounting)
8шт.
23
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
8шт.
24
R20440
BLOCK - pivot shaft
2шт.
25
R22467
HOSE
- pivot block to main frame
2шт.
26
R13086
X
SHIM - pivot shaft (.010" thick)
1шт.
27
R13087
SHIM,.031" Thk
Pivot shaft .031" Thk
1шт.
28
R13085
PLATE - pivot shaft end
2шт.
29
R13420
BOLT
- special (5/8" - 18 NF x 1-3/4")
6шт.
30
R13538
ELECTRICAL WIRE
WIRE - tie
2шт.
31
R14099
COVER
- pivot shaft
2шт.
32
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8" NPT
2шт.
33
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2" - 20 NF x 1-1/2" (R14099 mounting)
10шт.
34
92-8
LOCK WASHER,1/2"
10шт.
R20333
BRACKET ASSEMBLY - track carrier roller, front (Used with R22090 hydraulic track adjuster only) See Figure 176 (When stock is exhausted use D32166 for service)
2шт.
D32166
BRACKET ASSEMBLY - track carrier roller, front (Used with D31301 and D36733 track adjusters as original equipment and with R22090 hydraulic track adjuster as replacement part) See Figure 176
2шт.
35
NSS
NOT SOLD SEPARAT
BRACKET - track carrier roller, front
1шт.
36
R13096
BUSHING
- track carrier roller
1шт.
37
14-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 5
(R20333 and D32166 mounting) Hex, 5/8"-18 x 2", G5
8шт.
39
14-1024
BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5
(R13027 mounting) Hex, 5/8"-18 x 1 1/2", G5
16шт.
41
R13027
BRACKET
- carrier roller
4шт.
42
14-848
BOLT,Hex, 1/2" - 20 x 3", Gr 5
HHCS - 1/2" - 20 NF x 3" (R13027 mounting)
4шт.
43
92-8
LOCK WASHER,1/2"
4шт.
44
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
4шт.
R20141
ROLLER - track carrier (Used before tractor serial no. 7105401) Order D31809 roller for service (See Figure 172 for D36354 service option roller)
4шт.
45
70080
HUB - carrier roller
1шт.
D31453
KIT
- carrier roller
1шт.
46
R19944
X
SHAFT - carrier roller
1шт.
47
G57451
BEARING, CUP
CUP - roller bearing
2шт.
48
G57452
ROLLER BEARING
CONE - roller bearing
2шт.
49
40646
GASKET
SEAL - oil
1шт.
50
70081
SPACER
- carrier roller
1шт.
51
70086
SHIELD
- carrier roller
1шт.
52
R20132
WASHER
- keyed
1шт.
53
72183
NUT
- carrier roller
1шт.
54
R20063
CAP
- carrier roller (Order D32270 for service)
1шт.
55
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8" NPT
1шт.
D31809
ROLLER
- track carrier (Used on tractor serial no. 7105401 and after) See Figure 172 of D36354 service option roller
4шт.
56
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease
1шт.
57
D31808
HUB - track carrier roller
1шт.
D32609
KIT
- carrier roller
1шт.
58
D31806
BUSHING,34.92mm ID x 52.32mm OD x 19.43mm L
SPACER - track carrier roller
1шт.
59
D31322
SEAL
- special
1шт.
60
G57452
ROLLER BEARING
CONE - bearing
2шт.
61
G57451
BEARING, CUP
CUP - bearing
2шт.
62
D31807
SHAFT
- track carrier roller
1шт.
63
R20132
WASHER
- keyed
1шт.
64
72183
NUT
- track carrier roller
1шт.
65
D32270
CYLINDER END CAP
CAP - track carrier roller
1шт.
66
72293
GASKET
- recoil spring housing
2шт.
67
R14777
PLUG
- filler
2шт.
68
D32163
SHIM
- track frame
1шт.
69
R23287
GUARD BAR - track roller
4шт.
70
R20379
PLATE - lock, track roller
24шт.
71
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2" - 20 NF x 1-1/4" (R20379 mounting)
48шт.
72
92-8
LOCK WASHER,1/2"
48шт.
73
195-33
WASHER,1/2"
- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)
48шт.
Выбрано товаров: 101
