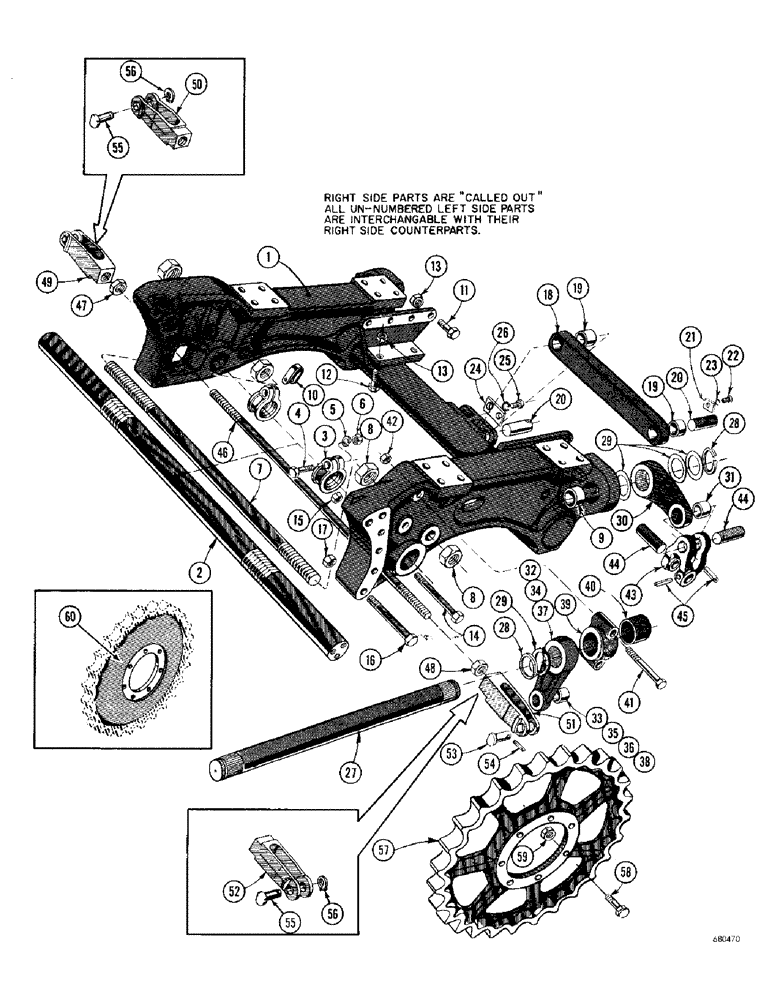

Запчасти Case 1000D (152) - SUSPENSION SYSTEM (04) - UNDERCARRIAGE

1

R18213

FRAME ASSEMBLY - main (60" gauge)

1шт.

2

R14101

SHAFT - pivot (When stock is exhausted use D36986 shaft for service)

1шт.

D36986

SHAFT

- pivot

1шт.

3

R14205

CLAMP

- pivot shaft

2шт.

4

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4" - 16 NF x 4-1/2" (R14205 mounting)

2шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

25-1112

NUT,3/4"-16, G5

- regular SF hex. (3/4" - 16 NF)

2шт.

7

R13422

ROD

- compression

1шт.

8

25-1124

NUT,1 1/2"-12, G5

- regular SF hex. (1-1/2" - 12 NF)

4шт.

9

70091

BUSHING

2шт.

10

R20158

CLAMP

"U" STRAP

2шт.

11

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3" (R18213 mounting)

8шт.

12

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4" - 16 NF x 2-3/4" (R18213 mounting)

2шт.

13

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" - 16 NF)

10шт.

14

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

(Final drive mounting) Hex, 1"-8 x 6 1/2", G5

10шт.

15

87779094

LOCK NUT,1"-8, GB

NUT, LOCK, 1"-8, GB

10шт.

16

14-16120

BOLT,Hex, 1" - 14 x 7-1/2", Gr 5

HHCS - 1" - 14 NF x 7-1/2" (Final drive and rock guard mounting)

2шт.

17

232-46116

LOCK NUT,1"-14, GC

NUT - hex., lock (1" - 14 NF)

2шт.

18

R18143

LEVER

ASSEMBLY - suspension

2шт.

19

R13096

BUSHING

- lever (When stock is exhausted use D36473 bushing for service)

2шт.

D36473

BUSHING,37.64mm ID x 50.65mm OD x 34.92mm L

- lever

2шт.

20

R18107

PIN

- guide lever

4шт.

21

R18106

PLATE

- pin retaining

2шт.

22

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1" (R18106 mounting)

2шт.

23

92-8

LOCK WASHER,1/2"

2шт.

24

R18139

PLATE ASSY.

PLATE - pin keeper

1шт.

25

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1" (R18139 mounting)

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

R18705

X

BAR - torsion

2шт.

28

R18674

RING

- snap

4шт.

29

74298

WASHER

SPACER

1шт.

30

D36692

LEVER

ASSEMBLY - front equalizer

2шт.

31

R13096

BUSHING

1шт.

32

NLS

NO LONGER SERVICED

LEVER ASSEMBLY - rear equalizer (Used before tractor serial no. 7104626) When stock is exhausted use 1 - D34029 lever, 1 - D30397 pin, 1 - D25279 retaining ring, and 1 - D29932 R.H. yoke or 1 - D29923 L.H. yoke for service)

2шт.

33

70914

BUSHING

- lever

1шт.

34

D30398

X

LEVER ASSEMBLY - rear equalizer (Used on tractor serial no. 7104626 and up to tractor serial no. 7105697) When stock is exhausted order D34029 for service)

2шт.

35

D27430

X

BUSHING - lever (When stock is exhausted order D31140 for service)

1шт.

36

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- lever

1шт.

37

D34029

LEVER

ASSEMBLY - rear equalizer (Used on tractor serial no. 7105697 and after)

2шт.

38

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- lever

1шт.

39

70096

BRACKET

ASSEMBLY - torsion bar

2шт.

40

70091

BUSHING

1шт.

41

14-12100

BOLT,Hex, 3/4" - 16 x 6-1/4", Gr 5

HHCS - 3/4" - 16 NF x 6-1/4" (70096 mounting)

4шт.

42

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" - 16 NF)

4шт.

43

R13786

LINK

- torsion

2шт.

44

R13128

PIN

- torsion link

4шт.

45

138-209

LOCK PIN,1/2" x 2 3/4", Slotted

Pin, 1/2" x 2 3/4", Slotted

4шт.

46

R21046

ROD

- equalizer

1шт.

47

129-332

SPECIAL NUT,1 1/4"-12, G5, LH

1шт.

48

25-1120

NUT,1 1/4"-12, G5

- regular SF hex. (1-1/4" - 12 NF)

1шт.

49

R21047

X

YOKE - L.H. (Used before tractor serial no. 7104626) When stock is exhausted use 1 - D34029 lever, 1 - D30397 pin, 1 - D25279 retaining ring and 1 - D29933 yoke for service)

1шт.

50

D29933

X

YOKE - L.H. (Used on tractor serial no. 7104626 and after)

1шт.

51

R21048

X

YOKE - R.H. (Used before tractor serial no. 7104626) When stock is exhausted use 1 - D34029 lever, 1 - D30397 pin, 1 - D25279 retaining ring and 1 - D29932 yoke for service

1шт.

52

D29932

X

YOKE - R.H. (Used on tractor serial no. 7104626 and after)

1шт.

53

71673

PIN - yoke (Used before tractor serial no. 7104626)

2шт.

54

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, , used with 71673 only 1/4" x 1 1/2", Type E

2шт.

55

D30397

X

PIN - yoke (Used on tractor serial no. 7104626 and after) When stock is exhausted use D36998 pin for service

2шт.

D36998

PIN ASSY.

PIN - yoke

2шт.

56

D25279

SNAP RING,M35, Int

RING - retaining (Used with D30397 only)

2шт.

57

R21441

SPROCKET - drive (Early production) Use D36170 sprocket for service

2шт.

See part number cast or stamped on sprocket for identification.

1шт.

R15887

SPROCKET - drive (Late production) Use D36170 sprocket for service

2шт.

See part number cast or stamped on sprocket for identification.

1шт.

58

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- drive sprocket

14шт.

59

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" - 16 NF)

14шт.

60

R20358

DISC - sprocket (Mining special)

4шт.
