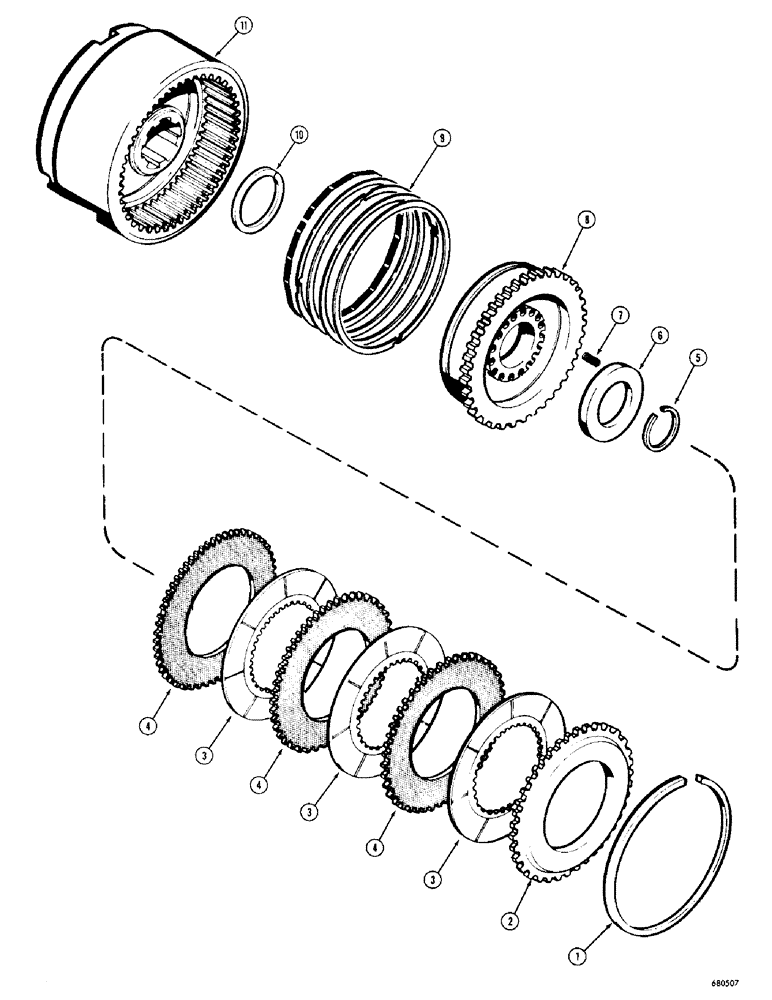

Запчасти Case 1000D (122) - A50289 HYDRAULIC CLUTCH (04) - UNDERCARRIAGE

A50289

CLUTCH ASSEMBLY - hydraulic (Used on transmission serial no. 2129129 and after)

8шт.

1

30785

RING

- snap, backing plate

1шт.

2

A50030

PLATE

- backing

1шт.

3

A50029

PLATE

- clutch, sintered (Inner tooth)

3шт.

4

A50028

PLATE

- clutch, steel (Outer tooth)

3шт.

5

A27233

RING

- snap, spring retainer

1шт.

6

R11016

RETAINER

- spring

1шт.

7

R11015

SPRING

- piston

18шт.

8

A50186

PISTON

- clutch

1шт.

9

A50027

RING

KIT - seal, piston (Includes 4 rings and 1 expander)

1шт.

10

A50025

SEAL

- "O" ring, drum seal

1шт.

11

A50290

DRUM

- clutch

1шт.
