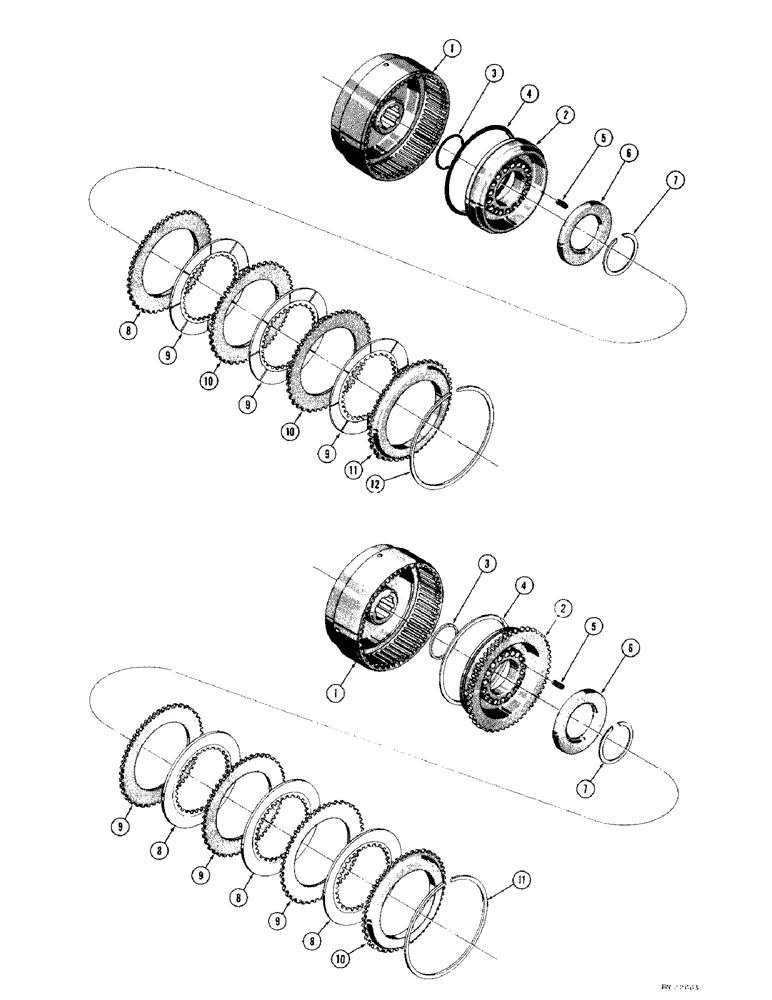

Запчасти Case 1000D (120) - R12724 HYDRAULIC CLUTCH, A50150 HYDRAULIC CLUTCH (04) - UNDERCARRIAGE

R12724

CLUTCH

ASSEMBLY - hydraulic (Used before transmission serial no. 2009806) When stock is exhausted use A50151 clutch for service

8шт.

1

R10726

CARRIER

- clutch

1шт.

2

R10725

PISTON

- clutch

1шт.

3

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.

4

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

5

R11015

SPRING

- clutch

18шт.

6

R11016

RETAINER

- spring

1шт.

7

R11014

RING, SNAP

RING - snap

1шт.

8

R13627

PLATE

- clutch

1шт.

9

R12710

X

DISC - clutch

3шт.

10

R12057

X

PLATE - clutch (When stock is exhausted, use A50028 plate for service)

2шт.

11

A50030

PLATE

- backing

1шт.

12

30785

RING

- snap

1шт.

A50150

CLUTCH

ASSEMBLY - hydraulic (Used from transmission serial no. 2009806, Serial Range: up-2129129)

8шт.

1

A50149

DRUM HUB

CARRIER - clutch, A50150 hydraulic

1шт.

2

A50186

PISTON

- clutch, A50150 hydraulic

1шт.

3

A50025

SEAL

RING - oil, A50150 hydraulic clutch

1шт.

4

A50027

RING

- oil (Includes 4 - seals and 1 - expander), A50150 hydraulic clutch

1шт.

5

R11015

SPRING

- clutch, A50150 hydraulic

18шт.

6

R11016

RETAINER

- spring, A50150 hydraulic clutch

1шт.

7

A27233

RING

- snap, A50150 hydraulic clutch

1шт.

8

A50029

PLATE

DISC - clutch (Sintered), A50150 hydraulic

3шт.

9

A50028

PLATE

- clutch (Steel), A50150 hydraulic

3шт.

10

A50030

PLATE

- backing, A50150 hydraulic clutch

1шт.

11

30785

RING

- snap, A50150 hydraulic clutch

1шт.
