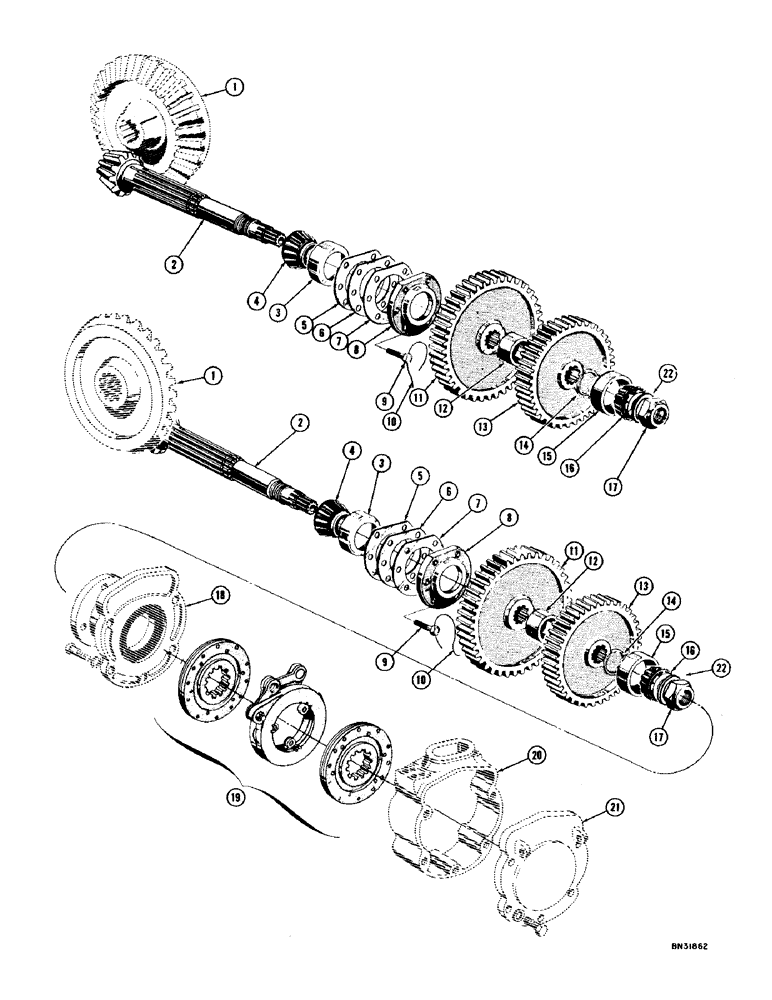

Запчасти Case 1000D (118) - BRAKE SHAFT PARTS (04) - UNDERCARRIAGE

A50364

GEAR SET

GEAR AND PINION SET - transmission and final drive

2шт.

1

NSS

NOT SOLD SEPARAT

GEAR - bevel, final drive

1шт.

2

NSS

NOT SOLD SEPARAT

PINION AND SHAFT - transmission

1шт.

3

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

2шт.

4

40436

ROLLER BEARING,1.9375" ID x 1.751"

CONE

2шт.

5

71396

SHIM

SPARE PART .010" thick

1шт.

6

71397

SHIM

.005" thick

1шт.

7

NLS

NO LONGER SERVICED

.003" thick

1шт.

8

70839

PLATE

Locking

2шт.

9

46954

CYLINDER END CAP,Hex, 3/8" - 24 x 1", Gr 5, Drilled Hd

HHCS - 3/8"- 24 NF x 1" (Drilled head) 70839 mounting

12шт.

10

R10831

ELECTRICAL WIRE

WIRE Tie

6шт.

11

NLS

NO LONGER SERVICED

Driven, low

2шт.

12

70833

SPARE PART

2шт.

13

70296

SPARE PART GEAR - driven, high

2шт.

14

49478

TABLE

#196, Ext

2шт.

15

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing

2шт.

16

40390

ROLLER BEARING,1.6875" ID x 1"

CONE

2шт.

17

70828

LOCK NUT

NUT - lock (1-5/8"-18 NF)

2шт.

18

REF

INSTRUCTION

MOUNT - brake (See Figure 124 ref. #1)

2шт.

19

R13983

X

BRAKE ASSEMBLY - hydraulic (See Figure 124 for breakdown) When stock is exhausted, use 1 - R13352 disc kit and 2 - A40796 brake disc for service

2шт.

20

REF

INSTRUCTION

HOUSING - brake (See Figure 124, ref. #17)

2шт.

21

REF

INSTRUCTION

COVER - brake (See Figure 124, ref. #18)

2шт.

22

R13347

WASHER

Pinion shaft nut

2шт.
