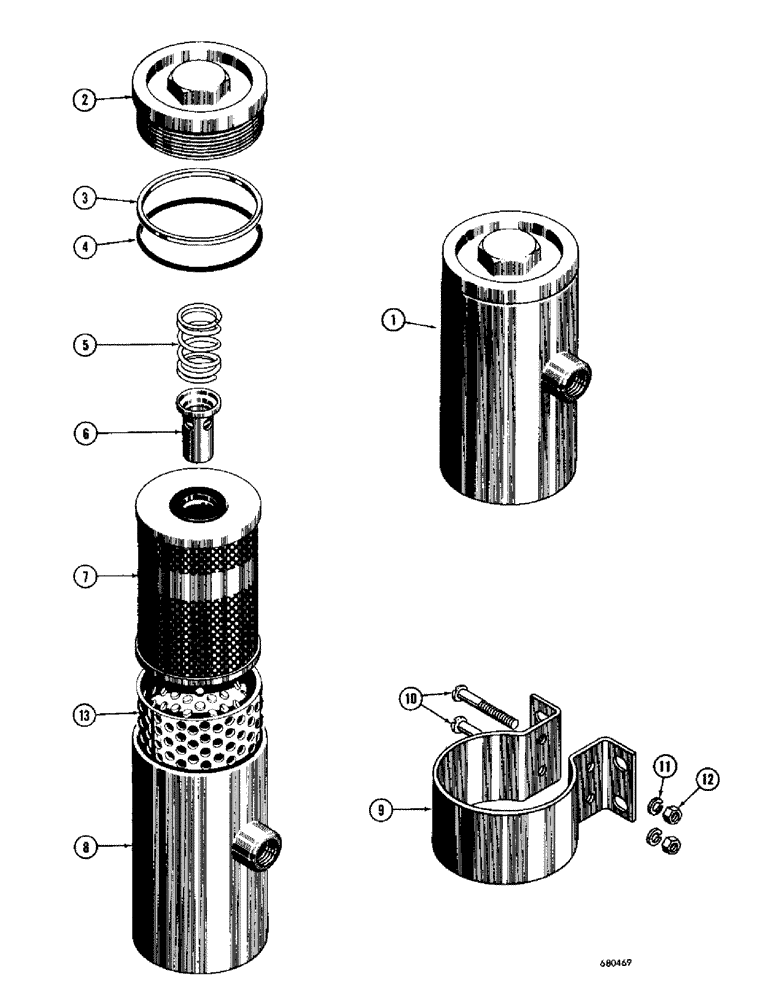

Запчасти Case 1000D (150) - D31210 TRANSMISSION OIL FILTER (03) - TRANSMISSION

1

D31210

FILTER

- transmission oil (Used on tractor serial no. 7104771 and after as original equipment and on prior models as replacement part)

1шт.

2

D31214

CAP

HEAD - filter

1шт.

3

D36095

BACK-UP RING

WASHER - back-up

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

5

D31212

SPRING

- valve retaining

1шт.

6

D37207

VALVE

- relief

1шт.

7

D31213

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

9

D31217

BRACKET

- filter mounting

1шт.

10

75-544

RHMS - 5/16" - 18 NC x 2-3/4" (D31217 mounting)

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

13

D36643

SCREEN - deflector

1шт.
