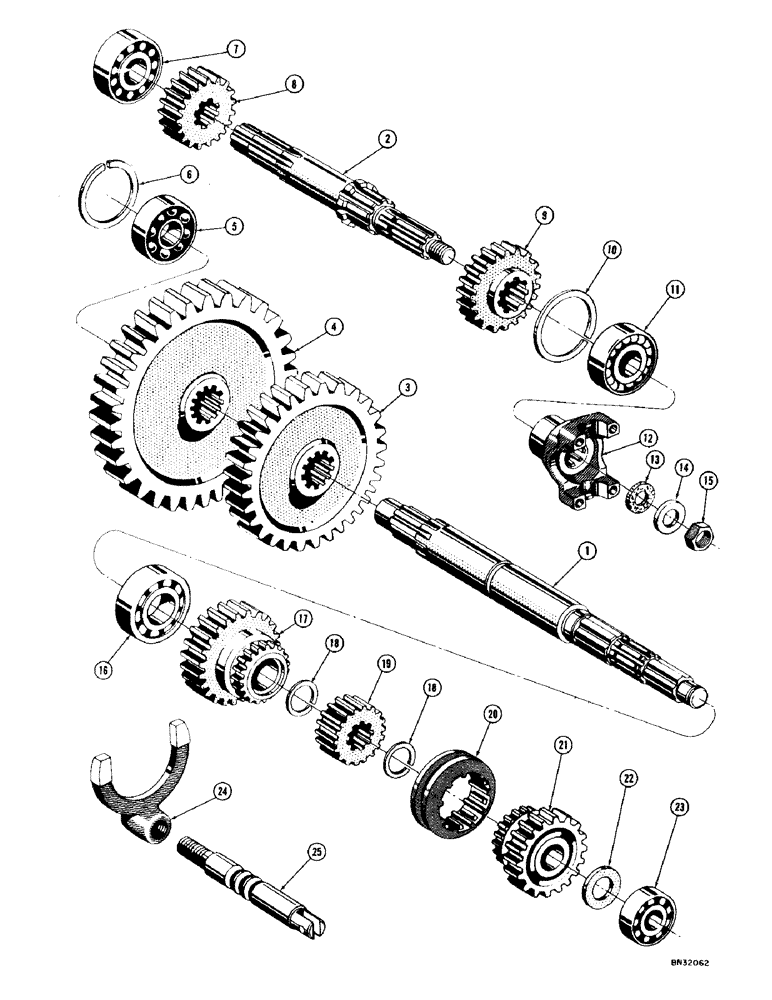

Запчасти Case 1000D (114) - MAIN DRIVE AND TWO SPEED SHIFT PARTS (03) - TRANSMISSION

1

R12647

SHAFT - drive

1шт.

2

R11416

SHAFT - input (Used before transmission serial no. 2010081) When stock is exhausted use A50171 for service

1шт.

A50171

X

SHAFT - input (Used on transmission serial no. 2010081 and after)

1шт.

3

70752

GEAR - forward

1шт.

4

70753

GEAR

- reverse

1шт.

5

40011

BEARING,1.378" ID x 3.1496" OD x 0.8268"

- ball

1шт.

6

49477

RING, SNAP

3.156", Int, #315

1шт.

7

R11638

BEARING

- roller

1шт.

8

R11421

X

GEAR - drive low

1шт.

9

R11419

GEAR

- drive high

1шт.

10

R13804

RING

- snap

1шт.

11

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - ball

1шт.

12

R17992

YOKE - universal (Used before tractor serial no. 7104823)

1шт.

A50090

FORK

YOKE - universal (Used on tractor serial no. 7104823 and after)

1шт.

13

34395

SEALING WASHER

WASHER - cork

1шт.

14

32601

WASHER

- yoke retaining

1шт.

15

131-581

LOCK NUT,3/4"-16

NUT - lock (3/4" - 16 NF)

1шт.

16

40266

BEARING, ROLLER, CYL,1.5748" ID x 3.5432" OD x 0.9055"

- roller

1шт.

17

R13299

GEAR

- driven low

1шт.

18

R13338

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

19

R12646

HUB - clutch inner and high

1шт.

20

74279

X

COLLAR - shifter

1шт.

21

R13340

GEAR - driven high

1шт.

22

R12650

BUSHING

SPACER - input

1шт.

23

R11637

BEARING

- roller

1шт.

24

R13805

FORK

- shifter

1шт.

25

R11417

SHAFT

- shifter

1шт.
