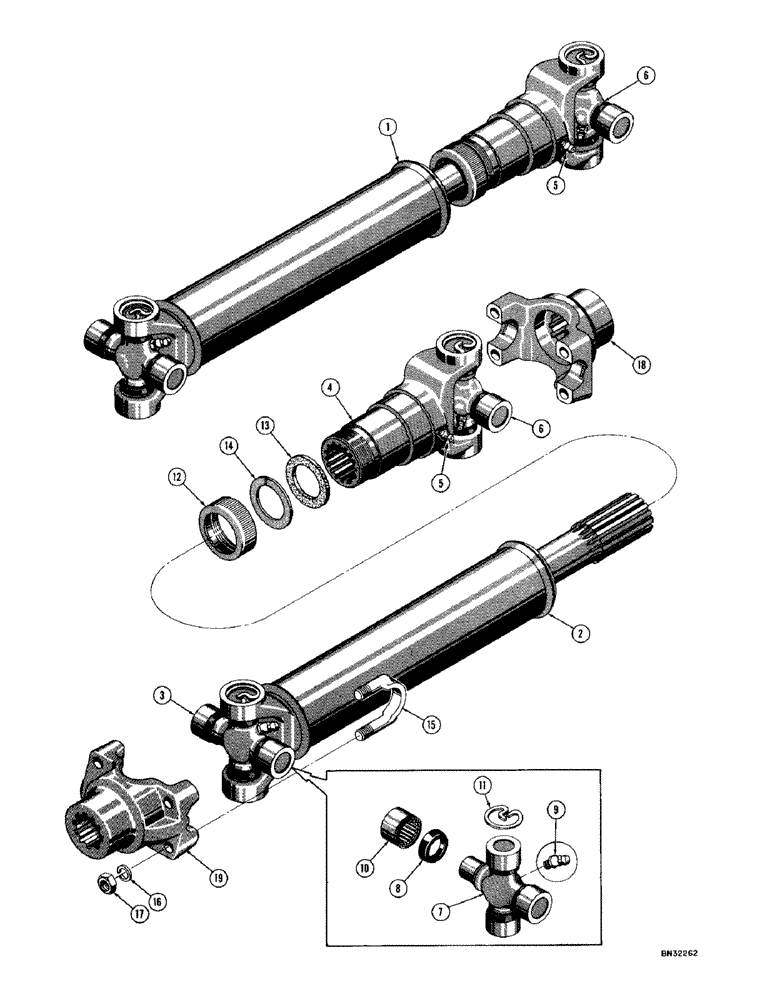

Запчасти Case 1000D (106) - R13272 DRIVESHAFT, USED BEFORE TRACTOR SERIAL NO. 7104823 (03) - TRANSMISSION

1

R13272

SHAFT

ASS'Y - universal

1шт.

2

R13998

SHAFT

SUB ASS'Y - universal

1шт.

NSS

NOT SOLD SEPARAT

SHAFT - universal

1шт.

3

R2713

BEARING ASSY

JOURNAL & BEARING KIT - universal (See ref. #6 for brakdown)

1шт.

4

R13989

LINKAGE YOKE

SLEEVE & YOKE ASS'Y - universal

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE & YOKE - universal

1шт.

5

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

1шт.

6

R2713

BEARING ASSY

JOURNAL & BEARING KIT - universal

1шт.

R13990

CROSS ASS'Y - universal

1шт.

7

NSS

NOT SOLD SEPARAT

CROSS - journal

1шт.

8

R13994

GASKET

4шт.

9

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degrees (1/4" - 28 NF)

1шт.

10

R13991

BEARING ASS'Y - universal

4шт.

11

R13992

RING, SNAP

RING - snap

2шт.

12

R13995

X

CAP - dust

1шт.

13

R13997

WASHER

- cork

1шт.

14

R13996

WASHER

- steel

1шт.

R13345

BOLT

"U" BOLT ASS'Y - universal

4шт.

15

NSS

NOT SOLD SEPARAT

"U" BOLT - universal

1шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- regular SF hex. (3/8" - 24 NF)

2шт.

18

R21481

YOKE

- universal, torque converter end (See Figure 96, ref. #32)

1шт.

19

R17992

YOKE - universal, transmission end (See Figure 114, ref. #12)

1шт.
