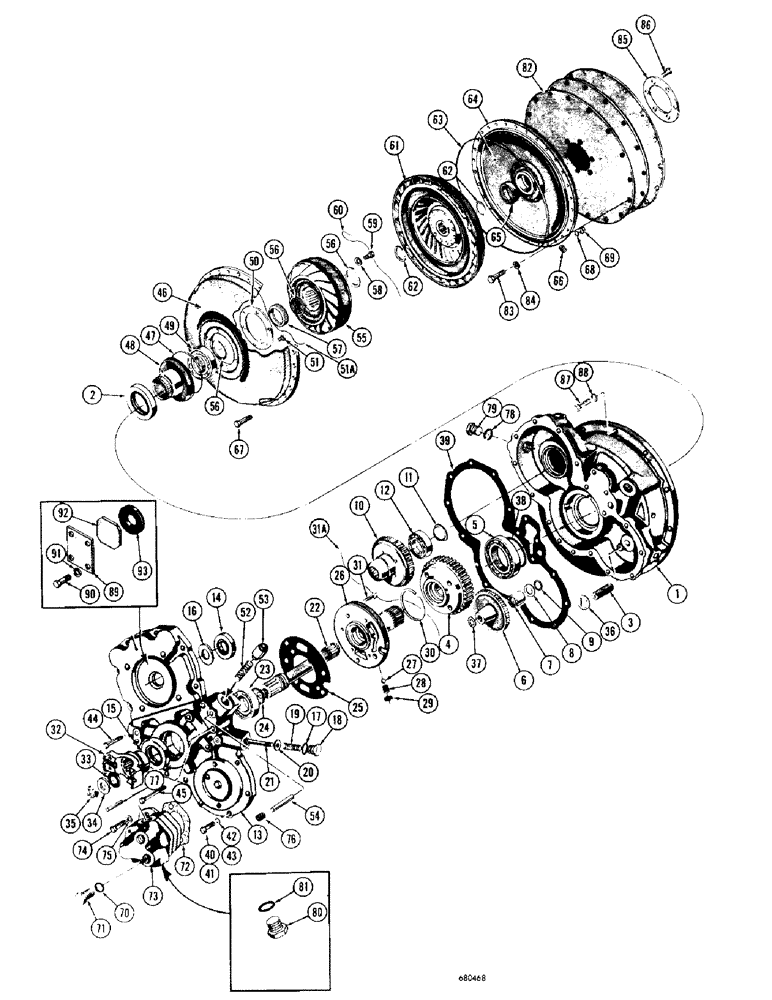

Запчасти Case 1000D (100) - D31857 TORQUE CONVERTER (03) - TRANSMISSION

D31857

TORQUE CONVERTER ASS'Y - complete (Used on tractor serial no. 7104823 and after)

1шт.

NSS

NOT SOLD SEPARAT

HOUSING AND COVER ASS'Y - converter

1шт.

R21459

HOUSING ASS'Y - converter

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - converter

1шт.

2

R21466

SEAL

- oil

1шт.

3

R21465

SHAFT - pump driven gear

1шт.

R21460

GEAR

ASS'Y - pump drive

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - pump drive

1шт.

5

K1435

BEARING

- ball

1шт.

R21461

GEAR ASS'Y - converter pump driven

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - pump driven

1шт.

7

R22118

BEARING

- roller

1шт.

8

R22120

SNAP RING,1.312", Int, #131

Ring, Snap, 1.312", Int, #131

1шт.

9

R22119

WASHER

- thrust

1шт.

R21462

GEAR ASS'Y - equipment pump driven

1шт.

10

R21470

GEAR

- pump driven

1шт.

11

R21471

BAFFLE - pump driven gear

1шт.

12

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball

1шт.

NSS

NOT SOLD SEPARAT

COVER ASS'Y - converter housing

1шт.

R21472

COVER ASS'Y - converter housing

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - converter housing

1шт.

14

R21483

SEAL

- oil

1шт.

15

17431

OIL SEAL

- oil

1шт.

16

R22121

WASHER

- thrust

1шт.

17

NLS

NO LONGER SERVICED

- annular

1шт.

R21476

VALVE

ASS'Y - regulator

1шт.

18

R21520

SCREW - valve retainer

1шт.

19

R21521

SPRING

- regulator valve

1шт.

20

R21522

WASHER - regulator valve

1шт.

21

R21523

PIN - guide, regulator valve

1шт.

R21477

SHAFT ASS'Y - turbine output

1шт.

22

R21484

SHAFT

- turbine output

1шт.

23

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball

1шт.

24

R21485

RING

- piston

1шт.

25

R21478

GASKET

- collector ring

1шт.

26

R22715

RING ASS'Y - collector

1шт.

NSS

NOT SOLD SEPARAT

RING - collector

1шт.

27

211-11

BALL,3/8" Dia

- . 3/8" Dia

1шт.

28

31220

VALVE SPRING

SPRING

1шт.

29

31236

RETAINER - spring

1шт.

30

R21480

RING

- piston

1шт.

31

47641

SET OF BELTS

BOLT - place, 5/16"-18 NC x 1-1/4" (For service, use 6 - D40779 bolts and 1 - D41314 lock wire)

6шт.

D40779

BOLT

- drilled head, 5/16" - 18 NC x 1-1/4"

6шт.

31a

D41314

LOCK WIRE - bolt, 22" long

1шт.

32

D31858

YOKE

- universal

1шт.

33

R21482

WASHER

- cork

1шт.

34

17438

WASHER

- plain

1шт.

35

131-581

LOCK NUT,3/4"-16

NUT - lock (3/4" - 16 NF)

1шт.

36

R22113

WASHER

- thrust

1шт.

37

R22114

WASHER

- thrust

1шт.

38

R21444

O-RING

SEAL - "O" ring

1шт.

39

R21464

GASKET

- converter cover

1шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (R21472 mounting)

7шт.

41

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (R21472 mounting)

6шт.

42

92-6

LOCK WASHER,3/8"

12шт.

43

92-7

LOCK WASHER,7/16"

6шт.

44

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

45

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

3шт.

R21526

IMPELLER

ASS'Y - converter

1шт.

46

NSS

NOT SOLD SEPARAT

IMPELLER - converter (Order 1 - R21526 for service)

1шт.

47

R21487

O-RING

SEAL - "O" ring

1шт.

48

NSS

NOT SOLD SEPARAT

HUB - impeller (Order 1 - R21526 for service)

1шт.

49

W10100S

BEARING

- ball

1шт.

50

R21489

PLATE - bearing retainer

1шт.

51

R21490

BOLT

- place, 5/16" - 24 NF x 7/8" (For service, use 6 - D41313 bolts and 1 - D41314 lock wire)

6шт.

D41313

BOLT - drilled head, 5/16" - 24 NF x 7/8"

6шт.

51a

D41314

LOCK WIRE - bolt, 22" long

1шт.

52

R23163

SPRING

- regulator valve

1шт.

53

R22691

VALVE

- regulator

1шт.

54

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

55

R21445

STATOR

- converter

1шт.

56

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining

3шт.

57

D35657

SPACER - stator

1шт.

58

D33169

WASHER - retaining

4шт.

59

D33168

SCREW - special, washer retaining

4шт.

60

D33170

WIRE - lock

1шт.

61

R21446

TURBINE

ASSEMBLY - converter

1шт.

62

R21447

RING

- retaining

2шт.

63

R14063

O-RING

SEAL - "O" ring, square

1шт.

17410

X

SEAL - "O" ring, round (Order R14063 for service)

1шт.

R21448

COVER ASSEMBLY - converter

1шт.

64

NSS

NOT SOLD SEPARAT

COVER - converter

1шт.

65

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 in ID

1шт.

66

R22692

X

PLUG - drain (1/4" - 18 NPT)

1шт.

67

17412

BOLT

- special, 5/16" - 24 NF x 1-5/16"

30шт.

68

92-5

LOCK WASHER,5/16"

30шт.

69

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

30шт.

70

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

71

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

72

R21449

GASKET

- converter pump

1шт.

73

D30100

PUMP

ASSEMBLY - converter (See Figure 104 for breakdown)

1шт.

74

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(D30100 mounting) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

75

92-6

LOCK WASHER,3/8"

2шт.

76

17415

PLUG

- pipe, 1/8" NPT

1шт.

77

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

78

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

79

273916

PLUG,Hex, 1-5/16" - 12 ORB

Drain Hex Hd, 1 5/16"-12 ORB

1шт.

80

218-5159

PLUG,1-3/16" - 12 ORB

- "O" ring type

1шт.

81

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

82

R14953

PLATE

- drive

3шт.

83

R14979

SCREW

BOLT - special, 3/8" - 16 NC x 3/4" (R14953 mounting)

16шт.

84

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- drive plate

16шт.

85

R14952

RING - reinforcement

1шт.

86

R14980

BOLT - special, 7/16" - 14 NC x 3/4" (R14952 mounting)

6шт.

87

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(D31857 mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

88

92-6

LOCK WASHER,3/8"

12шт.

89

R21600

PLATE - cover, hydraulic pump hole (Drawbar models only)

1шт.

90

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(R21600 mounting) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

91

92-8

LOCK WASHER,1/2"

4шт.

92

R22656

PLATE - back-up

1шт.

93

R22634

WASHER

- rubber

2шт.
