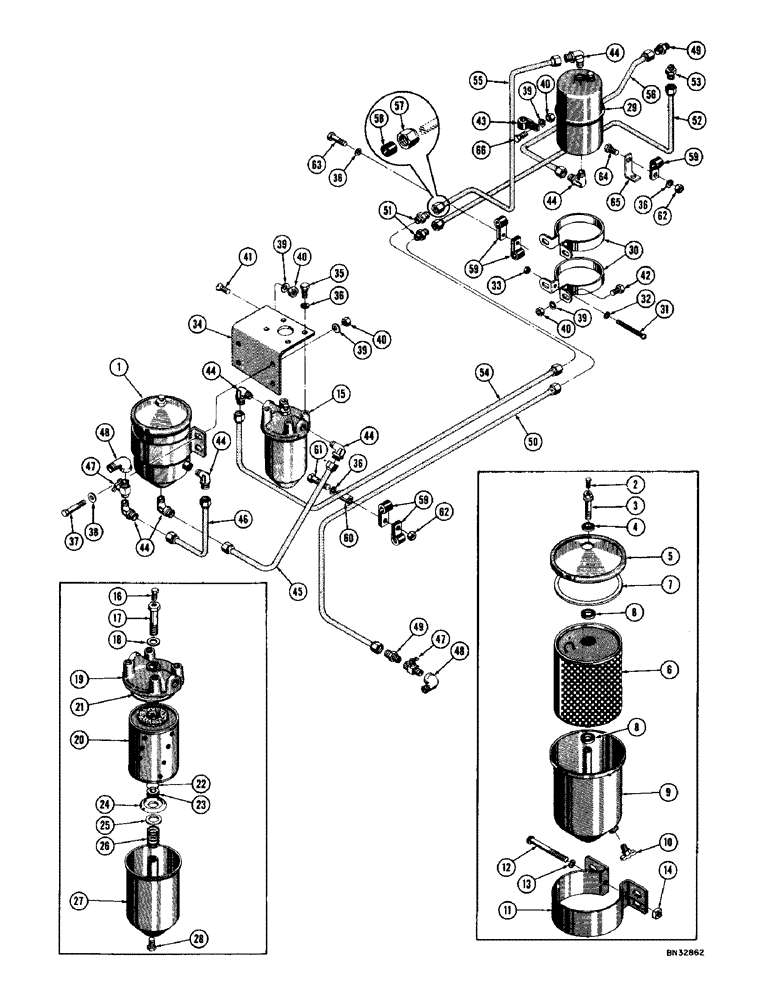

Запчасти Case 1000D (060) - FUEL LINES AND FILTERS (02) - FUEL SYSTEM

1

71243

FILTER

- fuel primary

1шт.

2

73502

BOLT

SCREW - bleeder

1шт.

3

73501

SCREW

BOLT - vent

1шт.

4

10054

COLLAR

GASKET - vent bolt

1шт.

5

34850

CYLINDER

COVER - fuel filter

1шт.

6

NLS

NO LONGER SERVICED

CARTRIDGE - fuel filter

1шт.

7

73500

GASKET - filter cover

1шт.

8

73497

PLATE

GASKET - filter cartridge

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

10

R19094

DRAINCOCK - fuel

1шт.

11

73499

SPRING

STRAP - filter mounting

1шт.

12

73505

BLOCK

BOLT

1шт.

13

73504

GEAR

WASHER - lock

1шт.

14

73503

NUT - hex.

1шт.

15

G11067

FILTER

- fuel secondary

1шт.

16

G46021

PLUG

SCREW - bleeder

1шт.

17

G46088

BOLT - vent

1шт.

18

G46017

GASKET - vent bolt

1шт.

19

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

20

G45006

FILTER, ELEMENT

CARTRIDGE - fuel filter

1шт.

21

G46005

GASKET

- head

1шт.

22

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

23

G46019

GROMMET - sealing plate

1шт.

24

G46018

PLATE - sealing

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - spring retaining

1шт.

26

G46020

SPRING - filter

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

28

G46015

PLUG - drain

1шт.

29

A27983

FILTER

- fuel, final stage (When stock is exhausted, use A57228 filter for service)

1шт.

30

30134

BRACKET - final stage fuel filter mounting

2шт.

31

30276

SCREW - filter mounting

1шт.

32

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

33

129-37

NUT,#10-32

- hex. (#8 - 36 NF)

1шт.

34

74128

BRACKET - primary and secondary fuel filter mounting

1шт.

35

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

36

92-6

LOCK WASHER,3/8"

7шт.

37

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

38

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

39

92-5

LOCK WASHER,5/16"

13шт.

40

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

14шт.

41

74-514

FHMS - 5/16" - 24 NF x 7/8"

4шт.

42

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

43

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube (R21353 mounting)

1шт.

44

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- flex tube (3/8" tube x 1/4" NPT) Includes ref. #57 flex tube nut and ref. #58 sleeve

7шт.

45

R21351

TUBE - primary to secondary filter

1шт.

46

R21349

TUBE - fuel tank to primary filter

1шт.

47

217-94

SHUT-OFF VALVE

VALVE - fuel shut-off

2шт.

48

222-412

ELBOW - 90 degree street (1/4" NPT)

2шт.

49

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - flex tube (3/8" tube x 1/4" NPT) Includes ref. #57 flex tube nut and ref. #58 sleeve

2шт.

50

R21354

TUBE - rear fuel return

1шт.

51

222-5

FITTING,5/8"-24 Flex Tube

UNION - flex tube (3/8" tube x 1/4" NPT) Includes two ref. #57 flex tube nut and two ref. #58 sleeve

2шт.

52

R21350

TUBE - front fuel return

1шт.

53

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

CONNECTOR - flex tube (3/8" tube x 1/8" NPT) Includes ref. #57 flex tube nut and ref. #58 sleeve

1шт.

54

R21352

TUBE - secondary filter to final filter

1шт.

55

R21353

TUBE - secondary filter to final filter

1шт.

56

R21355

TUBE - final filter to fuel injection pump

1шт.

57

222-114

NUT,5/8"-24

NUT - flex tube (3/8")

14шт.

58

222-104

SLEEVE,3/8" Tube

- flex tube (3/8")

14шт.

59

49845

CLAMP

- tube (Fuel line mounting)

5шт.

60

71029

SPACER - clamp

1шт.

61

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

HHCS - 3/8" - 24 NF x 2"

1шт.

62

25-116

NUT,Hex, 3/8"-24, G5

- regular SF hex (3/8" - 24 NF)

2шт.

63

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4"

1шт.

64

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8" - 24 NF x 1-1/2"

1шт.

65

R21854

BRACKET - fuel line

1шт.

66

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16" - 24 NF x 1-1/2"

1шт.
