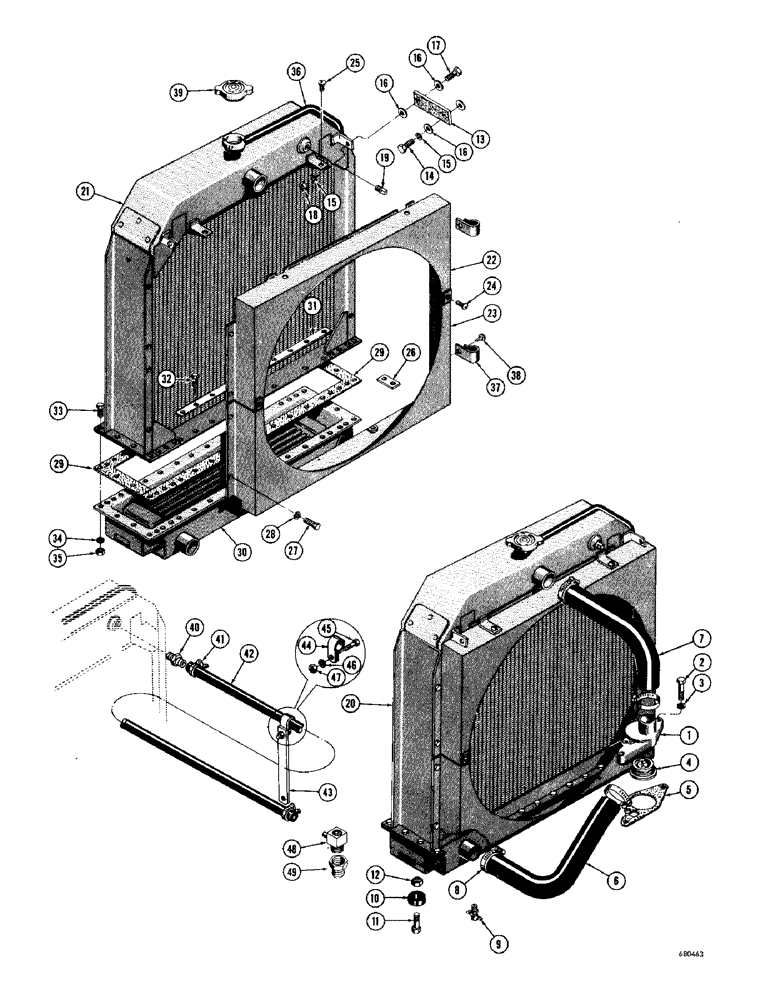

Запчасти Case 1000D (068) - D29694 RADIATOR (01) - ENGINE

1

71835

INSERT

ELBOW - cylinder water outlet

1шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(71835 mounting) Hex, 3/8"-16 x 1 3/4", G5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

10275

THERMOSTAT

ASSEMBLY

1шт.

5

10673

FITTING

GASKET - water outlet elbow

1шт.

6

R20472

HOSE ASSY.

HOSE - radiator outlet

1шт.

7

70628

HOSE

- radiator inlet

1шт.

8

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

9

217-92

COCK

DRAINCOCK - radiator water

1шт.

10

70198

WASHER

- vibration

2шт.

11

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2"

2шт.

12

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock (1/2" - 20 NF) ESSNA

2шт.

13

R22325

STRAP

- radiator support, 3/8" thick - 2" wide x 5" long (When stock is exhausted, order D35108 for service)

2шт.

D35108

STRAP

- radiator support, 3/8" thick - 1-1/2" wide 5" long

2шт.

14

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- plain

8шт.

17

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4"

2шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

19

221-21

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, extended square head (1/4" NPT)

1шт.

20

D29694

RADIATOR ASSEMBLY - used on tractor serial no. 7104001 and up to serial no. 7104780; also used on tractor serial no. 7104782, 7104783, and 7104784 (When stock is exhausted use D31846 for service)

1шт.

21

NSS

NOT SOLD SEPARAT

CORE AND TANK ASSEMBLY - top (Order D31846 radiator for service)

1шт.

22

R22018

SHROUD - top

1шт.

23

R22019

SHROUD - bottom

1шт.

24

75-46

SCREW

RHMS - 1/4" - 20 NC x 3/8"

2шт.

25

75-46

SCREW

RHMS - 1/4" - 20 NC x 3/8"

4шт.

26

R22013

CLIP - shroud mounting

2шт.

27

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

8шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

29

72773

FLEXIBLE HOSE

- core

2шт.

30

R22014

BOTTOM TANK AND OIL COOLER ASSEMBLY

1шт.

31

R22015

WASHER - core

2шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

32шт.

33

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

34

92-5

LOCK WASHER,5/16"

40шт.

35

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

40шт.

36

D29695

HOSE - overflow

1шт.

37

R22017

CLIP - hose mounting

2шт.

38

R18946

SCREW - drive, #20 x 3/8"

2шт.

39

D25826

CAP

- pressure relief, radiator

1шт.

40

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

STEM - hose, straight

1шт.

41

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

2шт.

42

D31825

HOSE -, Serial Range: engine-radiator

1шт.

43

D31826

STRAP - hose mounting

1шт.

44

49768

CLIP

- hose

1шт.

45

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(49768 mounting) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

48

D32231

FITTING - special

1шт.

49

221-60

TUBE

REDUCER BUSHING - pipe, 1/2" x 3/4" (If used)

1шт.
