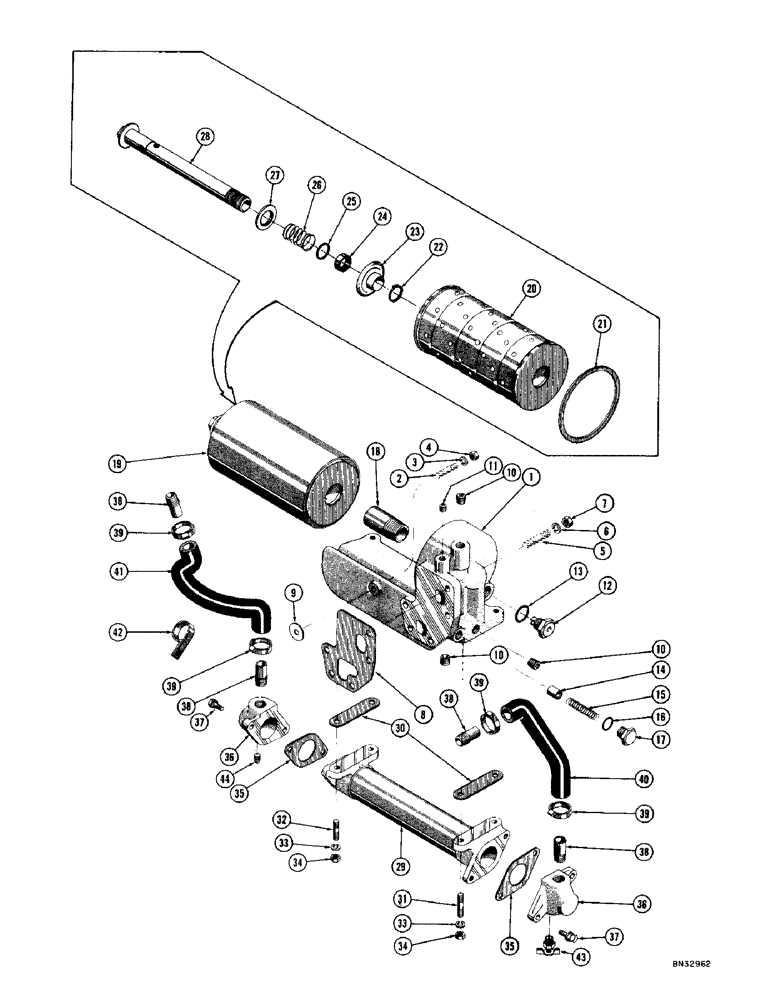

Запчасти Case 1000D (058) - ENGINE LUBE OIL SYSTEM (01) - ENGINE

1

R14473

BASE - oil filter & cooler

1шт.

2

10083

STUD - filter base to cylinder block

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

25-106

NUT,3/8"-16, G5

- regular SF hex. (3/8" - 16 NC)

1шт.

5

R11716

STUD - filter base to cylinder block

5шт.

6

92-7

LOCK WASHER,7/16"

5шт.

7

47863

SPRING CUP

NUT - hex. (7/16" - 14 NC)

5шт.

8

R14455

GASKET - filter base to cylinder block

1шт.

9

R14460

GASKET - washer, filter base to cylinder block

1шт.

10

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- pipe, socket head, 3/8" NPT

3шт.

11

72626

PISTON

PLUG - pipe, socket head (1/4" NPT)

1шт.

12

R11715

PLUG - magnetic

1шт.

13

A30059

GASKET

- magnetic plug

1шт.

14

10421

VALVE - by-pass

1шт.

15

R14462

SPRING - by-pass valve

1шт.

16

10424

HARNESS

GASKET - by-pass valve plug

1шт.

17

10423

THUMB SCREW

PLUG - by-pass valve

1шт.

18

R11711

ADAPTER -, Serial Range: filter-base

1шт.

19

R14437

FILTER ASS'Y - engine lube oil

1шт.

20

35034

FILTER, ELEMENT

CARTRIDGE - filter

1шт.

21

R13228

GASKET

- filter

1шт.

22

R15934

RING - retaining

1шт.

23

R15932

ADAPTER - filter

1шт.

24

R15933

SEAL - oil

1шт.

25

R15931

WASHER - oil filter

1шт.

26

R15930

SPRING - oil filter

1шт.

27

R15929

SEAL - dyna

1шт.

28

R15928

BOLT - center

1шт.

29

R14465

COOLER - oil

1шт.

30

R14457

GASKET - oil, Serial Range: cooler-base

2шт.

31

R14466

STUD - oil cooler to filter base (3/8" - 16 NC x 1-5/8") 3/4" and 5/8" thread length, 5/8" end into filter base

1шт.

32

30329

STUD - oil cooler to filter base (3/8" - 16 NC x 1-5/8") 5/8" and 1/2" thread length, 1/2" end into filter base

3шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- regular SF hex. (3/8" - 16 NC)

4шт.

35

R14456

GASKET

- elbow to oil cooler

2шт.

36

R14470

ELBOW - oil cooler

2шт.

37

R14472

SCREW & LOCKWASHER ASS'Y

4шт.

38

R13040

NIPPLE - pipe, 1/2" NPT

4шт.

39

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

40

R14468

HOSE

- oil cooler to cylinder block

1шт.

41

R14469

HOSE ASSY.

HOSE - oil cooler to water pump adapter

1шт.

42

R22754

CLAMP - hose, oil cooler to water pump adapter

1шт.

43

11073

X

DRAINCOCK - oil cooler (Rear elbow)

1шт.

44

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, extended square head (1/4" NPT)

1шт.
