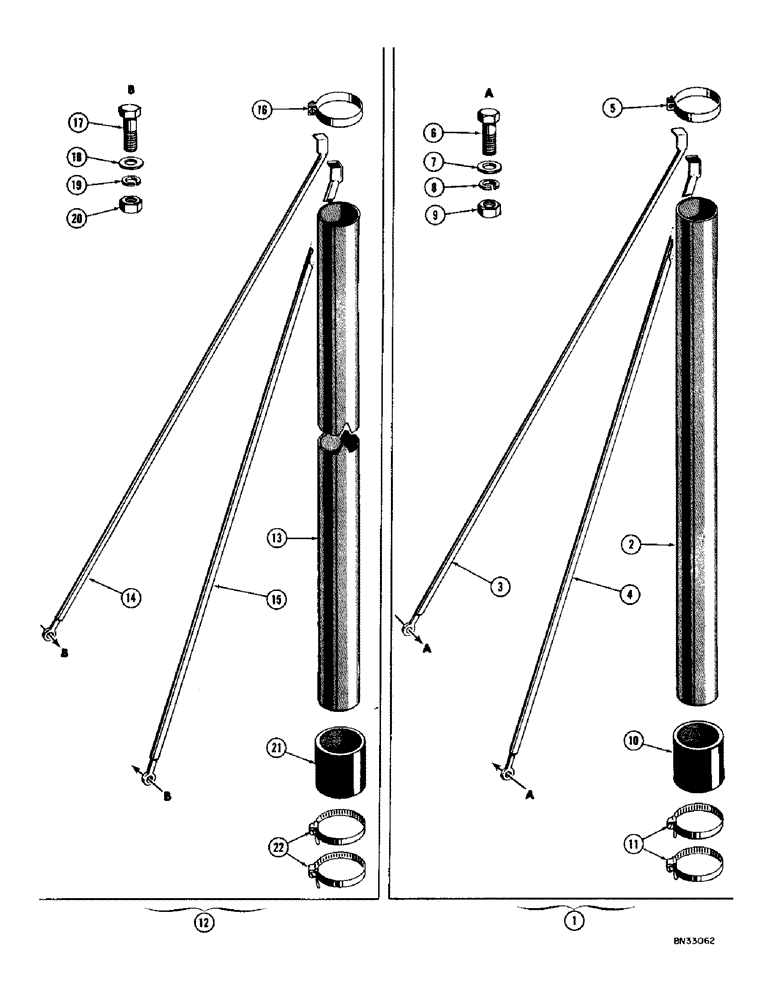

Запчасти Case 1000D (056) - AIR INLET EXTENSIONS (01) - ENGINE

1

R3697

EXTENSION - 36" air inlet (Optional) Machinery item

1шт.

2

R19036

TUBE - 36" air inlet extension

1шт.

3

R19594

BRACE

- R.H.

1шт.

4

R19593

BRACE - L.H.

1шт.

5

R19604

CLAMP

- brace mounting

1шт.

6

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4"

2шт.

7

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- regular SF hex. (3/8" - 24 NF)

2шт.

10

R19030

HOSE

- air inlet extension

1шт.

11

R19035

CLAMP - hose

2шт.

12

R3698

EXTENSION - 72" air inlet (Optional) Machinery item

1шт.

13

R19037

TUBE

- 72" air inlet extension

1шт.

14

R19594

BRACE

- R.H.

1шт.

15

R19593

BRACE - L.H.

1шт.

16

R19604

CLAMP

1шт.

17

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF - 1-1/4"

2шт.

18

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- regular SF hex. (3/8" - 24 NF)

2шт.

21

R19030

HOSE

- air inlet extension

1шт.

22

R19035

CLAMP - hose

2шт.
