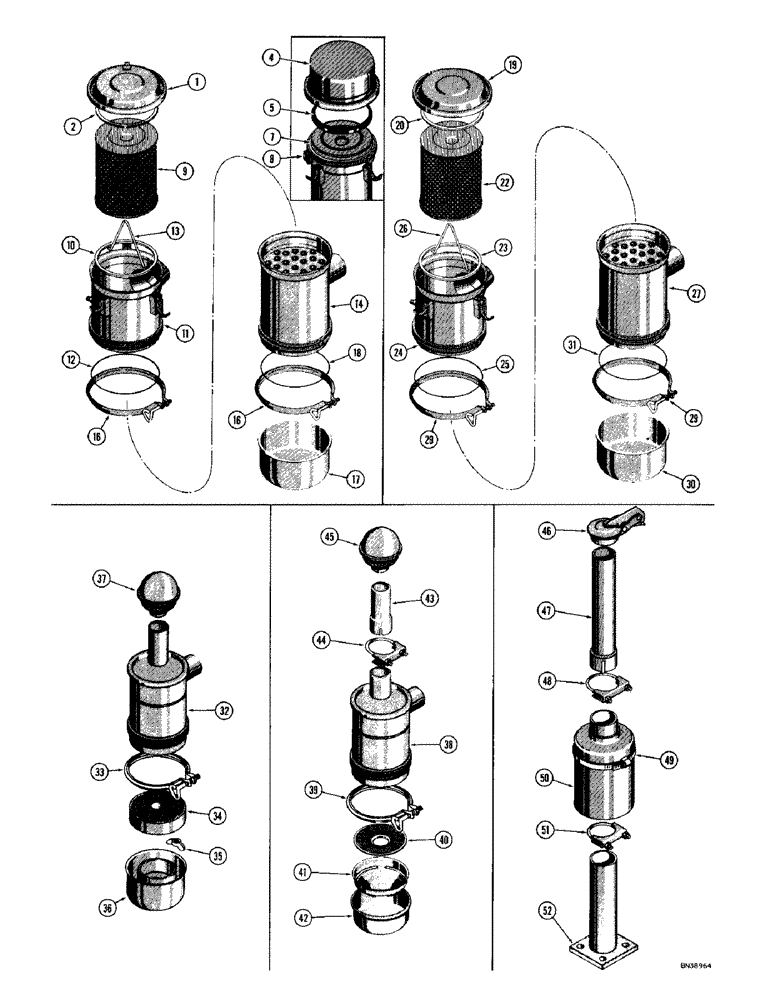

Запчасти Case 1000D (052) - R16756 AIR CLEANER, D32720 AIR CLEANER, R21550 AIR CLEANER (01) - ENGINE

R16756

X

AIR CLEANER - dry type

1шт.

1

R21175

COVER - air cleaner (Used before tractor serial no. 7104865) Some air cleaners on tractors prior to serial no. 7104865 have been converted to later style (See illustration for identification) Order D12278 kit for service

1шт.

2

R21184

GASKET

- cover

1шт.

3

RESERVED

1шт.

4

D32622

COVER - air cleaner (Used on tractor serial no. 7104865 and after)

1шт.

Part of P/N D12278 Service Kit

1шт.

5

R21184

GASKET

- cover

1шт.

6

RESERVED

1шт.

7

D32624

BAND - air cleaner, inner (Used with D32622 cover only)

1шт.

Part of P/N D12278 Service Kit

1шт.

8

D32623

BAND ASSEMBLY - air cleaner, outer (Used with D32622 cover only)

1шт.

Part of P/N D12278 Service Kit

1шт.

D32625

FILTER, ELEMENT

ELEMENT KIT - air cleaner

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - air cleaner (Order D32625 for service)

1шт.

10

R21184

GASKET

- cover

1шт.

11

R21177

BODY - air cleaner

1шт.

12

R21187

GASKET

- body

1шт.

13

R21187

GASKET

GUIDE - element

1шт.

14

R21179

DONACLONE ASSEMBLY - air cleaner

1шт.

15

R21180

CAP

- shipping only (Not illustrated)

1шт.

16

R21391

CLAMP

- -air cleaner

2шт.

17

R21182

CUP - air cleaner

1шт.

18

R21183

O-RING

GASKET - air cleaner

2шт.

D12278

KIT service, Includes Rsf., 4, 7 ands 8

1шт.

D32720

AIR CLEANER - dry type (Used on tractor serial no. 7105401 and after)

1шт.

19

D33807

COVER - air cleaner, D32720

1шт.

20

R21184

GASKET

- cover, D32720 air cleaner

1шт.

21

RESERVED

1шт.

D32625

FILTER, ELEMENT

ELEMENT KIT - air cleaner, D32720

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT - air cleaner, D32720

1шт.

23

R21184

GASKET

- cover, D32720 air cleaner

1шт.

24

D33808

BODY - air cleaner, D32720

1шт.

25

R21187

GASKET

- body, D32720 air cleaner

1шт.

26

R21178

GUIDE - element, D32720 air cleaner

1шт.

27

R21179

DONACLONE ASSEMBLY - air cleaner, D32720

1шт.

28

R21180

CAP

- shipping only (Not illustrated), D32720 air cleaner

1шт.

29

R21391

CLAMP

- air cleaner, D32720

2шт.

30

R21182

CUP - air cleaner, D32720

1шт.

31

R21183

O-RING

GASKET - air cleaner, D32720

2шт.

R21550

AIR CLEANER - oil bath type (Used before tractor serial no. 7105693) Order 1 - D34630 air cleaner, 1-A9955 clamp and 1 - D34631 stack for service (See Ref. 38)

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - air cleaner, R21550

1шт.

33

R21990

CLAMP - air cleaner, R21550

1шт.

34

R21992

SCREEN - air cleaner, R21550

1шт.

35

129-404

WING NUT,1/4"-20

NUT - wing (1/4" - 20 NC), R21550 air cleaner

2шт.

36

R21991

CUP - oil, R21550 air cleaner

1шт.

37

A10872

CAP

- air cleaner, R21550

1шт.

D34630

AIR CLEANER - oil bath type (Used on tractor serial no. 7105693 and after)

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - air cleaner, D34630

1шт.

39

A24175

CLAMP - air cleaner, D34630

1шт.

40

A24174

SCREEN - air cleaner, D34630

1шт.

41

A24176

CUP - inner, D34630 air cleaner

1шт.

42

A24173

CUP - outer, D34630 air cleaner

1шт.

43

D34631

TUBE

STACK - air cleaner, D34630

1шт.

44

A19955

CLAMP

- air cleaner, D34630

1шт.

45

A10872

CAP

- air cleaner, D34630

1шт.

46

D33884

CAP

- rain, spark arresting muffler

1шт.

47

D33883

TUBE

EXHAUST TUBE - upper, spark arresting muffler

1шт.

48

A19955

CLAMP

- tube, spark arresting muffler

1шт.

49

NLS

NO LONGER SERVICED

STRAP, spark arresting muffler

1шт.

50

D33881

ARRESTER

SPARK ARRESTER - engine exhaust, muffler

1шт.

51

A13240

CLAMP,2-5/8" ID

spark arresting muffler

1шт.

52

D33877

EXHAUST TUBE - lower, spark arresting muffler

1шт.
