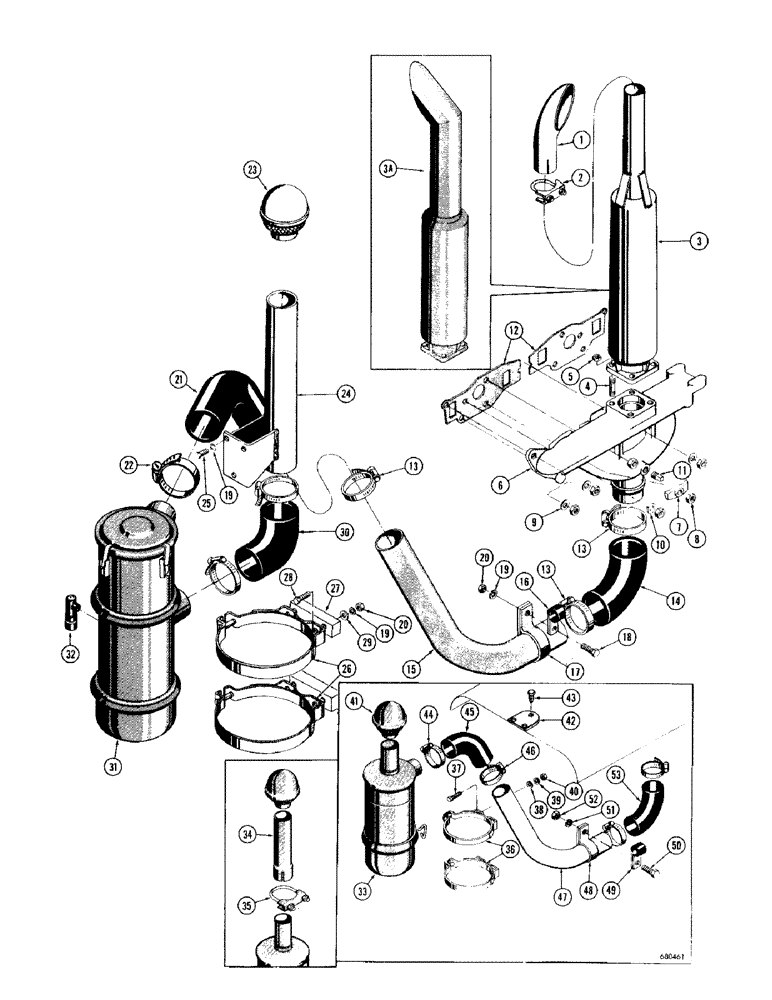

Запчасти Case 1000D (048) - EXHAUST SYSTEM AND AIR CLEANER (01) - ENGINE

1

R20143

PIPE CLAMP

PIPE - muffler (Used with D29460 muffler only)

1шт.

2

74768

X,2-1/2" ID

CLAMP - muffler pipe (Used with D29460 muffler only)

1шт.

3

D29460

MUFFLER

- exhaust (When stock is exhausted order D35766 muffler for service)

1шт.

3a

D35766

MUFFLER

- exhaust (Service replacement)

1шт.

4

R14669

STUD

- muffler to manifold, 1/2" - 13 NC x 1-15/16"

4шт.

5

R14386

NUT

- special (1/2" - 20 NF)

4шт.

6

NLS

NO LONGER SERVICED

MANIFOLD - intake and exhaust (When stock is exhausted use D44119 for service)

1шт.

D44119

TUBE ASSY.

MANIFOLD - intake and exhaust

1шт.

7

11101

GEAR

CRAB - manifold

4шт.

8

10452

SEALING RING

NUT - hex. (3/8" - 16 NC)

11шт.

9

11167

SPARE PART

WASHER - plain (3/8")

2шт.

10

11578

CLIP

WASHER - special, plain (3/8")

5шт.

11

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, manifold (1/4" square head)

1шт.

12

17483

GASKET

- manifold

2шт.

13

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

3шт.

14

71400

GASKET

ELBOW - hose

1шт.

15

R20507

TUBE - air, Serial Range: cleaner-manifold

1шт.

16

R22054

CLAMP

- tube

1шт.

17

R11405

CLAMP

- tube

1шт.

18

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16" - 24 NF x 1"

1шт.

19

92-5

LOCK WASHER,5/16"

7шт.

20

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

5шт.

21

R20508

ELBOW - hose, outlet (Used with R16756 air cleaner)

1шт.

D32718

FITTING

ELBOW - hose, outlet (Used with D32720 air cleaner)

1шт.

22

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

3шт.

23

A10872

CAP

- air cleaner

1шт.

24

R18737

TUBE - air cleaner intake

1шт.

25

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(R18737 mounting) Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

26

70973

BRACKET

CLAMP - air cleaner intake

2шт.

27

D32715

SPACER - clamp (Used with D32720 air cleaner only)

2шт.

28

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(70973 mounting) Used with R16756 air cleaner Hex, 5/16"-24 x 7/8", G5, Full Thd

4шт.

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(70973 mounting) Used with D32720 air cleaner Hex, 5/16"-24 x 1 3/4", G5

4шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

4шт.

30

R18733

X

ELBOW - hose, inlet (Used with R16756 air cleaner) When stock is exhausted order D32719 for service

1шт.

D32719

ELBOW UNION

ELBOW - hose, inlet (Used with D32720 air cleaner)

1шт.

31

R16756

X

AIR CLEANER - dry type (Used before tractor serial no. 7105401) When stock is exhausted order 1 - D32720 air cleaner, 1 - D32718 elbow, 1 - D32719 elbow, 4 - 14-528 capscrews and 2 - D32715 spacers for service (See Figure 52 for breakdown)

1шт.

D32720

AIR CLEANER - dry type (Used on tractor serial no. 7105401 and after) See Figure 52 for breakdown

1шт.

32

R21062

X

FILTER INDICATOR - air cleaner (When stock is exhausted order A17652 for service)

1шт.

D31186

X

FILTER INDICATOR - air cleaner (When stock is exhausted order A17652 for service)

1шт.

A17652

ELECTRICAL GAUGE

FILTER INDICATOR - air cleaner

1шт.

R4237

AIR CLEANER INSTALLATION - oil bath type (Optional) Machinery Item

1шт.

33

R21550

AIR CLEANER - oil bath type (Used before tractor serial no. 7105693) See page 52 for breakdown (When stock is exhausted order 1 - D34630 air cleaner, 1 - A19955 clamp and 1 - D34631 stack for service)

1шт.

D34630

AIR CLEANER - oil bath type (Used on tractor serial no. 7105693 and after)

1шт.

34

D34631

TUBE

STACK - air cleaner (Used with D34630 air cleaner only)

1шт.

35

A19955

CLAMP

- air cleaner stack - (Used with D34630 air cleaner)

1шт.

36

R21324

CLAMP - air cleaner mounting

2шт.

37

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

4шт.

38

95-6

WASHER,3/8"

- standard wrot ( I.D. x 7/16" O.D. x 5/64" thick) 3/8"

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

41

A10872

CAP

- air cleaner

1шт.

42

R21325

PLATE - cover

1шт.

43

187-985

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, #10 x 3/8"

3шт.

44

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

1шт.

45

R20508

ELBOW - hose

1шт.

46

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

3шт.

47

R20507

TUBE - air, Serial Range: cleaner-manifold

1шт.

48

R22054

CLAMP

- tube

1шт.

49

R11405

CLAMP

- tube

1шт.

50

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16" - 24 NF x 1"

1шт.

51

92-5

LOCK WASHER,5/16"

1шт.

52

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

53

71400

GASKET

ELBOW - hose

1шт.
