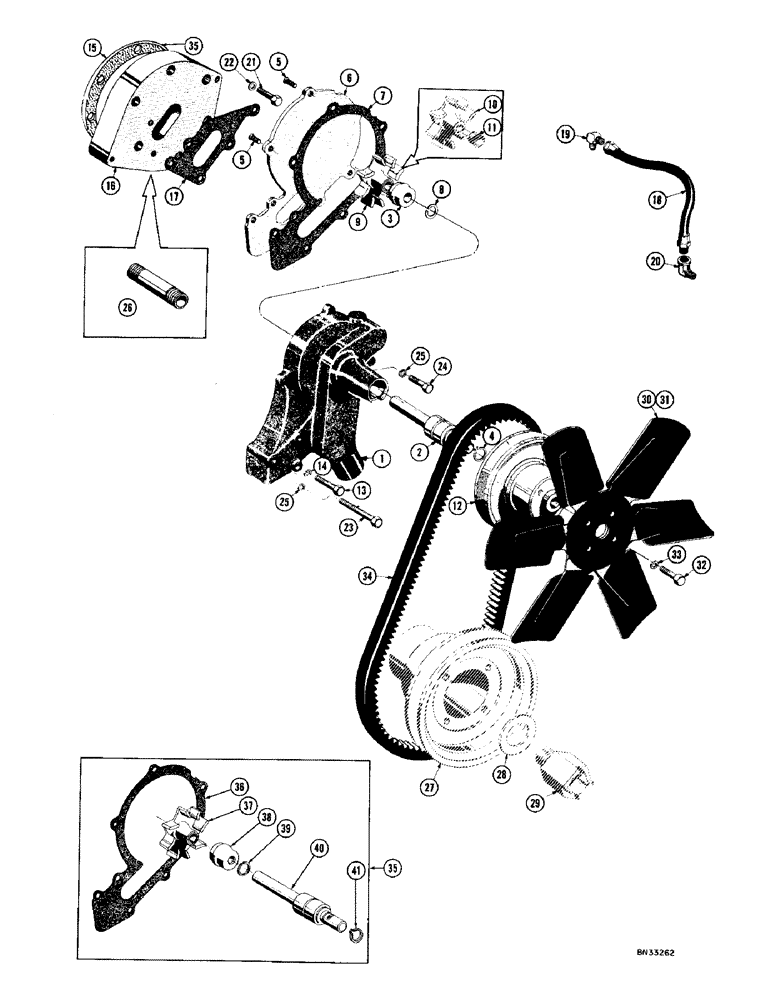

Запчасти Case 1000D (046) - WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE

R17910

WATER PUMP

& PULLEY ASSY

1шт.

R17908

SPARE PART Water

1шт.

1

R13471

SPARE PART BODY - water pump

1шт.

2

R17912

SHAFT

Water pump

1шт.

3

10503

SEAL ASSY.

Water pump

1шт.

4

R17913

RING, SNAP

RING SNAP

1шт.

5

10506

SCREW -, Serial Range: cover-body

4шт.

6

70858

WASHER

COVER - water pump

1шт.

7

70860

GASKET

Water pump, Serial Range: cover-body

1шт.

8

R13473

RING, SNAP

RING SNAP Bearing seat

1шт.

9

R13475

KIT

IMPELLER & INSERT ASSY - water pump

1шт.

10

NSS

NOT SOLD SEPARAT

IMPELLER - water pump

1шт.

11

NSS

NOT SOLD SEPARAT

INSERT - impeller

1шт.

12

NSS

NOT SOLD SEPARAT

HUB - water pump

1шт.

13

36596

HHCS - 3/8" - 16 NC x 2-1/8"

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

10680

PIPE FITTING

Adapter

1шт.

16

R14404

ADAPTER - water pump

1шт.

17

70859

GASKET

SPARE PART Water, Serial Range: pump-adapter

1шт.

18

70856

HOSE

ASSY - by-pass

1шт.

19

222-774

90 ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 3/8" NPT

Pipe, 3/8" NPT x 1/2" NPT

1шт.

20

71837

GASKET

SPARE PART ELBOW - 90 degree street, 3/8" NPT

1шт.

21

17387

ELBOW,3/4"-16, Male 37 Degree Fl x 3/8"-18, NPTF

HHCS - 1/4"-20 NC x 1-1/4"

6шт.

22

71838

GASKET

Copper (1/4")

6шт.

23

36596

HHCS - 3/8"-16 NC x 2-1/8"

2шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

3шт.

26

R13040

NIPPLE - water pump adapter

1шт.

27

REF

INSTRUCTION

PULLEY - fan drive (See Figure 14 , ref. #19)

1шт.

28

REF

INSTRUCTION

WASHER - crankshaft starting jaw (See Figure 14 , ref. #20)

1шт.

29

REF

INSTRUCTION

JAW - crankshaft starting (See Figure 14, ref. #21)

1шт.

30

R12782

SPARE PART Suction (Drawbar and Dozer Tractors only)

1шт.

31

R12781

SPARE PART Pusher (Loader tractors only)

1шт.

When replacing a suction type fan with a pusher type fan, an anti-sandblast screen must be used. See Figure 190 when ordering.

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Fan mounting)

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

R17745

BELT

Fan

1шт.

35

R3705

KIT

REPAIR - water pump

1шт.

36

70860

GASKET

Water pump, Serial Range: cover-body

1шт.

37

R13475

KIT

IMPELLER & INSERT ASSY

1шт.

38

10503

SEAL ASSY.

Water pump

1шт.

39

R13473

RING, SNAP

RING SNAP Bearing seat

1шт.

40

R17912

SHAFT

Water pump

1шт.

41

R17913

RING, SNAP

RING SNAP

1шт.
