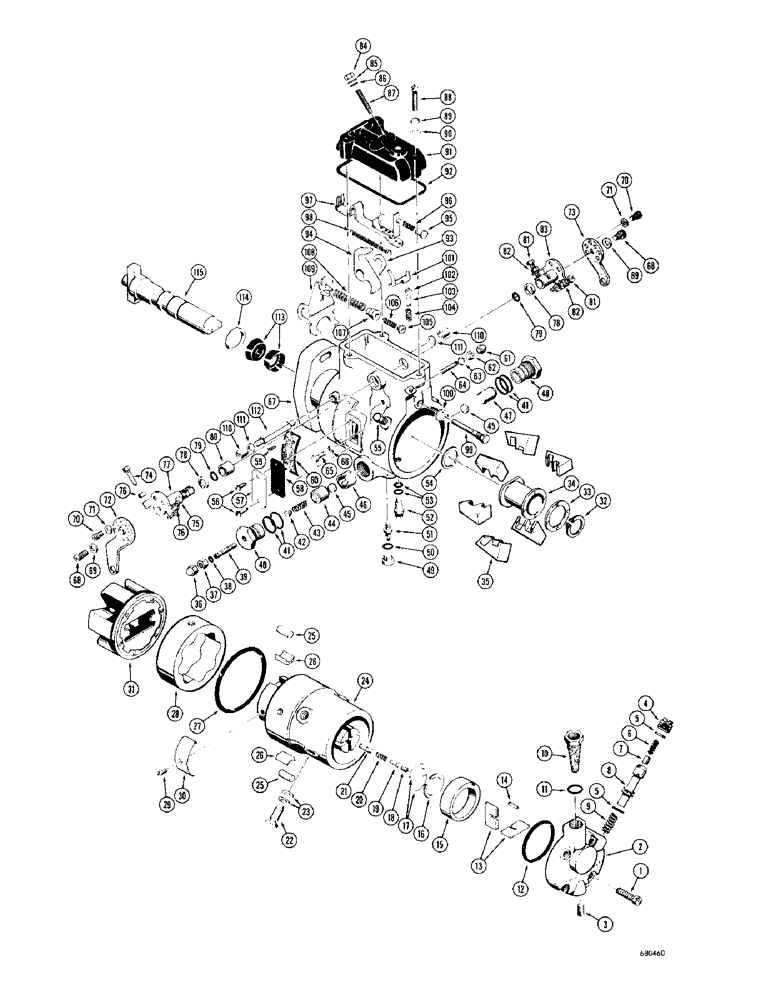

Запчасти Case 1000D (042) - D40351 FUEL INJECTION PUMP (01) - ENGINE

D40351

PUMP - fuel injection, Roosa Master #DBGVC437-8AJ

1шт.

1

R15698

SCREW - end plate

4шт.

2

73616

PLATE - end

1шт.

3

D40317

PLUG - pipe, end plate

1шт.

4

73623

PLUG - end plate

1шт.

5

73620

X

SEAL - sleeve

2шт.

6

73622

SPRING - regulator

1шт.

7

73621

PISTON

- regulating

1шт.

8

D40318

SLEEVE - end plate

1шт.

9

73618

SPRING - plunger retaining

1шт.

10

CAS73671

FILTER, ELEMENT

FILTER - cap

1шт.

11

51200280

SEAL

RING - seal

1шт.

12

73610

HYD CONNECTOR

SEAL - transfer pump

1шт.

13

73609

SOLENOID SWITCH

BLADE - transfer pump

2шт.

14

73617

PIN - locating

1шт.

15

R15696

LINER - transfer pump

1шт.

16

D40315

RING - rotor retainer

1шт.

17

D40316

RETAINER - rotor

2шт.

18

D40314

SCREW - valve retaining

1шт.

19

D40343

STOP

VALVE STOP - delivery valve

1шт.

20

D40312

SPRING - valve

1шт.

21

D40311

VALVE - delivery

1шт.

22

73613

SCREW

- fuel line connector

4шт.

23

D40309

X

WASHER - fuel line connector

8шт.

24

D40310

HEAD AND ROTOR ASSEMBLY - pump

1шт.

25

73517

ROLLER - cam

2шт.

26

73516

SHOE - cam roller

2шт.

27

73522

SCREEN

SEAL - head

1шт.

28

73444

RING - cam

1шт.

29

73518

CUP

SCREW - leaf spring

1шт.

30

R19235

SPRING - leaf

1шт.

31

D40325

RETAINER ASSEMBLY - governor weight (When stock is exhausted, use D40605 for service)

1шт.

32

73660

STEEL PLATE

RING - governor cage retaining

1шт.

33

73634

WASHER - governor thrust

1шт.

34

R22938

SLEEVE - governor thrust

1шт.

35

D40320

WEIGHT - governor

6шт.

36

D40307

CAP - advance adjusting

1шт.

37

D32451

NUT - trimmer screw

1шт.

38

73644

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - nut

1шт.

39

D40333

SCREW - advance adjustment

1шт.

40

D40332

PLUG - piston hole

1шт.

41

D40331

SEAL - plug

4шт.

42

D40330

GUIDE - spring

1шт.

43

D40329

SPRING - outer advance

1шт.

44

D40328

PISTON - spring

1шт.

45

73679

SHROUD

WASHER - slide

2шт.

46

D40327

RETAINER - washer

1шт.

47

D40346

PISTON - power

1шт.

48

D40336

PLUG - piston hole

1шт.

49

D40353

PLUG - advance screw hole

1шт.

50

D40338

SEAL - plug

1шт.

51

D40337

SCREW - cam advance (When stock is exhausted, use D40606 for service)

1шт.

D40606

SCREW

- cam advance

1шт.

52

D40335

SCREW - head locating

1шт.

53

73620

X

SEAL - screw

2шт.

54

73449

RING - drive shaft retaining

1шт.

55

73611

SCREW - head locking

2шт.

56

73514

SCREW

- timing line cover

4шт.

57

73452

COVER

- timing line

2шт.

58

NLS

NO LONGER SERVICED

- cover

2шт.

59

NSS

NOT SOLD SEPARAT

SCREW - name plate

2шт.

60

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

61

D40307

CAP - torque screw

1шт.

62

D32451

NUT - torque screw

1шт.

63

73644

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - nut

1шт.

64

D40308

SCREW - torque

1шт.

65

D40305

SCREW - torque

1шт.

66

D40304

WASHER - torque screw

1шт.

67

D40188

HOUSING ASSEMBLY - pump

1шт.

68

73670

SCREW

- throttle and shut off

2шт.

69

73630

LOCK WASHER

WASHER - screw

2шт.

70

73646

SCREW

- throttle and shut off

2шт.

71

493-21017

LOCK WASHER,Int Tooth, #8

- screw

2шт.

72

74255

LEVER - throttle

1шт.

73

74255

LEVER - shut off

1шт.

74

51200273

SCREW

- throttle lever stop

1шт.

75

73668

SCREW - high idle adjustment

1шт.

76

51200274

NUT

- lock, adjustment screw

2шт.

77

D40344

SHAFT - throttle

1шт.

78

R22936

WASHER

- throttle shaft

2шт.

79

73644

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - throttle shaft

2шт.

80

73663

ELBOW

SPACER - throttle shaft lever

1шт.

81

73649

VOLTAGE REGULATOR

SCREW - shut off arm adjusting

2шт.

82

51200274

NUT

- lock, adjusting screw

2шт.

83

D40345

SHAFT - shut off

1шт.

84

51200274

NUT

- low idle adjustment screw

1шт.

85

D40339

WASHER - nut

1шт.

86

D40341

SEAL - low idle screw

1шт.

87

D40340

SCREW - low idle adjustment

1шт.

88

R22442

SCREW - cover holddown

3шт.

89

73630

LOCK WASHER

WASHER - lock

3шт.

90

D40306

WASHER - flat

3шт.

91

D40342

COVER - governor control

1шт.

92

73647

GASKET - cover

1шт.

93

73658

REPAIR KIT

CAM - shut off

1шт.

94

74254

LEVER - throttle shaft

1шт.

95

73664

SLEEVE - damper

1шт.

96

73665

DEFLECTOR

SPRING - damper

1шт.

97

R15701

HOOK - governor linkage

1шт.

98

73638

SPRING - governor linkage

1шт.

99

R15705

STUD - guide

1шт.

100

73672

ROPE

WASHER - guide stud

1шт.

101

D34445

ARM - metering

1шт.

102

D40322

HOUSING

SHIM - metering valve

1шт.

103

D40323

VALVE

- metering

1шт.

104

D40324

SPRING - metering valve

1шт.

105

73641

GUIDE - idling spring

1шт.

106

R11952

SPRING - idling

1шт.

107

NLS

NO LONGER SERVICED

RETAINER - spring

1шт.

108

D40319

SPRING - governor control

1шт.

109

R22937

ARM - governor

1шт.

110

73661

NUT - pivot shaft

2шт.

111

R15699

SEAL - pivot shaft

2шт.

112

73655

CARBURETOR

SHAFT - governor arm pivot

1шт.

113

R14711

SEAL

- driveshaft

2шт.

114

73448

PISTON

WASHER - driveshaft

1шт.

115

73443

SHAFT - drive

1шт.
