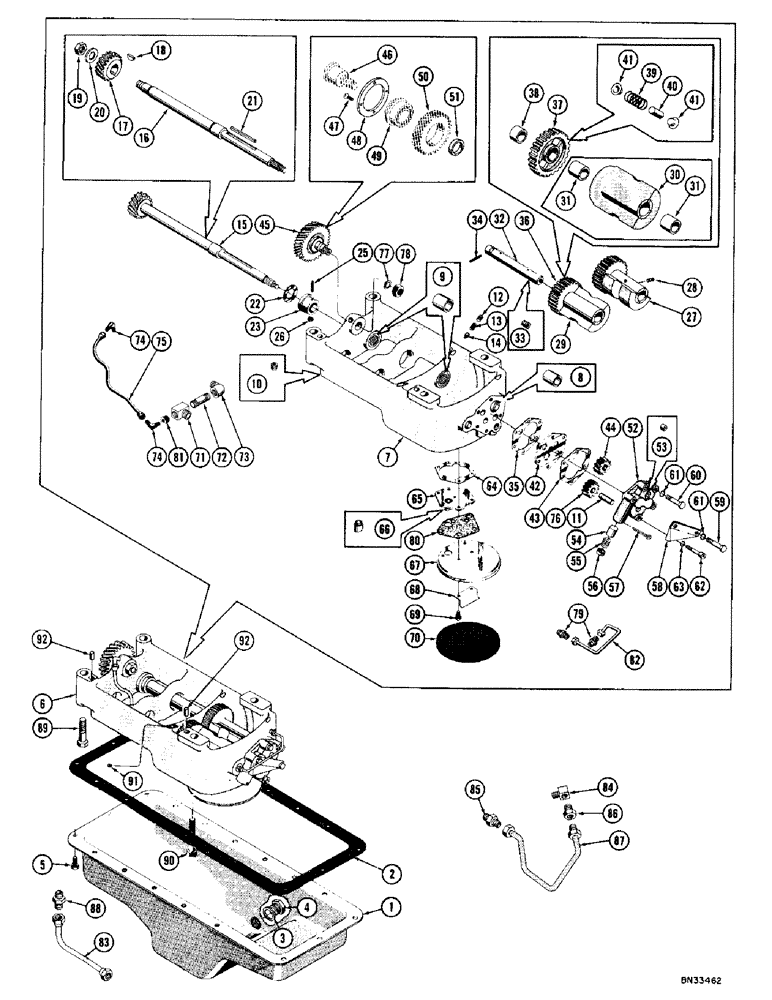

Запчасти Case 1000D (026) - LANCHESTER BALANCER (01) - ENGINE

1

72683

SPRING

PAN ASS'Y - engine oil

1шт.

2

72689

GASKET

- oil pan to cylinder block

1шт.

3

A30059

GASKET

- oil pan drain plug

1шт.

4

11579

NUT

PLUG - oil pan drain

1шт.

5

10139

SCREW & LOCKWASHER ASS'Y - 3/8" - 16 NC x 1"

18шт.

6

R21806

BALANCER ASS'Y - LANCHESTER

1шт.

R14527

HOUSING ASS'Y - counterweight drive

1шт.

R14535

HOUSING - counterweight drive

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

R18666

BUSHING - rear (Used before engine serial no. 14973)

1шт.

D38358

BUSHING - rear (Used on engine serial no. 14973 and after)

1шт.

9

R18669

BUSHING - front and center (Used before engine serial no. 14973)

2шт.

D38357

BUSHING - front and center (Used on engine serial no. 14973 and after)

2шт.

10

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- pipe, socket head, 3/8" NPT

2шт.

11

72697

COVER

SHAFT - oil pump driven gear

1шт.

12

221-850

PLUG,Hex Soc, 1/16"-27

- pipe, socket head, 1/16" NPT

1шт.

13

R20708

SPRING - pin retaining

1шт.

14

R20707

PIN - center bushing retaining

1шт.

15

R14528

SHAFT

ASS'Y - oil pump and counterweight drive

1шт.

16

R14538

SHAFT

- drive

1шт.

17

R13493

GEAR

- counterweight drive shaft

1шт.

18

73365

LEVER

KEY - #8 Woodruff

1шт.

19

R11701

NUT

- lock (Gear mounting)

1шт.

20

73367

WIRE HARNESS

LOCK - nut

1шт.

21

NLS

NO LONGER SERVICED

KEY - square (Counterweight gear mounting)

1шт.

22

R14529

WASHER - thrust

1шт.

23

R14530

COLLAR - drive shaft

1шт.

24

R14533

X

PIN - groove, collar to drive shaft (Not illustrated) (Order R23224 threaded taper pin and R23225 nut for service)

1шт.

25

R23224

PIN - threaded taper pin

1шт.

26

R23225

NUT - #10 - 32 NF

1шт.

27

R13492

GEAR

- counterweight driver

1шт.

28

73385

GEAR

SCREW - set, drive gear

2шт.

29

R21809

COUNTERWEIGHT ASS'Y - driven gear

1шт.

30

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT - driven gear

1шт.

31

R18667

BUSHING

2шт.

32

R21807

SHAFT ASS'Y - counterweight driven

1шт.

NSS

NOT SOLD SEPARAT

SHAFT - counterweight driven

1шт.

33

30395

PLUG - pipe, socket head, 1/8" NPT

1шт.

34

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, (R21807 mounting) 3/16" x 1 3/4", Slotted

1шт.

35

R19389

GASKET - oil pump cover to counterweight housing

1шт.

36

R21808

GEAR ASS'Y - counterweight driven

1шт.

R21850

GEAR ASS'Y

1шт.

37

NSS

NOT SOLD SEPARAT

GEAR

1шт.

38

R21851

BUSHING

1шт.

39

R21811

VALVE SPRING

SPRING - drive

2шт.

40

R21814

BUMPER

- spring

2шт.

41

R21810

SEAT

- spring

4шт.

42

R11038

COVER - oil pump body

1шт.

43

73392

GASKET - oil pump body cover

1шт.

44

R11037

GEAR - oil pump drive

1шт.

45

R20485

GEAR & STUD ASS'Y - idler

1шт.

46

NSS

NOT SOLD SEPARAT

SHAFT - idler

1шт.

47

171-97

SCREW,#10 - 24 x 1/2"

- #10 - 24 NC x 1/2"

4шт.

48

73373

PLATE - bearing retainer

1шт.

49

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

50

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

51

73362

HOOD

SPACER - idler gear

1шт.

R13860

BODY ASS'Y - oil pump

1шт.

52

R14454

BODY - oil pump (For service order R13860)

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

53

NSS

NOT SOLD SEPARAT

BUSHING - oil pump body

1шт.

54

A155144

VALVE, PRESSURE RELI

- oil pressure relief

1шт.

55

D29528

VALVE SPRING

SPRING - relief valve

1шт.

56

A29260

RETAINER

- oil relief spring

1шт.

57

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

58

73396

SHIELD - oil relief valve

1шт.

59

73398

SCREW - oil pump body

3шт.

60

73397

CABLE

SCREW - oil pump body

2шт.

61

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

62

R12721

SCREW - oil pump body

1шт.

63

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

64

10395

GASKET - oil inlet cover to housing

1шт.

65

73399

CLIP

COVER ASS'Y - oil inlet

1шт.

NSS

NOT SOLD SEPARAT

COVER - oil inlet

1шт.

66

10403

TUBE - oil inlet

1шт.

67

73400

PIN

FRAME - oil inlet strainer

1шт.

68

10398

SPACER - oil inlet strainer

1шт.

69

11497

SCREW & LOCKWASHER ASS'Y - (73400 frame mounting)

6шт.

70

NLS

NO LONGER SERVICED

SCREEN ASS'Y - oil strainer

1шт.

71

72685

BUSHING

TEE - 3/8" NPT (Counterweight housing center)

1шт.

72

R11971

NIPPLE - pipe, 3/8" NPT x 2-1/4"

1шт.

73

74232

ELBOW - 90 degree street, 3/8" NPT x 1/2" JIC

1шт.

74

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

x 1/4" JIC 90º, 7/16"-20, 45º Fl x 1/8" NPT

2шт.

75

72684

PLASTIC-RUBBER TUBE

TUBE ASS'Y - counterweight housing to counterweight bearing

1шт.

76

73395

GEAR - oil pump driven

1шт.

77

R11838

X

WASHER - lock, idler gear stud

1шт.

78

R11701

NUT

- hex., idler gear stud, 5/8" - 18 NF

1шт.

79

R11839

CONNECTOR - tube

2шт.

80

10397

BUSHING

GASKET - strainer frame

1шт.

81

74231

BUSHING - reducer

1шт.

82

R11836

TUBE ASS'Y - counterweight housing to counterweight bearing

1шт.

83

73368

CLIP

TUBE ASS'Y - counterweight housing to front cap

1шт.

84

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree street, 3/8" NPT

1шт.

85

30204

CONNECTOR - tube ass'y to counterweight housing

1шт.

86

R11705

CONNECTOR - tube to cylinder block

1шт.

87

R11706

TUBE ASS'Y - counterweight housing to cylinder block

1шт.

88

73369

PANEL

CONNECTOR - front bearing cap, 3/8" NPT to 1/2" JIC

1шт.

89

73371

X

HHCS - 5/8" - 11 NC x 4" (Housing to cylinder block)

2шт.

90

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

HHCS - 5/8" - 11 NC x 5-1/4" (Housing rear to cylinder block)

2шт.

91

30395

PLUG - pipe, 1/8" NPT (Counterweight drive housing)

2шт.

92

R11693

PIN - dowel, 3/8" x 3/4" (Housing to cylinder block)

2шт.

R11702

RING - seal (Not illustrated)

1шт.

R11703

NUT - tube (Not illustrated)

1шт.
