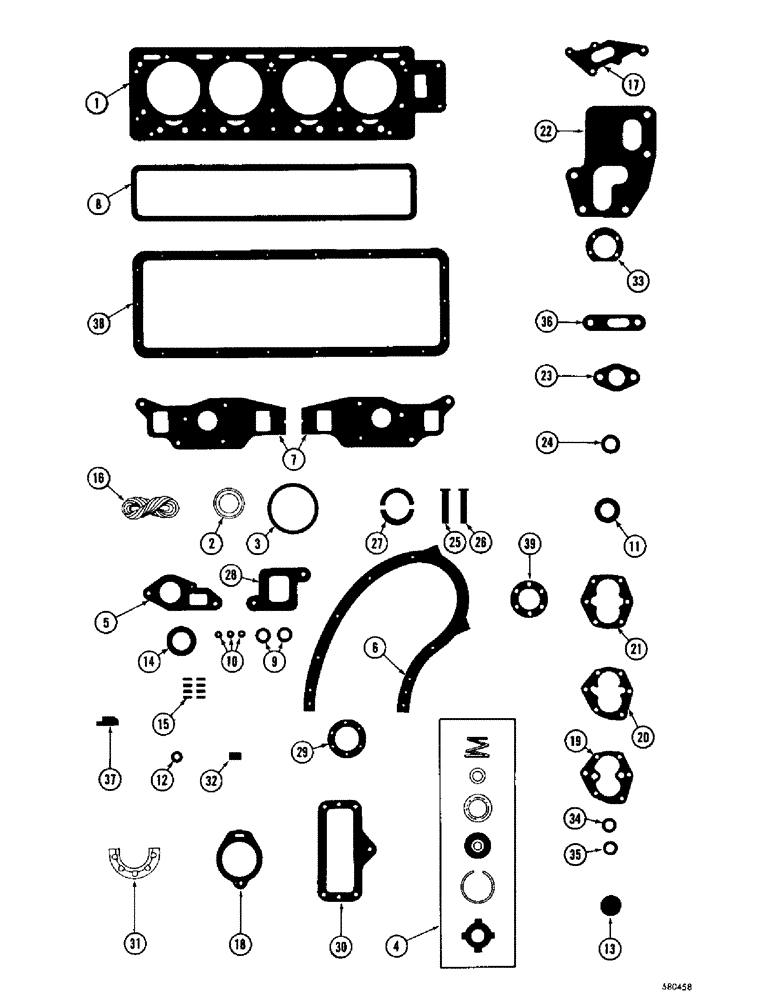

Запчасти Case 1000D (024) - SERVICE GASKET SETS (01) - ENGINE

D13474

GASKET

SET - engine, service

1шт.

1

D39029

GASKET

- cylinder, Serial Range: head-block

1шт.

2

10670

FITTING

SEAL - oil, crankshaft front

1шт.

3

72687

BEARING

PACKING - cylinder liner

8шт.

4

30045

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

SEAL - water pump

1шт.

5

10673

FITTING

GASKET - water outlet elbow

1шт.

6

72688

GASKET - gear, Serial Range: cover-crankcase

1шт.

7

17483

GASKET

- intake and exhaust manifold

2шт.

8

72691

CYLINDER HEAD GASKET

- cylinder head cover

1шт.

9

NLS

NO LONGER SERVICED

- copper asbestos, rocker arm shaft plug

2шт.

10

30257

GASKET

- copper asbestos, cylinder head cover studs

3шт.

11

71847

SEAL

WASHER - felt, oil strainer tube

1шт.

12

A30059

GASKET

- oil pan drain plug

1шт.

13

10134

FELT - flywheel pointer cover

1шт.

14

10681

PIPE FITTING

SEAL - dust, fan drive pulley

1шт.

15

R11931

WICK - oil, rocker arm

8шт.

16

A30483

PACKING

- rear bearing filler block (10 ft.)

1шт.

17

70859

GASKET

- water pump adapter

1шт.

18

A30522

GASKET

- hydraulic pump hole cover

1шт.

19

NLS

NO LONGER SERVICED

- oil pump cover

1шт.

20

73392

GASKET - oil pump, Serial Range: body-cover

1шт.

21

10395

GASKET - oil inlet cover to housing

1шт.

22

R14455

GASKET - oil cooler base to crankcase

1шт.

23

R14456

GASKET

- elbow to oil cooler

2шт.

24

10424

HARNESS

GASKET - by-pass valve plug

1шт.

D43794

GASKET SET - engine front, service

1шт.

25

11150

SEAL

- side, rear bearing to filler block, R.H.

1шт.

26

11149

SEAL

- side, rear bearing to filler block, L.H.

1шт.

27

11143

BALL

- oil, crankshaft rear

2шт.

28

10679

PIPE FITTING

GASKET - water inlet elbow

1шт.

29

10680

PIPE FITTING

GASKET - water pump drive support

1шт.

30

10217

GASKET - gear cover lid

1шт.

31

R11933

RETAINER - crankshaft rear oil seal

1шт.

32

11170

PLUG - crankshaft pulley

1шт.

33

30072

GASKET - magneto adapter hole cover

1шт.

34

73411

SEAL

- adapter

1шт.

35

73414

SPARE PART

SEAL - injection, Serial Range: pump-block

1шт.

36

R14457

GASKET - oil, Serial Range: cooler-base

2шт.

37

R11932

GASKET - rear bearing filler block

2шт.

D43793

GASKET SET - oil pan

1шт.

38

72689

GASKET

- oil pan

1шт.

39

33849

GASKET - hand hole cover

2шт.
