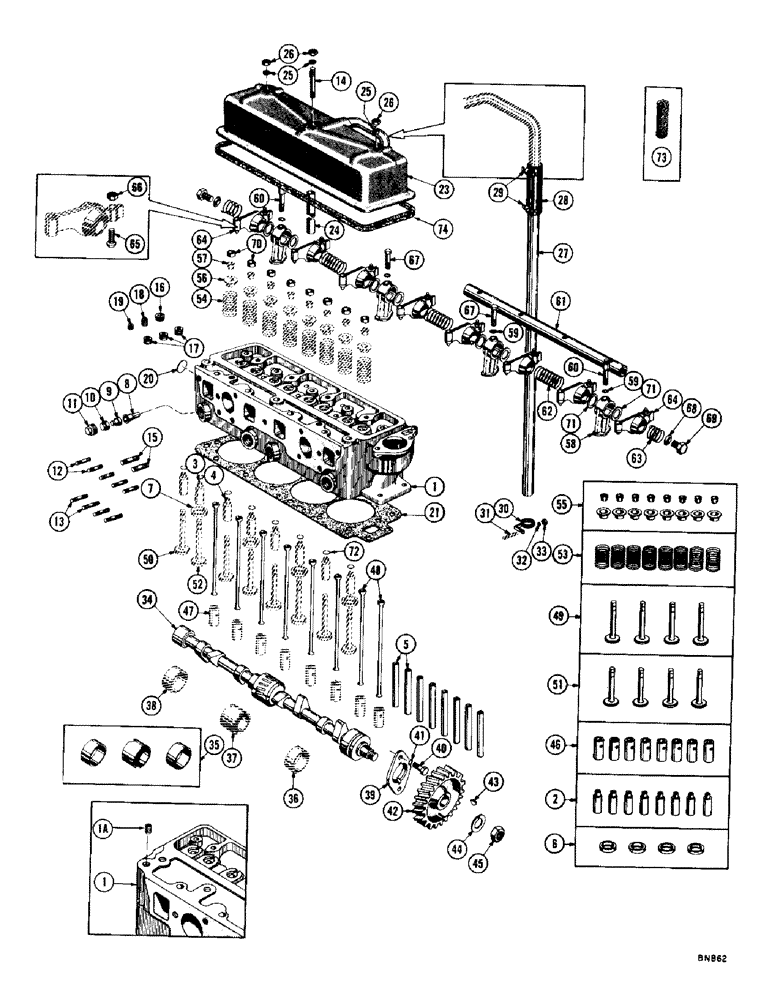

Запчасти Case 1000D (018) - CYLINDER HEAD, VALVES, AND CAMSHAFT (01) - ENGINE

1

R15756

X

HEAD - cylinder, stripped (Used before tractor S/N 7104780 and also used on tractor S/N 7104782, 7104783, and 7104784) When stock is exhausted, use D44123 for service

1шт.

D32103

HEAD

Cylinder, stripped (Used on tractor S/N 7104785 and after and also used on tractor S/N 7104780 and 7104781) When stock is exhausted, use D44123 for service

1шт.

D44123

HEAD

Cylinder, stripped (Service replacement)

1шт.

1a

30395

PLUG - pipe, hex. socket head (1/8" NPT) Used in D32103 head only when used to service R15756 head

1шт.

2

6745

FITTING

GUIDE KIT - valve

1шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem

4шт.

4

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem

4шт.

5

11134

O-RING

Push rod

8шт.

6

R2260

SPARE PART Exhaust valve seat (.010" oversize)

1шт.

7

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat

4шт.

8

R11831

SPARE PART Energy cell

4шт.

9

72638

SPARE PART Energy

4шт.

10

72639

SPARE PART Energy cell

4шт.

11

72640

WASHER

PLUG - energy cell retainer

4шт.

12

10697

FITTING

Manifold to cylinder head (3/8"-16 NC x 1-7/8")

5шт.

13

NLS

NO LONGER SERVICED

STUD - manifold to cylinder head (3/8"-16 NC x 2-1/4")

4шт.

14

11159

SPARE PART Valve cover mounting (3/8"-16 NC x 5-1/2")

1шт.

15

30166

SPARE PART Manifold to cylinder head (3/8"-16 NC x 2")

2шт.

16

30395

PLUG - pipe, oil gallery (1/8" NPT socket head)

1шт.

17

10772

LOCK WASHER

PLUG - pipe, clamp outlet holes (3/4" NPT socket head)

3шт.

18

221-13

PLUG,Sq Hd, 3/8"-18

Pipe, extended square head, rear of cylinder head

1шт.

19

A30029

PLUG

Heat fuse (1/8" NPT)

1шт.

20

10775

LOCK WASHER

Core hole (2")

1шт.

21

D39029

GASKET

Cylinder, Serial Range: head-block

1шт.

22

RESERVED

1шт.

23

72674

PIN

COVER - valve

1шт.

24

11125

COTTER PIN

SPACER - valve cover (3/8" x 4-3/32")

1шт.

25

30257

GASKET

Valve cover studs

3шт.

26

25-106

NUT,3/8"-16, G5

Hex

3шт.

27

R17264

TUBE - road draft

1шт.

28

72677

SLEEVE

SPARE PART HOSE - road draft tube

1шт.

29

R17491

CLAMP - hose

2шт.

30

72682

CLIP - road draft tube

1шт.

31

REF

INSTRUCTION

STUD - clip mounting (See Figure 10, ref. #28)

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

34

72664

SPARE PART

1шт.

35

R4291

SPARE PART KIT - camshaft

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - camshaft front

1шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - camshaft center

1шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - camshaft rear

1шт.

39

NLS

NO LONGER SERVICED

Camshaft thrust

1шт.

40

R21335

SPARE PART 3/8"-16 NC x 7/8"

2шт.

41

195-25

WASHER,3/8"

Plain (13/32" I.D. x 13/16" O.D. x 1/16" thick)

2шт.

42

72665

GEAR - camshaft timing (Standard)

1шт.

R16641

GEAR - camshaft timing (Optional) .003" undersize

1шт.

R16640

GEAR - camshaft timing (Optional) .002" undersize

1шт.

R16639

GEAR - camshaft timing (Optional) .001" undersize

1шт.

R16636

GEAR - camshaft timing (Optional) .001" oversize

1шт.

R16637

GEAR - camshaft timing (Optional) .002" oversize

1шт.

R16638

GEAR - camshaft timing (Optional) .003" oversize

1шт.

43

10776

LOCK WASHER

KEY - Woodruff (Timing gear)

1шт.

44

10447

SEALING RING COLLAR

LOCK, camshaft timing gear

1шт.

45

10718

FITTING

NUT - lock, camshaft timing gear

1шт.

46

6742

TEE

TAPPET KIT - valve

1шт.

47

NSS

NOT SOLD SEPARAT

TAPPET - valve

8шт.

48

72670

SPARE PART Valve

8шт.

49

6733

SPARE PART Intake

1шт.

50

NSS

NOT SOLD SEPARAT

VALVE - intake

4шт.

51

6736

SPINDLE

Exhaust

1шт.

52

NSS

NOT SOLD SEPARAT

VALVE - exhaust

4шт.

53

6738

SPRING KIT

Valve

1шт.

54

NSS

NOT SOLD SEPARAT

SPRING - valve

8шт.

55

6739

SEAT

AND LOCK KIT - valve

1шт.

56

NSS

NOT SOLD SEPARAT

RETAINER - valve spring

8шт.

57

NSS

NOT SOLD SEPARAT

LOCK - valve spring retaining

16шт.

58

72637

SUPPORT - rocker arm shaft

4шт.

59

R18762

WASHER - plain (15/32")

4шт.

60

11152

HARNESS

SCREW - 7/16" - 14 NC x 3/8" - 16 NC

2шт.

61

72676

SPACER

SHAFT - rocker arm

1шт.

62

72680

SCREW

SPARE PART SPRING - rocker arm shaft (Long)

3шт.

63

30229

BULB

SPRING - rocker arm shaft (Short)

2шт.

64

11133

BALL

ARM - rocker

8шт.

65

72025

SCREW - rocker arm adjusting

1шт.

66

72024

HYD CONNECTOR

SPARE PART NUT - lock, rocker arm

1шт.

67

30240

HHCS - 7/16" - 14 NC x 4"

2шт.

68

NLS

NO LONGER SERVICED

Copper asbestos

2шт.

69

72672

BODY

SPARE PART PLUG - rocker arm shaft

2шт.

70

11121

PINION

SPARE PART SOCKET - valve actuating ball

8шт.

71

72673

GASKET

SPACER - rocker arm

8шт.

72

11126

ACCESSORIES

RING - snap, valve stem

8шт.

73

R17265

SPARE PART Road draft tube

1шт.

74

72691

CYLINDER HEAD GASKET

Valve cover to cylinder head

1шт.
