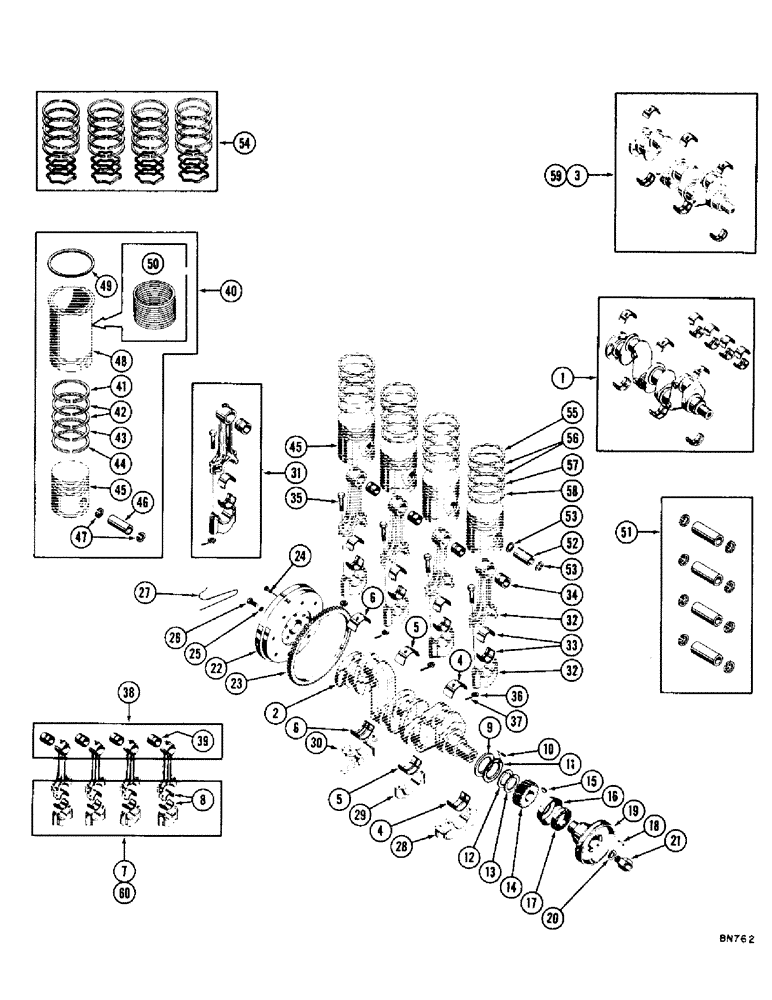

Запчасти Case 1000D (014) - CRANKSHAFT, FLYWHEEL, CONNECTING RODS, PISTONS, AND RINGS (01) - ENGINE

1

6725

CRANKSHAFT & BEARING ASS'Y

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

3

R2525

SPARE PART BEARING KIT - main (Standard)

1шт.

R3209

SPARE PART BEARING KIT - main (Optional) (.002" undersize)

1шт.

4

72643

SPARE PART ASSY - front main, upper & lower (Standard)

1шт.

R3223

BEARING

ASSY - front main, upper & lower (Optional) (.002" undersize)

1шт.

5

72644

SEAL PROTECTION

SPARE PART BEARING ASSY - center main, upper & lower (Standard)

1шт.

R3224

SPARE PART BEARING ASSY - center main, upper & lower (Optional) (.002" undersize)

1шт.

6

72645

SPARE PART ASSY - rear main, upper & lower (Standard)

1шт.

R3225

SPARE PART ASSY - rear main, upper & lower (Optional) (.002" undersize)

1шт.

7

RESERVED

1шт.

8

R3267

BEARING

ASSY - connecting rod, upper & lower (Standard)

4шт.

R3272

SPARE PART ASSY - connecting rod, upper & lower (Optional) .002" undersize

4шт.

10

REF

INSTRUCTION

PIN - dowel, thrust washer (See Figure 10, ref. #18)

1шт.

11

11293

BALL BEARING

Crankshaft thrust (Front)

1шт.

12

72646

SPARE PART Crankshaft thrust (.002")

1шт.

13

72648

SPARE PART Crankshaft thrust (.008")

1шт.

14

R13664

SPARE PART Crankshaft timing (Standard)

1шт.

R16617

GEAR - crankshaft timing (Optional) (.003" undersize)

1шт.

R16616

GEAR - crankshaft timing (Optional) (.002" undersize)

1шт.

R16615

GEAR - crankshaft timing (Optional) (.001" undersize)

1шт.

R16612

GEAR - crankshaft timing (Optional) (.001" oversize)

1шт.

R16613

GEAR - crankshaft timing (Optional) (.002" oversize)

1шт.

R16614

GEAR - crankshaft timing (Optional) (.003" oversize)

1шт.

15

10777

LOCK WASHER

KEY - Morton "Hi Pro" (Timing gear)

1шт.

16

11111

WEDGE

THROWER - crankshaft pulley

1шт.

17

10681

PIPE FITTING

Dust, fan drive pulley

1шт.

18

10777

LOCK WASHER

KEY - crankshaft oil

1шт.

19

R21801

SPARE PART Fan drive

1шт.

20

10734

ELEC CONNECTOR

WASHER - crankshaft starting jaw

1шт.

21

10449

SEALING RING COLLAR

JAW - crankshaft starting

1шт.

22

R16439

FLYWHEEL ASSY

1шт.

23

33835

GEAR WHEEL

Ring

1шт.

R15815

PIN - locating (Not illustrated)

1шт.

24

R21796

MOLDBOARD

PIN - dowel, flywheel

2шт.

25

92-10

LOCK WASHER,5/8"

6шт.

26

R15764

BOLT - place, 5/8" - 18 NC x 1-5/16"

6шт.

27

72700

SPARE PART

WIRE - lock, 18" long

1шт.

28

REF

INSTRUCTION

CAP - crankshaft front bearing (See Figure 10, ref. #3)

1шт.

29

REF

INSTRUCTION

CAP - crankshaft center bearing (See Figure 10, ref. #4)

1шт.

30

REF

INSTRUCTION

CAP - crankshaft rear bearing (See Figure 10, ref. #5)

1шт.

31

R21803

EXCHANGE CONROD

ASSY

4шт.

32

NSS

NOT SOLD SEPARAT

ROD & CAP - connecting

1шт.

33

REF

INSTRUCTION

BEARING - connecting (See ref. #8)

2шт.

34

REF

INSTRUCTION

BUSHING - piston pin (See ref. #38)

1шт.

35

72692

SPARE PART Connecting rod

2шт.

36

72694

BOLT

SPARE PART NUT - connecting rod

2шт.

37

72698

SPARE PART PIN - connecting rod bolt

2шт.

38

6716

RING

KIT - piston pin

1шт.

39

NSS

NOT SOLD SEPARAT

BUSHING - piston pin

4шт.

40

6753

PISTON

KIT - piston and cylinder liner (With rings)

1шт.

17487

STRAP

CYLINDER LINER & PISTON ASSY

4шт.

41

REF

INSTRUCTION

RING - piston, first groove (See Figure 16, ref. #54)

1шт.

42

REF

INSTRUCTION

RING - piston, second & third groove (See Figure 16, ref. #54)

2шт.

43

REF

INSTRUCTION

RING - piston, fourth groove (See Figure 16, ref. #54)

1шт.

44

REF

INSTRUCTION

RING - piston, fifth groove (See Figure 16, ref. # 54)

1шт.

45

NSS

NOT SOLD SEPARAT

PISTON

1шт.

46

REF

INSTRUCTION

PIN - piston (See ref. # 51)

1шт.

47

REF

INSTRUCTION

RING - piston pin retaining (See ref. # 53)

2шт.

48

NSS

NOT SOLD SEPARAT

LINER - cylinder

1шт.

49

72687

BEARING

SPARE PART PACKING - cylinder lining

2шт.

50

17485

COVER

SHIM KIT - cylinder liner

1шт.

51

6756

TEE

KIT - piston pin (Standard)

1шт.

R3332

KIT - piston pin (Optional) (.003" oversize)

1шт.

R3333

KIT - piston pin (Optional) (.005" oversize)

1шт.

52

72678

PIN - piston (Standard)

4шт.

R16964

SPARE PART PIN - piston (Optional) (.003" oversize)

4шт.

R16965

SPARE PART PIN - piston (Optional) (.005" oversize)

4шт.

53

72681

RING - piston pin retaining

8шт.

54

6696

RING

KIT - piston (Two in one)

1шт.

55

NSS

NOT SOLD SEPARAT

RING - piston, first groove

4шт.

56

NSS

NOT SOLD SEPARAT

RING - piston, second & third groove

8шт.

57

NSS

NOT SOLD SEPARAT

RING - piston, fourth groove

4шт.

58

NSS

NOT SOLD SEPARAT

RING - piston, fifth groove

4шт.

59

D11737

SPARE PART Main (Optional) (.010" undersize)

1шт.

D11738

BEARING KIT - main (Optional) (.020" undersize)

1шт.

60

D11739

BEARING KIT - connecting rod (Optional) (.010" undersize)

1шт.

D11740

CYLINDER END CAP

BEARING KIT - connecting rod (Optional) (.020" undersize)

1шт.
