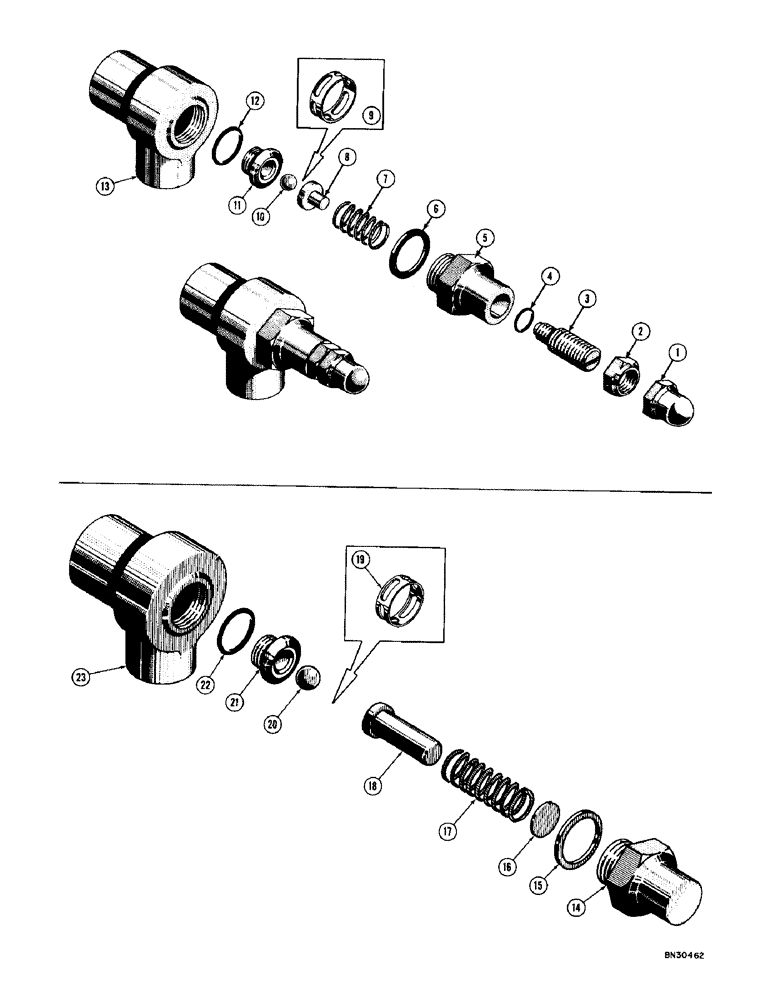

Запчасти Case 1000D (334) - SPECIAL RELIEF VALVES (07) - HYDRAULIC SYSTEM

R17539

VALVE - special relief

1шт.

1

34109

NUT - acorn

1шт.

2

34111

X

NUT - jam

1шт.

3

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - "O" ring

1шт.

5

34113

BODY

CAP - hex. body

1шт.

6

34115

GASKET

- valve cap

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

CAS34120

BUSHING

GUIDE - spring

1шт.

9

D24389

COLLAR - jam (Used on early model valves only)

1шт.

10

211-13

BALL,1/2" Dia

- relief valve 1/2" Dia

1шт.

11

D24406

SEAT

- relief valve

1шт.

12

D23928

O-RING

SEAL - "O"ring

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

R17530

VALVE - special relief (Used before tractor serial #7104001) (Order D29826 for service)

1шт.

D29826

VALVE - special relief (Used on tractor serial #7104001 and after)

1шт.

14

D28961

BODY - relief valve

1шт.

15

34115

GASKET

- body

1шт.

16

D25844

SHIM,.0097" Thk

Pressure adjusting .0097" Thk

1шт.

17

R22191

SPRING - relief valve

1шт.

18

R22172

GUIDE - spring

1шт.

19

D24389

COLLAR - jam (Used on early R17530 valves only)

1шт.

20

211-12

BALL,7/16 Dia

- relief valve

1шт.

21

R22171

SEAT/SLOT

SEAT - relief valve (Used in R17530 relief valve only) (Order D29827 for service)

1шт.

D29827

SEAT - relief valve (Used in D29826 as original equipment and in R17530 as replacement part)

1шт.

22

D23928

O-RING

SEAL - "O" ring

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.
