Запчасти Case 1000D (332) - D32124 LOADER LIFT SECTION (07) - HYDRAULIC SYSTEM

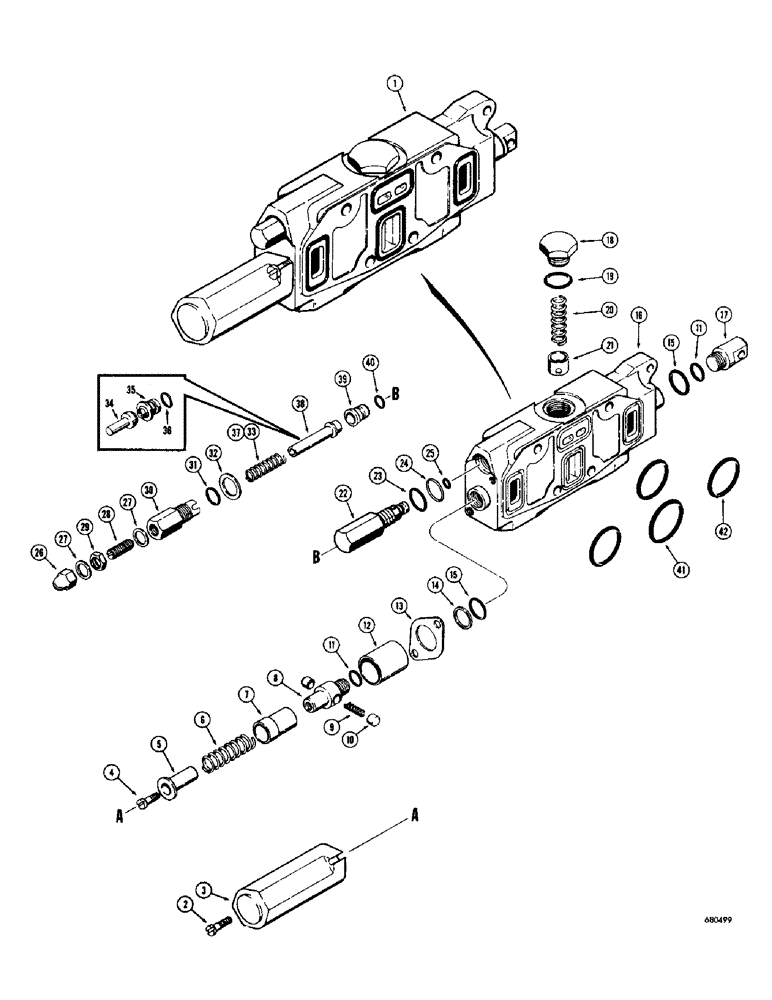

Схема запчастей Case 1000D - (332) - D32124 LOADER LIFT SECTION (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D32124

SPARE PART

LIFT SECTION - loader

1шт.

2

71-514

SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"

FHMS - 5/16" - 18 NC x 7/8"

2шт.

3

D32459

CAP

- valve section

1шт.

4

D39711

SCREW - fillister head, special

1шт.

5

D32452

RETAINER - spring, inner

1шт.

6

D32453

SPRING

- centering

1шт.

7

D32454

RETAINER

- spring, outer

1шт.

8.

D32455

RETAINER

- poppet

1шт.

9

D32450

SPRING

- poppet

1шт.

10

D32226

SPOOL

POPPET - relief

2шт.

11

D38813

O-RING

SEAL - "O" ring, 1/2" I.D. x 11/16" O.D.

2шт.

12

D32225

SLEEVE - poppet

1шт.

13

D32456

PLATE

- retaining

1шт.

14

D32457

RING

- backup

1шт.

15

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, 1" I.D. x 1-1/4" O.D.

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - lift section

1шт.

17

D32223

LUG

- spool

1шт.

18

39007

CAP

- check valve

1шт.

19

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, 1" I.D. x 1-3/8" O.D.

1шт.

20

R15308

VALVE SPRING

SPRING - check valve

1шт.

21

39006

X

POPPET - check valve

1шт.

22

D32100

FILTER

CARTRIDGE - secondary relief, 2400 P.S.I. (Preset) When stock is exhausted, use D42866 relief cartridge for service

1шт.

23

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

24

D31450

WASHER

GASKET - cartridge

1шт.

25

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D32557

CARTRIDGE

- secondary relief (Not preset) Must be set to correct pressure when installed on valve (When stock is exhausted, use D42866 relief cartridge for service

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset) Must be set to correct pressure when installed on valve

1шт.

26

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

27

23150

WASHER

GASKET - copper

2шт.

28

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1" (D32557 cartridge only)

1шт.

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special (D42866 cartridge only)

1шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

31

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

32

D31450

WASHER

GASKET - cartridge

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - relief valve (D32557 cartridge only)

1шт.

D39188

PACKAGE

KIT - seat and poppet (D32557 cartridge only)

1шт.

34

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

36

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D42865

VALVE POPPET

KIT - seat and poppet (D42866 cartridge only)

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

38

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

39

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

40

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

41

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D.

1шт.

42

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

Выбрано товаров: 47
