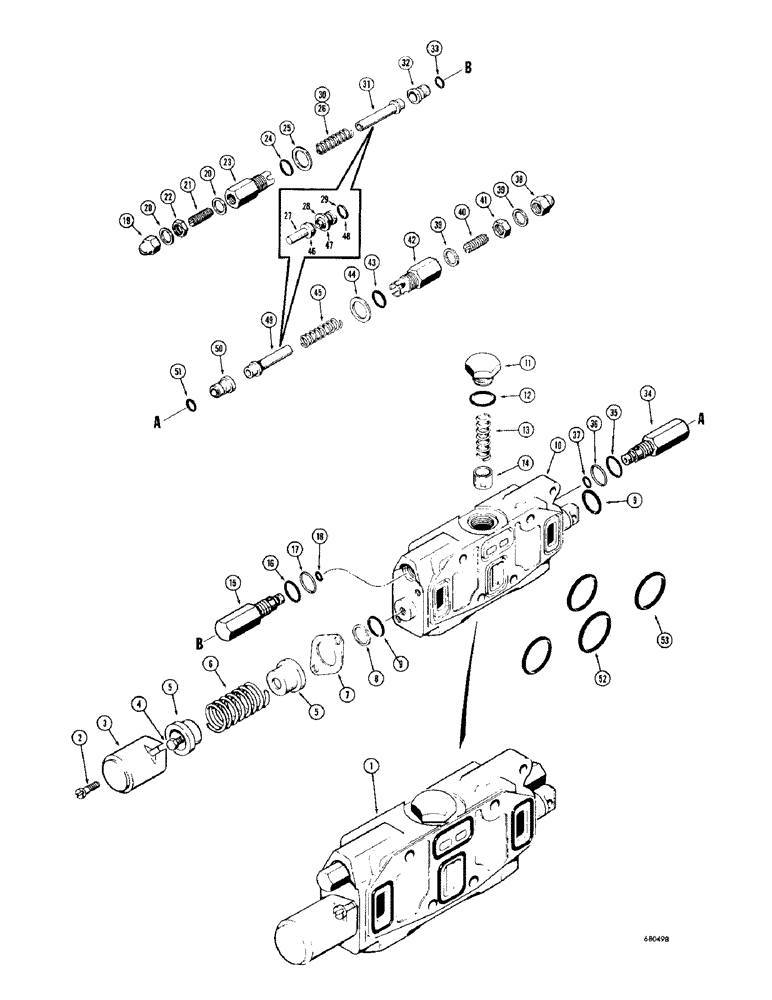

Запчасти Case 1000D (328) - D32122 LOADER DUMP SECTION (07) - HYDRAULIC SYSTEM

1

D32122

VALVE BLOCK

DUMP SECTION - loader

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS - 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - dump section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper

1шт.

5

D32130

GUIDE

- spring

2шт.

6

D32129

SPRING

- centering

1шт.

7

D32456

PLATE

- retaining

1шт.

8

D32215

RING

- backup

1шт.

9

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O" ring, 7/8" I.D. x 1-1/8" O.D.

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - dump section

1шт.

11

39007

CAP

- check valve

1шт.

12

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, 1" I.D. x 1-3/8" O.D.

1шт.

13

R15308

VALVE SPRING

SPRING - check valve

1шт.

14

39006

X

POPPET - check valve

1шт.

15

D32100

FILTER

CARTRIDGE - secondary relief, 2400 P.S.I. (Preset) When stock is exhausted, use D42866 relief cartridge for service

1шт.

16

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

17

D31450

WASHER

GASKET - cartridge

1шт.

18

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

CARTRIDGE - secondary relief (Not preset) Must be set to correct pressure when installed on valve (When stock is exhausted, use D42886 relief cartridge for service)

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset) Must be set to correct pressure when installed on valve

1шт.

19

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

20

23150

WASHER

GASKET - copper

2шт.

21

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1" (D32557 cartridge only)

1шт.

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special (D42866 cartridge only)

1шт.

22

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

24

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

25

D31450

WASHER

GASKET - cartridge

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - relief valve (D32557 cartridge only)

1шт.

D39188

PACKAGE

KIT - seat and poppet (D32557 cartridge only)

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

29

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D42865

VALVE POPPET

KIT - seat and poppet (D42866 cartridge only)

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

33

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

34

D32213

CARTRIDGE - secondary relief, 1000 P.S.I. (Preset) When stock is exhausted, use D39454 relief cartridge for service

1шт.

35

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

36

D31450

WASHER

GASKET - cartridge

1шт.

37

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D32556

CARTRIDGE

- secondary relief (Not preset) Must be set to correct pressure when installed on valve (When stock is exhausted, use D39454 relief cartridge for service)

1шт.

D39454

CARTRIDGE

- secondary relief (Not preset) Must be set to correct pressure when installed on valve

1шт.

38

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

39

23150

WASHER

GASKET - copper

2шт.

40

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1" (D32556 cartridge only)

1шт.

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special (D39454 cartridge only)

1шт.

41

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

43

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

44

D31450

WASHER

GASKET - cartridge

1шт.

45

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

D40191

X

KIT - seat and poppet (D32556 cartridge only)

1шт.

46

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

47

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

48

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

D40189

PACKAGE

KIT - seat and poppet (D39454 cartridge only)

1шт.

49

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

50

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

51

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

52

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D.

1шт.

53

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.
