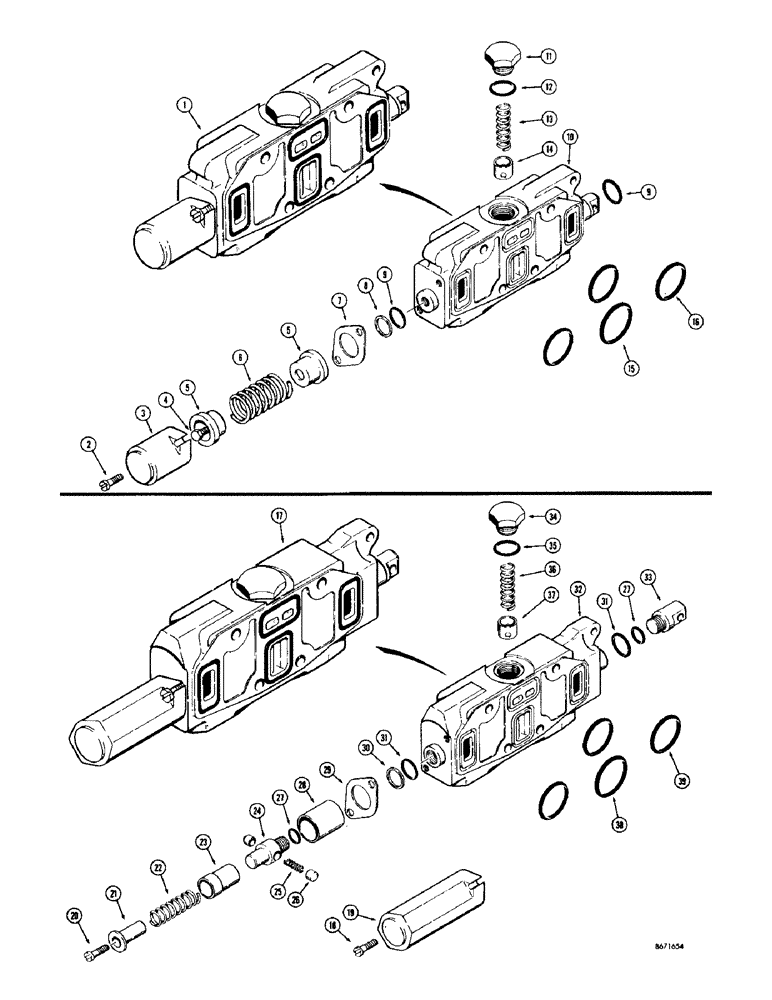

Запчасти Case 1000D (326) - D32123 DOZER TILT, ANGLING OR PULL BEHIND SECTION (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D32123
KNIFE SECTION
SECTION - dozer tilt, angling or pull behind
1шт.
2
71-512
SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"
FHMS - 5/16" - 18 NC x 3/4"
2шт.
3
D32221
COVER
CAP - clam section
1шт.
4
D32128
BOLT (SPREADER)
BOLT - stripper
1шт.
5
D32130
GUIDE
- spring
2шт.
6
D32129
SPRING
- centering
1шт.
7
D32456
PLATE
- retaining
1шт.
8
D32215
RING
- backup
1шт.
9
A27352
O-RING,0.859" ID x 1.137" OD x 0.139"
SEAL - "O" ring, 7/8" I.D. x 1-1/8" O.D.
2шт.
10
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOL - valve section
1шт.
11
39007
CAP
- check valve
1шт.
12
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
SEAL - "O" ring, 1" I.D. x 1-3/8" O.D.
1шт.
13
R15308
VALVE SPRING
SPRING - check valve
1шт.
14
39006
X
POPPET - check valve
1шт.
15
D32127
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D.
1шт.
16
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.
3шт.
17
D32125
X
VALVE SECTION - equipment control valve, ripper, dozer lift or pull behind, loader clam or log flipper,D32125
1шт.
18
71-514
SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"
FHMS - 5/16" - 18 NC x 7/8", D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
2шт.
19
D32459
CAP
- valve section, D32125 ripper, dozer lift or pull behind, loader clam or log flipper
1шт.
20
D39711
SCREW - fillister head, special, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
21
D32452
RETAINER - spring, inner, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
22
D32453
SPRING
- centering, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
23
D32454
RETAINER
- spring, outer, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
24
D32455
RETAINER
- poppet, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
25
D32450
SPRING
- poppet, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
26
D32226
SPOOL
POPPET - relief, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
2шт.
27
D38813
O-RING
SEAL - "O" ring, 1/2" I.D. x 11/16" O.D., D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
2шт.
28
D32225
SLEEVE - poppet, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
29
D32456
PLATE
- retaining, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
30
D32457
RING
- backup, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
31
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
SEAL - "O" ring, 1" I.D. x 1-1/4" O.D., D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
2шт.
32
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOL - valve section, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
33
D32223
LUG
- spool, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
34
39007
CAP
- check valve, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
35
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
SEAL - "O" ring, 1" I.D. x 1-3/8" O.D., D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
36
R15308
VALVE SPRING
SPRING - check valve, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
37
39006
X
POPPET - check valve, D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
38
D32127
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D., D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
1шт.
39
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D., D32125 ripper, dozer lift or pull behind, loader clam or log flipper section
3шт.
Выбрано товаров: 39
