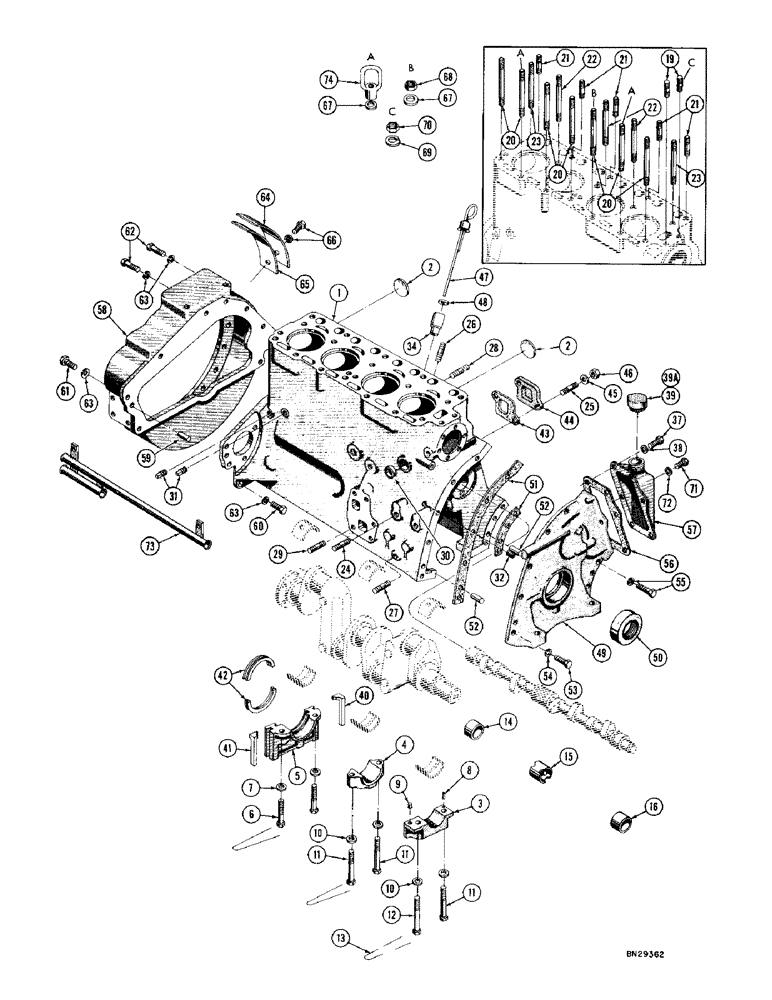

Запчасти Case 1000D (010) - ENGINE BLOCK AND RELATED PARTS (01) - ENGINE

R20606

ENGINE ASS'Y - complete (See note before ordering)

1шт.

Complete engine R20606 includes the "S" ass'y with full flow filter, flywheel, flywheel housing, intake and exhaust manifold, fuel system, fuel filters, water pump, thermostat, studs, nuts, screws, washers, plugs, gaskets, fittings, and brackets. "S" assembly R21795 includes the stripped block with cylinder liners, packings, pistons, connecting rod bearings, rings, crank- shaft, gear cover assembly, camshaft, gears, balancer, oil pan, tappets, main bearings, cylinder head, push rods, rocker arms, shafts, su

1шт.

R21795

CYLINDER & CRANKCASE ASS'Y - "S" ass'y (See note before ordering)

1шт.

Complete engine R20606 includes the "S" ass'y with full flow filter, flywheel, flywheel housing, intake and exhaust manifold, fuel system, fuel filters, water pump, thermostat, studs, nuts, screws, washers, plugs, gaskets, fittings, and brackets. "S" assembly R21795 includes the stripped block with cylinder liners, packings, pistons, connecting rod bearings, rings, crank- shaft, gear cover assembly, camshaft, gears, balancer, oil pan, tappets, main bearings, cylinder head, push rods, rocker arms, shafts, su

1шт.

R16478

SPARE PART CYLINDER & CRANKCASE ASS'Y - stripped block (See note before ordering)

1шт.

Complete engine R20606 includes the "S" ass'y with full flow filter, flywheel, flywheel housing, intake and exhaust manifold, fuel system, fuel filters, water pump, thermostat, studs, nuts, screws, washers, plugs, gaskets, fittings, and brackets. "S" assembly R21795 includes the stripped block with cylinder liners, packings, pistons, connecting rod bearings, rings, crank- shaft, gear cover assembly, camshaft, gears, balancer, oil pan, tappets, main bearings, cylinder head, push rods, rocker arms, shafts, su

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

2

41-32

PLUG,Exp, 2"

4шт.

3

72632

CAP - crankshaft front bearing

1шт.

4

72634

SPARE PART Crankshaft center bearing

1шт.

5

72628

REPAIR KIT

CAP & FILLER BLOCK - crankshaft rear bearing

1шт.

6

11155

CABLE

5/8"-11 NC x 3-1/4" (72628 mounting)

2шт.

7

71818

SPARE PART Plain (Rear cap and filler block)

2шт.

8

30271

SPARE PART Dowel, bearing caps to block (1/4" x 5/32")

5шт.

9

10294

BUSHING

RING - dowel, front bearing cap

1шт.

10

71819

GEAR

SPARE PART WASHER - plain, front and center bearing cap

4шт.

11

11154

HARNESS

5/8"-11 NC x 4-1/2" (72632 & 72634 mounting)

3шт.

12

72623

PIN

SPARE PART HHCS - 5/8"-11 NC x 4" (72632 mounting)

1шт.

13

30272

WIRE - tie, 11" long

3шт.

14

REF

INSTRUCTION

BLUSHING - camshaft, rear (See Figure 18, ref. #35)

1шт.

15

REF

INSTRUCTION

BLUSHING - camshaft, center (See Figure 18, ref. #35)

1шт.

16

REF

INSTRUCTION

BLUSHING - camshaft, front (See Figure 18, ref. #35)

1шт.

17

72625

SET PISTON RINGS+0.8

SPARE PART SPACER - front bearing cap (Not illustrated)

2шт.

18

A30470

PIN

Rear thrust washer to front bearing cap (Not illustrated)

1шт.

19

VT4501

SPARE PART STUD - cylinder head front (3/8"-16 NC x 1-11/16")

2шт.

20

11157

SPARE PART Cylinder head to block (9/16"-12 NC - 18 NF x 7-1/4")

7шт.

21

71918

SPARE PART Cylinder head to block (9/16"-12 NC - 18 NF x 2")

5шт.

22

11162

SPARE PART STUD - cylinder head to block (9/16"-12 NC - 18 NF x 7-1/8")

3шт.

23

71861

SPARE PART Cylinder head to block (9/16"-12 NC - 18 NF x 6-13/16")

2шт.

24

R15761

STUD - generator bracket to block (1/2"-13 NC x 2")

2шт.

25

G11204

STUD

Water inlet elbow to block (3/8"-16 NC x 1-3/8")

2шт.

26

10552

BOOM

STUD - injection pump to block (5/16"-18 NC x 2-1/8")

2шт.

27

10083

STUD - filter base to block (3/8"- 16 NC x 1-5/8")

1шт.

28

30333

SPARE PART STUD - road draft tube mounting (5/16"- 18 NC x 1-1/8")

1шт.

29

R11716

STUD - filter base to block (7/16"-14 NC x 2")

5шт.

30

10771

LOCK WASHER

PLUG - Hubbard, heater holes (1-5/8" dia.)

2шт.

31

221-12

PLUG,Sq Hd, 1/4"-18

Pipe, 1/4" NPT

5шт.

32

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, (Oil gallery)

2шт.

33

72626

PISTON

PLUG - pipe, 1/4" socket head (Not illustrated)

1шт.

34

A31029

X

SUPPORT - oil gauge rod (When stock is exhausted, use G37037 dipstick and G45139 tube for service)

1шт.

35

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Pipe, (Not illustrated)

1шт.

36

R21860

PIPE - pipe, oil gallery (Not illustrated)

1шт.

37

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Adapter to crankcase

5шт.

38

92-6

LOCK WASHER,3/8"

5шт.

39

10215

BRACKET

CAP - oil filler

1шт.

39a

10216

KIT

GASKET - cap

1шт.

40

11149

SEAL

Rear bearing to filler block, LH

1шт.

41

11150

SEAL

Rear bearing to filler block, RH

1шт.

42

D52296

SEAL

Oil, crankshaft rear bearing

2шт.

43

10679

PIPE FITTING

GASKET - water inlet cover

1шт.

44

70891

COVER - water inlet

1шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

Regular SF hex

2шт.

47

11132

KIT

ROD - oil gauge

1шт.

48

10416

FELT - oil gauge rod

1шт.

R21805

COVER - timing gear

1шт.

49

NSS

NOT SOLD SEPARAT

COVER - timing gear

1шт.

50

10670

FITTING

Crankshaft oil and dust

1шт.

51

72688

SPARE PART Timing gear cover to block

1шт.

52

R11693

PIN - dowel, gear cover

2шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

54

92-6

LOCK WASHER,3/8"

5шт.

55

80680

LOCK WASHER,3/8 0.381 CST ZND

LOCKWASHER ASSY - -16 NC x 1-1/4" 3/8"

2шт.

56

10217

SPARE PART Adapter to gear cover

1шт.

57

11138

BALL

COVER - adapter hole

1шт.

58

R16438

HOUSING - flywheel

1шт.

59

30327

PIN - dowel (R16438 mounting)

2шт.

60

NLS

NO LONGER SERVICED

HHCS - 3/8"-16 NC x 1-5/8"

4шт.

61

10295

BUSHING

HHCS - 3/8"-16 NC x 1-1/8"

2шт.

62

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

63

92-6

LOCK WASHER,3/8"

8шт.

64

R15759

COVER - flywheel

1шт.

65

R21816

FELT - housing cover

1шт.

66

33865

SPARE PART SCREW AND LOCKWASHER ASSY - 1/4"- 20 NC x 1/2"

2шт.

67

95-9

WASHER

Standard wrot (9/16")

19шт.

68

NLS

NO LONGER SERVICED

NUT - hex. (9/16"-18 NF)

17шт.

69

92-6

LOCK WASHER,3/8"

2шт.

70

25-106

NUT,3/8"-16, G5

Reg. SF hex

2шт.

71

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

(11138 mounting)

1шт.

72

92-4

LOCK WASHER,1/4"

1шт.

73

R21751

CONDUIT - wiring

1шт.

74

10436

ELEC CONNECTOR,5 Pin

EYE - engine lifting

2шт.
