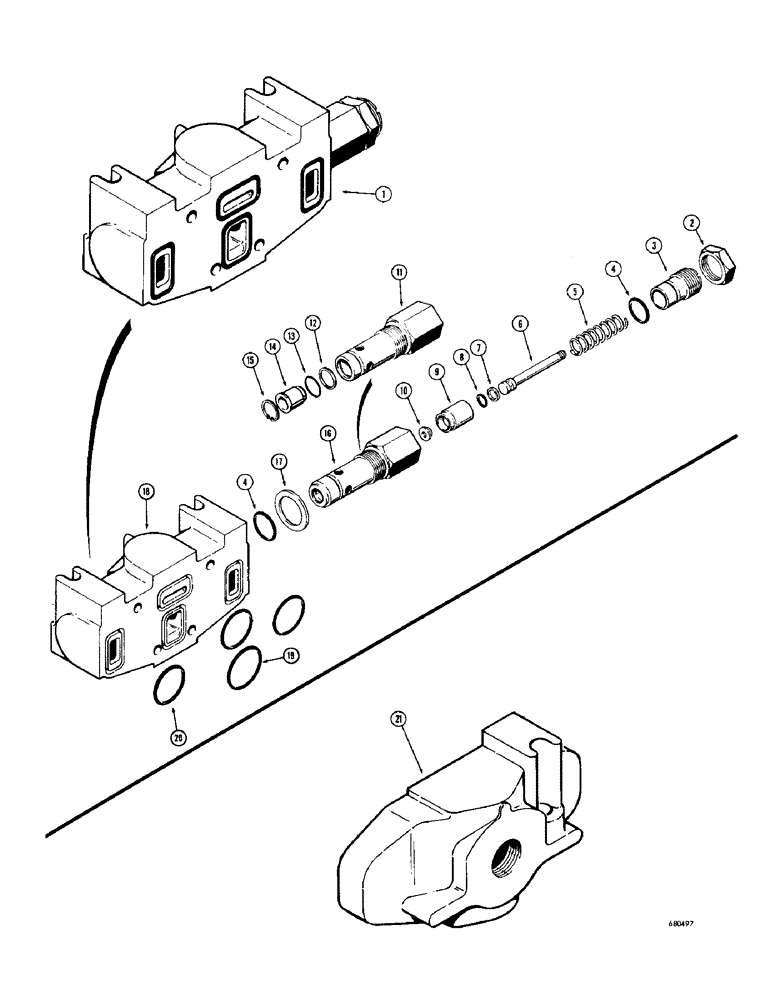

Запчасти Case 1000D (324) - D32112 VALVE INLET SECTION, D32113 VALVE OUTLET SECTION (07) - HYDRAULIC SYSTEM

1

D32112

NO LONGER SERVICED

INLET SECTION - equipment control valve

1шт.

D32126

FILTER

CARTRIDGE - relief

1шт.

2

R12507

LOCK NUT

- lock, adjusting screw

1шт.

3

R21364

SCREW

- spring adjusting

1шт.

4

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring, 7/8" I.D. x 1-1/8" O.D.

2шт.

5

D32476

SPRING

- compression

1шт.

6

R16125

PLUNGER

- displacement

1шт.

7

R12509

RING

- backup

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, 3/8" I.D. x 9/16" O.D.

1шт.

9

R12510

SEAT

- floating

1шт.

10

R16123

WASHER, THRUST

SNUBBER - check valve

1шт.

11

D32474

SHELL - cartridge, with snap ring type poppet retainer (When stock is exshausted, order D39700 shell assembly for service)

1шт.

12

R12512

OIL SEAL

RING - backup (Used with D32474 shell only)

1шт.

13

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring (Used with D32474 shell only)

1шт.

14

R12511

POPPET

- cartridge (Used with D32474 shell only)

1шт.

15

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap (Used with D32474 shell only)

1шт.

16

D39700

KIT

SHELL ASSEMBLY - cartridge, with crimped end

1шт.

17

23146

WASHER

- gasket (When stock is exhausted, order D40822 washer for service)

1шт.

D40822

WASHER

- gasket

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

19

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D.

1шт.

20

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

21

D32113

OUTLET SECTION - equipment control valve

1шт.
