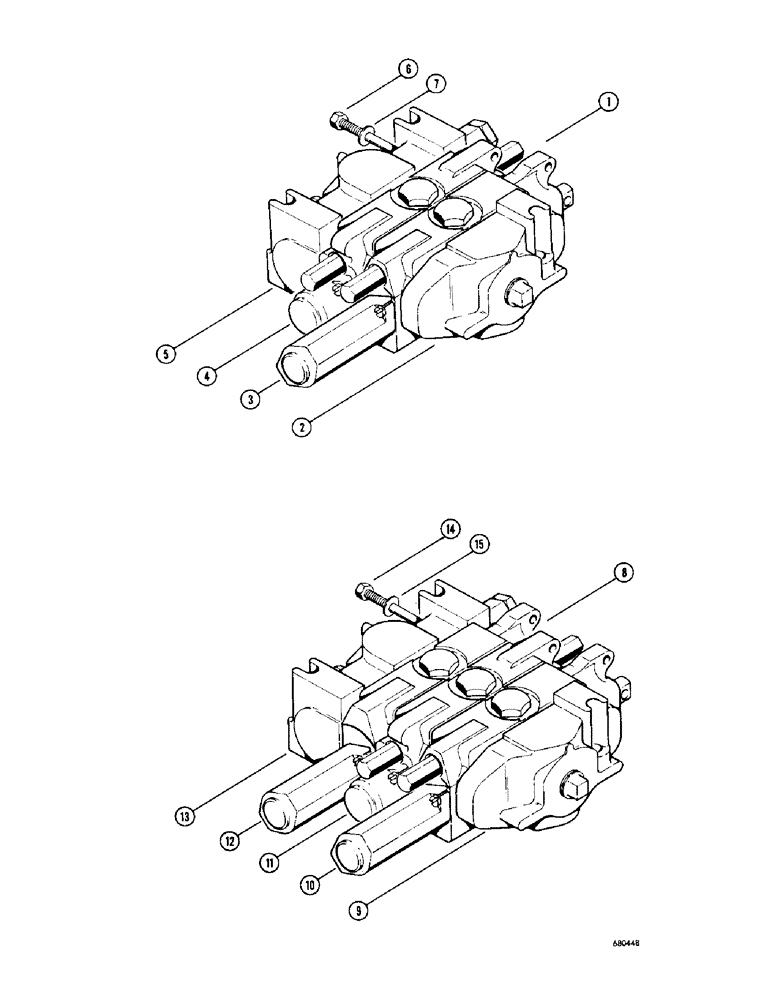

Запчасти Case 1000D (322) - LOADER CONTROL VALVES, USED ON TRACTOR SERIAL NO. 7104771 & AFTER (07) - HYDRAULIC SYSTEM

1

D31632

VALVE - hydraulic, loader (Used on loaders without clam type bucket, log loader or ripper)

1шт.

2

D32113

OUTLET SECTION - valve

1шт.

3

D32124

SPARE PART

LIFT SECTION - loader (See Figure 332 for breakdown)

1шт.

4

D32122

VALVE BLOCK

DUMP SECTION - loader (See Figure 328 for breakdown)

1шт.

5

D32112

NO LONGER SERVICED

INLET SECTION - valve (See Figure 324 for breakdown)

1шт.

6

R20428

STUD - valve

4шт.

7

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

8

D31633

LOCK VALVE

VALVE - hydraulic, loader (Used on loaders with clam type bucket, log loader or ripper), D31633, control (3 spool)

1шт.

9

D32113

OUTLET SECTION - valve, D31633 loader control (3 spool)

1шт.

10

D32124

SPARE PART

LIFT SECTION - loader (See Figure 332 for breakdown), D31633 loader control valve (3 spool)

1шт.

11

D32122

VALVE BLOCK

DUMP SECTION - loader (See Figure 328 for breakdown), D31633, control valve (3 spool)

1шт.

12

D32125

X

SECTION - valve, loader clam, log loader flipper or ripper (See Figure 326 for breakdown)

1шт.

13

D32112

NO LONGER SERVICED

INLET SECTION - valve (See Figure 324 for breakdown), D31633 loader control (3 spool)

1шт.

14

R20429

STUD

- valve, D31633 loader control (3 spool)

4шт.

15

195-33

WASHER,1/2"

- plain (), D31633 loader control valve (3 spool) 1/2"

4шт.
