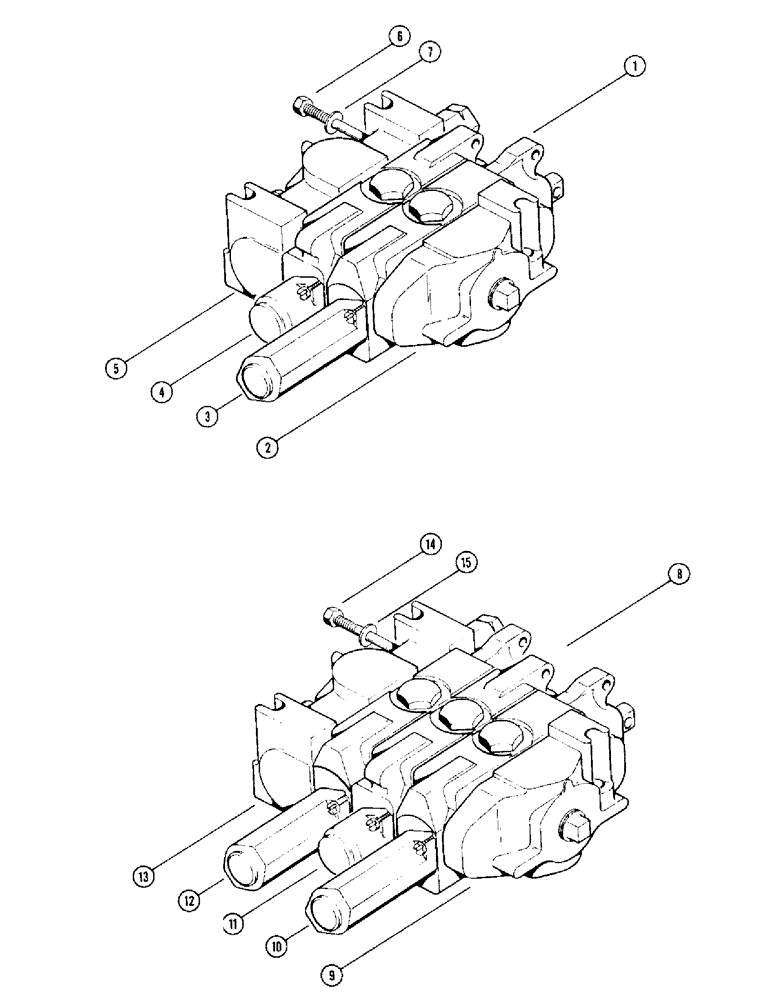

Запчасти Case 1000D (320) - DOZER CONTROL VALVES, USED ON TRACTOR SN. 7104771 & AFTER, D31630 DOZER CONTROL VALVE (2 SPOOL) (07) - HYDRAULIC SYSTEM

1

D31630

VALVE - hydraulic, dozer (Used on dozers without ripper or pull behinds)

1шт.

2

D32113

OUTLET SECTION - valve

1шт.

3

D32125

X

LIFT SECTION - dozer (See Figure 326 for breakdown)

1шт.

4

D32123

KNIFE SECTION

TILT OR ANGLING SECTION - dozer (See Figure 326 for breakdown)

1шт.

5

D32112

NO LONGER SERVICED

INLET SECTION - valve (See Figure 324 for breakdown)

1шт.

6

R20428

STUD - valve

4шт.

7

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

8

D31631

VALVE - hydraulic, dozer (Used on dozers with ripper or pull behinds)

1шт.

9

D32113

OUTLET SECTION - valve

1шт.

10

D32125

X

SECTION - valve, dozer lift, pull behind or ripper (See Figure 326 for breakdown)

2шт.

11

D32123

KNIFE SECTION

SECTION - valve, dozer lift, pull behind or ripper (See Figure 326 for breakdown)

1шт.

12

D32112

NO LONGER SERVICED

INLET SECTION - valve (See Figure 324 for breakdown)

1шт.

13

R20429

STUD

- valve

4шт.

14

195-33

WASHER,1/2"

- plain () 1/2"

4шт.
