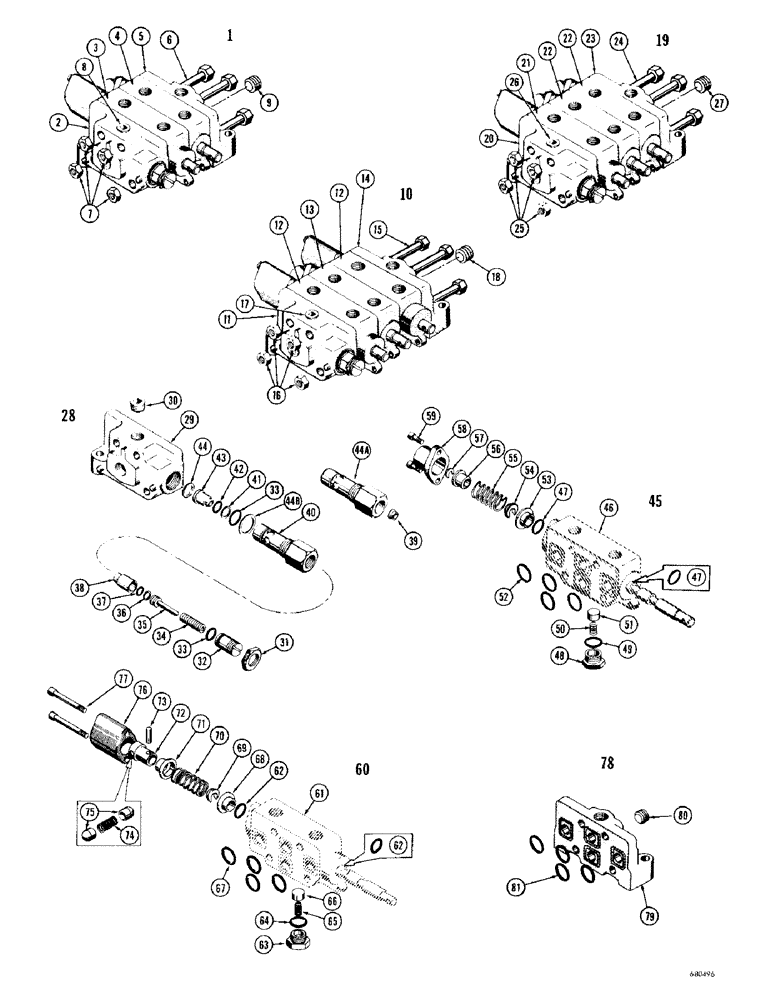

Запчасти Case 1000D (316) - EQUIPMENT CONTROL VALVES AND VALVE SECTIONS, USED FROM TRAC. SN. 7104145 & UP TO TRAC. SN 7104771 (07) - HYDRAULIC SYSTEM

1

D30151

VALVE - hydraulic, equipment control (Used on dozer models without ripper or pull behinds, or loader counterweight models without log loader or clam type bucket from tractor serial no. 7104145 and up to tractor serial no. 7104771)

1шт.

2

R14271

INLET SECTION - valve (See ref. #28 for breakdown)

1шт.

3

D30122

LIFT SECTION - dozer or loader (See ref. #60 for breakdown)

1шт.

4

R14270

X

SECTION - valve, dozer angle or tilt, or loader dump (See ref. #45 for breakdown)

1шт.

5

R14268

OUTLET SECTION - valve (See ref. #78 for breakdown)

1шт.

6

39031

STUD - valve

4шт.

7

131-13

LOCK NUT,5/8"-18, GB

NUT - hex., lock (5/8" - 18 NF)

4шт.

8

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, square socket head (1" NPT)

1шт.

9

221-37

PLUG

- pipe, square socket head (1-1/4" NPT)

1шт.

10

D30150

VALVE - hydraulic, equipment control (Used on dozer models with ripper or pull behinds, or loader models with rippe or loader)

1шт.

11

R14271

INLET SECTION - valve (See ref. #28 for breakdown)

1шт.

12

D30122

SECTION - valve, dozer pull behind or lift, loader lift or log loader flipper, or ripper (See ref. #60 for breakdown)

2шт.

13

R14270

X

SECTION - valve, dozer angle, tilt or pull behind or loader dump (See ref. #45 for breakdown)

1шт.

14

R14268

OUTLET SECTION - valve (See ref. #78 for breakdown)

1шт.

15

39032

STUD - valve

4шт.

16

131-13

LOCK NUT,5/8"-18, GB

NUT - hex., lock (5/8" - 18 NF)

4шт.

17

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, square socket head (1" NPT)

1шт.

18

221-37

PLUG

- pipe, square socket head(1-1/4" NPT)

1шт.

19

D31137

VALVE - hydraulic, equipment control (Used on loader models with clam type bucket before tractor serial no. 7104771)

1шт.

20

R14271

INLET SECTION - valve (See ref. #28 for breakdown)

1шт.

21

D30122

LIFT SECTION - loader (See ref. #60 for breakdown)

1шт.

22

R14270

X

DUMP OR CLAM SECTION - loader (See ref. #45 for breakdown)

2шт.

23

R14268

OUTLET SECTION - valve (See ref. #78 for breakdown)

1шт.

24

39032

STUD - valve

4шт.

25

131-13

LOCK NUT,5/8"-18, GB

NUT - hex., lock (5/8" - 18 NF)

4шт.

26

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, square socket head (1" NPT)

1шт.

27

221-37

PLUG

- pipe, square socket head (1-1/4" NPT)

1шт.

28

R14271

INLET SECTION - valve

1шт.

29

R15460

BODY - inlet section

1шт.

30

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, square socket head (1" NPT)

1шт.

R14175

CARTRIDGE - relief

1шт.

31

R12507

LOCK NUT

- lock, adjusting screw

1шт.

32

R12506

SCREW - spring adjusting

1шт.

33

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

34

23136

SPRING

- compression (Used with R12505 shell only)

1шт.

D32476

SPRING

- compression (Used with D39710 shell assembly only)

1шт.

35

R12508

PLUNGER - displacement (Used with R12505 shell only)

1шт.

R16125

PLUNGER

- displacement (Used with D39710 shell assembly only)

1шт.

36

R12509

RING

- backup

1шт.

37

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

38

R12510

SEAT

- floating

1шт.

39

R16123

WASHER, THRUST

SNUBBER - check valve (Used with D39710 shell assembly only)

1шт.

40

R12505

SHELL - cartridge, with snap ring type poppet retainer (If used) See D39710 shell assembly. ref. No. 44A

1шт.

41

R12512

OIL SEAL

RING - backup (Used with R12505 shell only)

1шт.

42

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring (Used with R12505 shell only)

1шт.

43

R12511

POPPET

- cartridge (Used with R12505 shell only)

1шт.

44

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap (Used with R12505 shell only)

1шт.

44a

D39710

KIT

SHELL ASSEMBLY - cartridge, with crimped end (If used) See R12505 shell, ref. No. 40

1шт.

44b

23146

WASHER

- gasket (When stock is exhausted, order D40822 washer for service)

1шт.

D40822

WASHER

- gasket

1шт.

45

R14270

X

SECTION - valve, dozer angle, tilt or pull behind, loader dump or clam

2шт.

46

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

47

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

48

39007

CAP

- check valve

1шт.

49

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring

1шт.

50

R15308

VALVE SPRING

SPRING - check valve

1шт.

51

39006

X

POPPET - check valve

1шт.

52

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

53

39009

RETAINER

- "O" ring

1шт.

54

39014

SEAT - spring retaining

1шт.

55

39015

SPRING - detent

1шт.

56

39022

PTO

GUIDE - spring

1шт.

57

39025

RETAINER - spring guide

1шт.

58

39021

PTO

CAP - valve

1шт.

59

R15399

SHCS - 3/8" - 16 NC x 7/8"

2шт.

60

D30122

SECTION - valve, dozer pull behind or lift, loader lift or log loader flipper, or ripper

2шт.

61

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

62

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

63

39007

CAP

- check valve

1шт.

64

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring

1шт.

65

R15308

VALVE SPRING

SPRING - check valve

1шт.

66

39006

X

POPPET - check valve

1шт.

67

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

68

39009

RETAINER

- "O" ring

1шт.

D30121

DETENT KIT - valve, float

1шт.

69

39014

SEAT - spring retaining

1шт.

70

D30115

SPRING - detent

1шт.

71

D30120

RETAINER - spring

1шт.

72

D30118

RETAINER - poppet

1шт.

73

135-135

PIN,5/16" x 1", Type A, Hardened

Grooved, , Drive Lock 5/16" x 1", Type A, Hardened

1шт.

74

R22457

SPRING - poppet

1шт.

75

D30116

SPOOL

POPPET - detent

2шт.

76

D30699

CAP AND SLEEVE - section

1шт.

77

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

SHCS - 3/8" - 16 NC x 3-1/2"

2шт.

78

R14268

OUTLET SECTION - valve

1шт.

79

NSS

NOT SOLD SEPARAT

HOUSING - outlet section

1шт.

80

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, square socket head (1" NPT)

1шт.

81

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.
