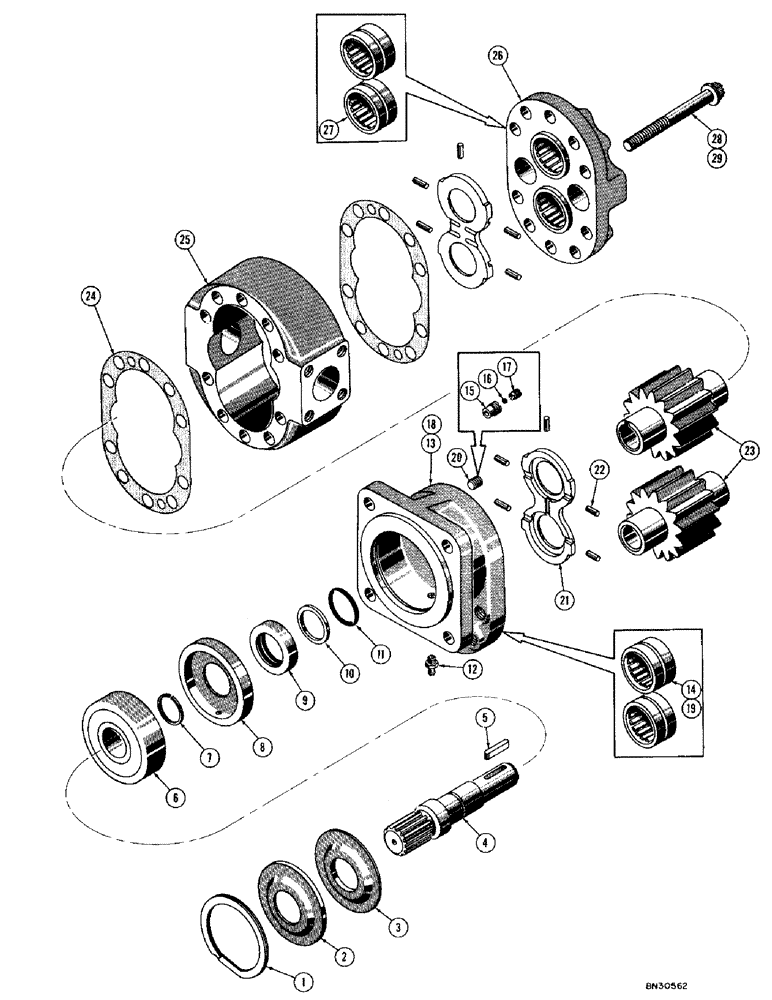

Запчасти Case 1000D (308) - R18534 AND D29490 PUMPS (07) - HYDRAULIC SYSTEM

R18534

PUMP - hydraulic, 34 G.P.M. at 2300 pump R.P.M. (2000 engine R.P.M.) Commercial Shearing #A220-38 (Used before tractor serial #7104001) Dozer models only (Order D29490 for service)

1шт.

D29490

PUMP

- hydraulic, 34 G.P.M. at 2300 pump R.P.M. (2000 engine R.P.M.) Commercial Shearing #A220-43 (Used on tractor serial #7104001 and after) Dozer models only

1шт.

1

R12623

RING - retaining, Spirolox

1шт.

2

R12624

SHIELD - bearing

1шт.

3

R12625

SEAL

- bearing

1шт.

4

R22320

SHAFT

- pump

1шт.

5

72737

KEY - gear

1шт.

6

R12626

BEARING

- ball

1шт.

7

R12632

RING

- snap

1шт.

8

R12633

SPACER - bearing

1шт.

9

72731

SEAL

- oil (Oil seal 72731 is also a component of R22287 and D29489 cover assembly)

1шт.

10

39737

RING

- backup

1шт.

11

R20315

O-RING

SEAL - "O" ring, shaft (When stock is exhausted, use D31442 "O" ring for service)

1шт.

D31442

RING

SEAL - "O" ring, shaft

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

1шт.

13

R22287

COVER ASS'Y - shaft end (Used in R18534 hydraulic pump only) (When stock is exhausted order D29489 for service)

1шт.

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

14

71435

BEARING

- roller

2шт.

Also available in P/N R4420 Pump Rebuild Kit

1шт.

15

71430

TOOL

SEAT - check valve

2шт.

16

211-4

BALL

- check

2шт.

17

71432

TOOL

RETAINER - check ball

2шт.

18

D29489

BUSHING

COVER ASS'Y - shaft end (Used in D29490 hydraulic pump as original equipment and in R18534 hydraulic pump as a replacement part)

1шт.

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

19

71435

BEARING

- roller

2шт.

Also available in P/N R4420 Pump Rebuild Kit

1шт.

20

84-76

SCREW,Hex Socket, 7/16" - 20 x 3/8"

- set, hex. socket (7/16" - 20 NF x 3/8")

1шт.

21

71442

LARGE PLATE

PLATE - thrust

2шт.

Also available in P/N R4420 Pump Rebuild Kit

1шт.

22

D35673

SEAL

- pocket, strip (3/32" dia. x 4-3/4") Cut to proper length as required for service

1шт.

Also available in P/N R4420 Pump Rebuild Kit

1шт.

23

5464

GEAR

- matched set (Drive & driven)

1шт.

Also available in P/N R4420 Pump Rebuild Kit

1шт.

24

R22321

X

GASKET - gear housing (When stock is exhausted, use 71443 gasket for service)

2шт.

Also available in P/N R4420 Pump Rebuild Kit

1шт.

NLS

NO LONGER SERVICED

GASKET - gear housing

2шт.

Also available in P/N R4420 Pump Rebuild Kit

1шт.

25

R22303

HOUSING

- gear

1шт.

26

R12627

COVER ASS'Y - port end

1шт.

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

27

71435

BEARING

- roller

2шт.

28

R12641

SCREW - cap (Used in R18534 hydraulic pump only)

10шт.

29

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

HHCS - 1/2" - 13 NC x 4-1/2" (Used in D29490 hydraulic pump only)

10шт.

R4420

KIT

pump rebuild, Includes Ref. 14, 19, 21 - 24

1шт.
