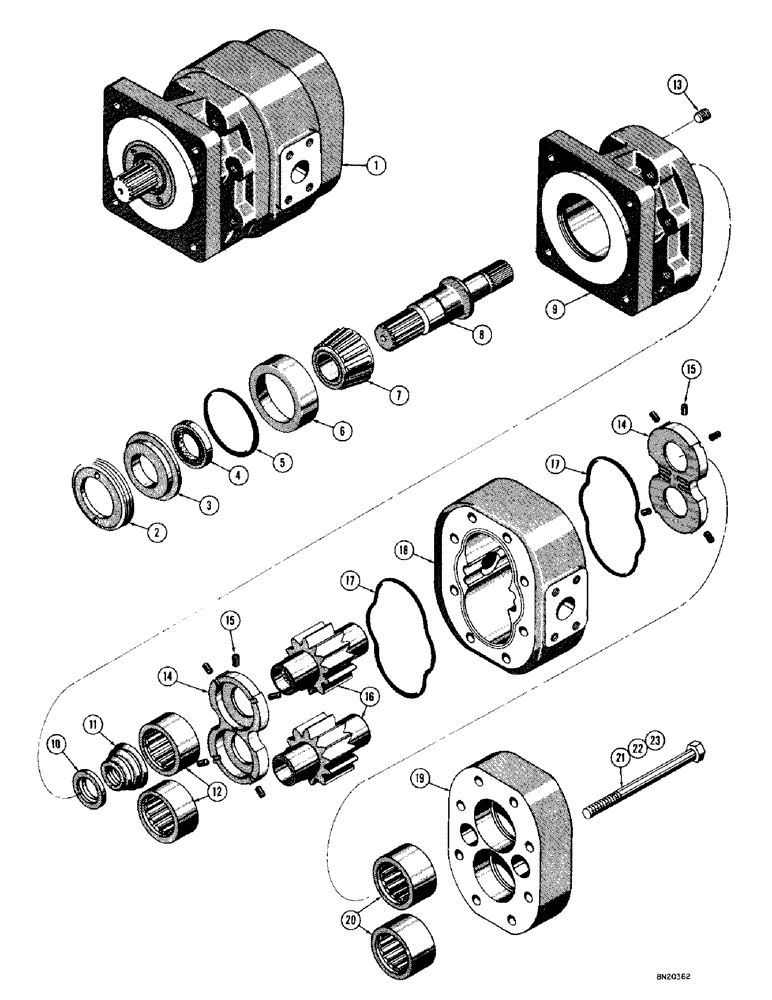

Запчасти Case 1000D (306) - D29449 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

D29449

PUMP

- hydraulic, 43 G.P.M. at 2300 pump R.P.M. (2000 engine R.P.M.) Commercial Shearing #P37X278 BART 15-7 (Used on tractor serial #7104001 and after) Loader models only

1шт.

NOTE HYD PUMP SHOULD USE A16690 10/29/96

1шт.

2

A16792

NUT

RING - retainer

1шт.

3

A16791

RETAINER

- seal

1шт.

4

A16796

SEAL

- oil

1шт.

5

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

A16794

BEARING CUP

CUP - tapered roller bearing

1шт.

7

A16795

ROLLER BEARING,1.375" ID x 1.125"

CONE - tapered roller bearing

1шт.

8

A16799

SHAFT

- pump drive

1шт.

D29623

COVER

ASS'Y - shaft end

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - shaft end (Order D29623 for service)

1шт.

10

A16789

BUSHING

- shaft

1шт.

11

A16790

SPRING

1шт.

12

A16793

NEEDLE BEARING

BEARING - roller

2шт.

13

84-76

SCREW,Hex Socket, 7/16" - 20 x 3/8"

- set, hex. socket (7/16" - 20 NC x 3/8")

1шт.

14

A16800

PLATE

- thrust

2шт.

15

D35672

SEAL

- pocket, strip (Cut to proper length as required for service)

1шт.

16

D29548

GEARS - matched set (Drive and driven)

1шт.

17

L30686

GASKET

SEAL - "O" ring

2шт.

18

D29546

HOUSING

- gear

1шт.

D29550

COVER

ASS'Y - port end

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - port end (Order D29550 for service)

1шт.

20

A16793

NEEDLE BEARING

BEARING - roller

2шт.

21

13-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

(Order 1 - 113-457 cap screw and 1 - D30694 washer for service) Hex, 1/2"-13 x 6 1/2", G5

8шт.

22

113-457

HHCS - 1/2" - 13 NC x 5-3/4"

8шт.

23

D30694

WASHER - special (Used with 115-412 cap screw)

8шт.
