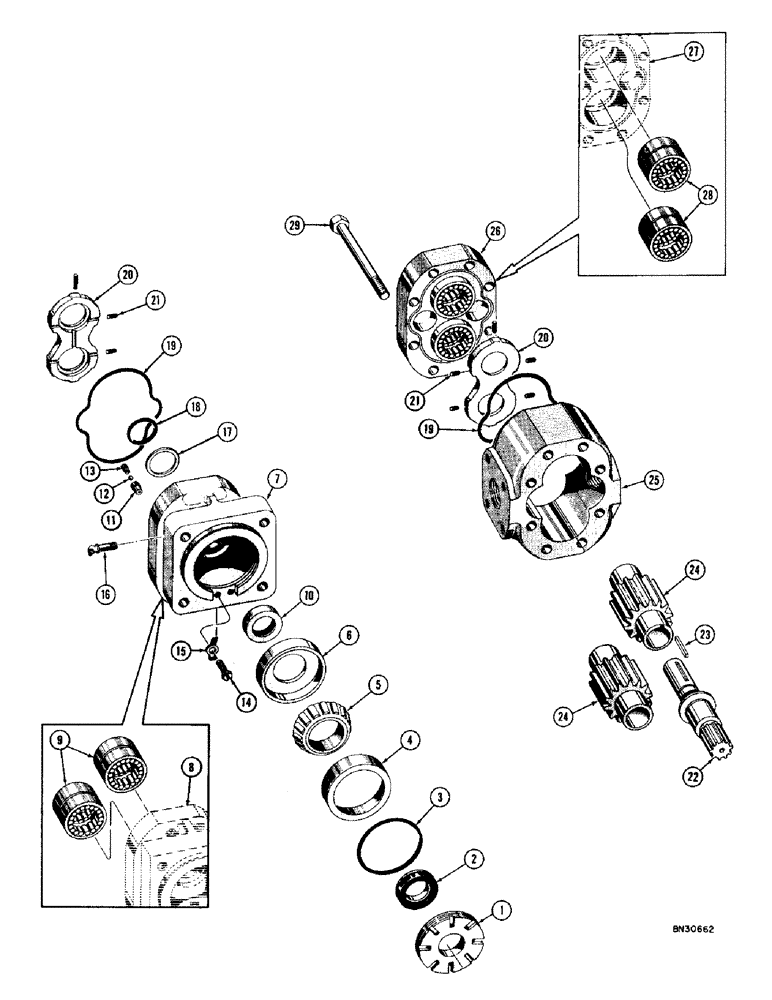

Запчасти Case 1000D (304) - R21738 HYDRAULIC PUMP, USED BEFORE TRACTOR SN. 7104001 (07) - HYDRAULIC SYSTEM

R21738

X

PUMP hydraulic, 46 G.P.M at 2300 pump R.P.M., 2000 engine R.P.M

1шт.

Commercial shearing nbr. P36H-378BAOX20-7, used before tractor S/N 7104001 Loader models only, order D29449 hydraulic pump and associated hardware for service, see Figure 238 ref. 8 for ordering information

1шт.

1

73152

SEAL

RETAINER - bearing

1шт.

2

39736

OIL SEAL

- oil

1шт.

3

A13150

O-RING

SEAL - "O" ring

1шт.

4

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing

1шт.

5

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing

1шт.

6

39020

SPACER - bearing

1шт.

7

R22047

COVER ASS'Y - shaft end

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

9

74634

ROLLER BEARING,1.625" ID x 2.1875" OD x 1.25"

- roller

2шт.

Also available in P/N R4379 Pump Rebuild Kit

1шт.

10

NLS

NO LONGER SERVICED

- oil

1шт.

11

71430

TOOL

SEAT - check valve

2шт.

12

211-7

BALL,1/4" Dia

- check 1/4" Dia

2шт.

13

71432

TOOL

RETAINER - check ball

2шт.

14

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2" (73152 locking)

1шт.

15

39751

BOARD

LOCK - retainer

1шт.

16

219-32

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - 30 degree grease, 1/8" NPT

1шт.

17

39737

RING

- backup

1шт.

18

R20315

O-RING

SEAL - "O" ring, shaft (When stock is exhausted, use D31442 "O" ring for service)

1шт.

D31442

RING

SEAL - "O" ring, shaft

1шт.

19

39738

O-RING,4.609" ID x 0.139" Width

GASKET - housing

2шт.

Also available in P/N R4379 Pump Rebuild Kit

1шт.

20

39742

PLATE

- thrust

2шт.

Also available in P/N R4379 Pump Rebuild Kit

1шт.

21

D35672

SEAL

- pocket, strip (1/8" dia. x 3-1/4") Cut to proper length as required for service

1шт.

Also available in P/N R4379 Pump Rebuild Kit

1шт.

22

39745

SHAFT - drive

1шт.

23

39746

KEY - gear

1шт.

24

A13146

GEAR - matched set (Drive & driven)

1шт.

Also available in P/N R4379 Pump Rebuild Kit

1шт.

25

R22049

HOUSING - gear

1шт.

26

39739

COVER ASS'Y - port end

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

28

74634

ROLLER BEARING,1.625" ID x 2.1875" OD x 1.25"

- roller

2шт.

Also available in P/N R4379 Pump Rebuild Kit

1шт.

29

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

8шт.

R4379

KIT pump rebuild, Includes Ref. 9, 19 - 21, 24 and 28

1шт.
