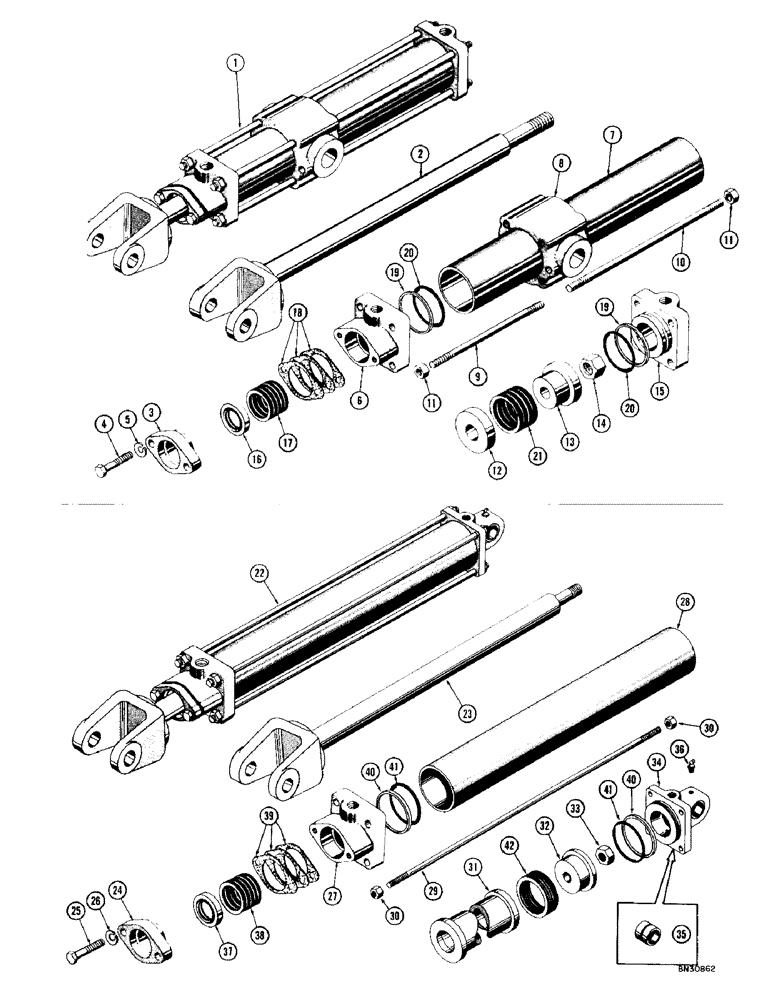

Запчасти Case 1000D (302) - R19299 DOZER LIFT CYLINDER (07) - HYDRAULIC SYSTEM

1

R19299

CYLINDER - hydraulic, dozer lift (3-1/2" I.D. x 31-1/2" stroke)

2шт.

2

70354

END YOKE & PISTON ROD - (1-3/4" O.D.)

1шт.

3

70366

RETAINER - packing (When stock is exhausted, use D30038 for service)

1шт.

D30038

RETAINER

- packing

1шт.

4

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70366 & D30038 mounting) Hex, 1/2"-13 x 2", G5

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

R19297

CAP - cylinder end

1шт.

7

70365

1 LIT CAN PAINT

TUBE - cylinder

1шт.

8

70331

TRUNNION - cylinder

1шт.

9

70362

ROD - tie, 11" long

4шт.

10

70361

ROD - tie, 25-1/4" long

4шт.

11

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

8шт.

12

R19909

WASHER - retainer

1шт.

13

R14107

BLOCK - piston

1шт.

14

R12336

LOCK NUT

- lock (1" - 14 NSF)

1шт.

15

R16779

END - cylinder

1шт.

D30141

KIT

- cylinder packing

1шт.

16

70363

WIPER SEAL

- wiper

1шт.

17

30568

PACKING

- rod

1шт.

18

NLS

NO LONGER SERVICED

SHIM - 1/64" thick

1шт.

19

D24987

RING

WASHER - backup (Leather)

2шт.

20

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring

2шт.

21

17578

PACKING

- piston

1шт.

22

R19926

CYLINDER - hydraulic, bulldozer crowning (3-1/2" I.D. x 4-3/16" stroke), R19926, power tilt

1шт.

23

70448

DRAWBAR

END YOKE & PISTON ROD - (1-3/4" O.D.), R19926 power tilt cylinder

1шт.

24

70366

RETAINER - packing (When stock is exhausted, use D30038 for service), R19926 power tilt cylinder

1шт.

D30038

RETAINER

- packing, R19926 power tilt cylinder

1шт.

25

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70366 & D30038 mounting), R19926 power tilt cylinder Hex, 1/2"-13 x 2", G5

2шт.

26

92-8

LOCK WASHER,1/2"

R19926 power tilt cylinder 1/2"

2шт.

27

R19297

CAP - cylinder end, R19926 power tilt

1шт.

28

70680

TUBE - cylinder, R19926 power tilt

1шт.

29

71896

ROD - tie, R19926 power tilt cylinder

4шт.

30

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF), R19926 power tilt cylinder

8шт.

31

R18962

SPACER - piston, R19926 power tilt cylinder

1шт.

32

R14107

BLOCK - piston, R19926 power tilt cylinder

1шт.

33

R12336

LOCK NUT

- lock (1/2" - 20 NSF), R19926 power tilt cylinder

1шт.

34

R19407

END - cylinder, R19926 power tilt

1шт.

35

71897

BUSHING, R19926 power tilt cylinder

2шт.

36

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree grease, 1/8" NPT, R19926 power tilt cylinder

1шт.

D30141

KIT

- cylinder packing, R19926 power tilt cylinder

1шт.

37

70363

WIPER SEAL

- wiper, R19926 power tilt cylinder

1шт.

38

30568

PACKING

- rod, R19926 power tilt cylinder

1шт.

39

NLS

NO LONGER SERVICED

SHIM - 1/64" thick, R19926 power tilt cylinder

1шт.

40

D24987

RING

WASHER - backup (Leather), R19926 power tilt cylinder

2шт.

41

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring, R19926 power tilt cylinder

2шт.

42

17578

PACKING

- piston, R19926 power tilt cylinder

1шт.
