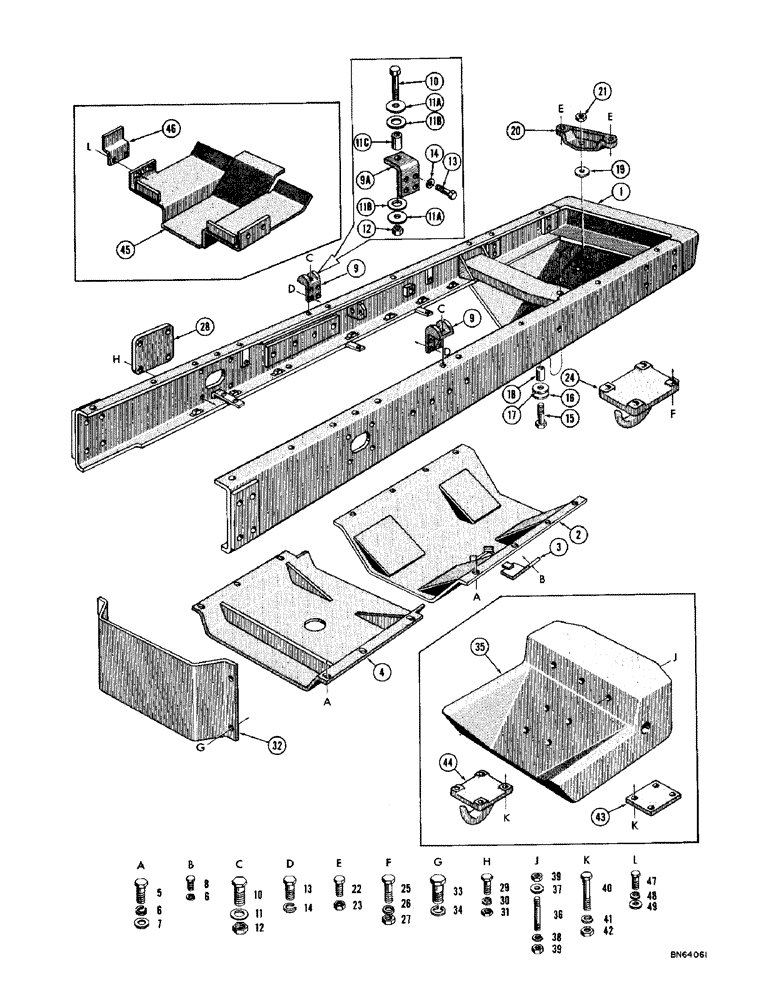

Запчасти Case 1000D (008) - ENGINE FRAME AND RELATED PARTS (01) - ENGINE

35

R21322

COUNTERWEIGHT - front

1шт.

36

R11490

STUD - 1" - 14 NF x 12"

3шт.

37

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- standard wrot (1-1/16" I.D. x 2-1/2" O.D. x 11/64" thick)

3шт.

38

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

3шт.

39

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

6шт.

40

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS - 3/4" - 16 NF x 5" (R4235 only)

4шт.

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4" - 16 NF x 4-1/2" (R4236 only)

4шт.

41

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

42

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

4шт.

43

74621

WEIGHT

PLATE - mounting (R4236 only)

1шт.

44

71671

PLATE ASSY.

HOOK - front pull (R4235 only)

1шт.

R3672

PAN

GUARD INSTALLATION - undercarriage

1шт.

45

R19645

PAN

GUARD - undercarriage

1шт.

46

R19643

BRACKET

- mounting

2шт.

47

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2" (If used)

4шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

48

92-8

LOCK WASHER,1/2"

4шт.

49

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 1/8" thick)

4шт.
