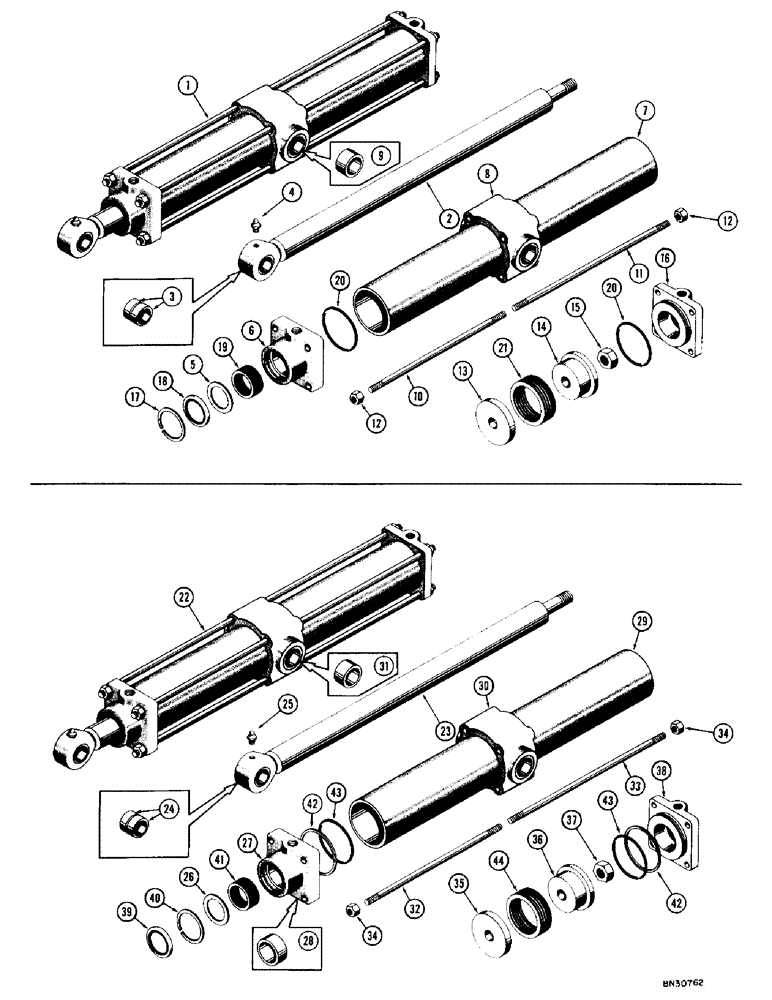

Запчасти Case 1000D (298) - R16710 LOG LOADER FLIPPER CYLINDER (07) - HYDRAULIC SYSTEM

1

R16710

CYLINDER - hydraulic, log loader flipper (3" I.D. x 20-3/4" stroke)

2шт.

2

R17194

END YOKE & PISTON ROD ASS'Y - (1-1/2" O.D.)

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

1шт.

5

70740

WASHER

- packing

1шт.

6

R16709

CAP - cylinder end

1шт.

7

R16706

TUBE - cylinder

1шт.

8

R17195

TRUNNION - cylinder

1шт.

9

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

10

R16708

ROD - tie, 11-1/16" long

4шт.

11

R16707

ROD - tie, 13-1/4" long

4шт.

12

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF)

8шт.

13

R19908

WASHER

- retainer

1шт.

14

R14106

BLOCK ASSY.

BLOCK - piston

1шт.

15

131-152

HARDWARE

NUT - lock (3/4" - 16 NF)

1шт.

16

36999

CAP COVER

END - cylinder

1шт.

D30138

KIT

- cylinder packing

1шт.

17

70742

WASHER

2.50", Int, #250

1шт.

18

17583

WIPER SEAL

- wiper

1шт.

19

17577

PACKING

- rod

1шт.

20

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

21

31662

PACKING

- piston

1шт.

22

R19365

CYLINDER - hydraulic, ripper raise and lower (4" I.D. x 13" stroke), R19365

1шт.

23

R20830

END YOKE & PISTON ROD ASS'Y - (2" O.D.), R19365 ripper cylinder

1шт.

24

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- end yoke, 2-1/8" O.D. x 7/8" thick (Used on tractor serial #7104001 and after as original equipment), R19365 ripper cylinder

2шт.

72973

BUSHING

- end yoke, 1-7/8" O.D. x 3/4" thick (Used before tractor serial #7104001 as original equipment), R19365 ripper cylinder

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT, R19365 ripper cylinder

1шт.

26

D25044

WASHER

- packing, R19365 ripper cylinder

1шт.

27

R18784

CAP - cylinder end, R19365 ripper

1шт.

28

R17508

BUSHING

R19365 ripper cylinder

1шт.

29

71068

TUBE - cylinder, R19365 ripper

1шт.

30

75020

TRUNNION - cylinder, R19365 ripper

1шт.

31

D21903

BUSHING

R19365 ripper cylinder

2шт.

32

71065

SHAFT

ROD - tie, 5-1/8" long, R19365 ripper cylinder

4шт.

33

71064

SHAFT

ROD - tie, 13-3/8" long, R19365 ripper cylinder

4шт.

34

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF), R19365 ripper cylinder

8шт.

35

R19906

WASHER - retainer, R19365 ripper cylinder

1шт.

36

R14108

BLOCK

- piston, R19365 ripper cylinder

1шт.

37

R12336

LOCK NUT

- lock (1" - 14 NSF), R19365 ripper cylinder

1шт.

38

R16545

END - cylinder, R19365 ripper

1шт.

D30145

PACKAGE, REPAIR

KIT - cylinder packing, R19365 ripper

1шт.

39

31525

WIPER SEAL

- wiper, R19365 ripper cylinder

1шт.

40

R18222

RING

- snap, R19365 ripper cylinder

1шт.

41

17598

PACKING

- rod, R19365 ripper cylinder

1шт.

42

D24988

RING

WASHER - backup (Leather), R19365 ripper cylinder

2шт.

43

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, R19365 ripper cylinder

2шт.

44

31526

PACKING

- piston, R19365 ripper cylinder

1шт.
