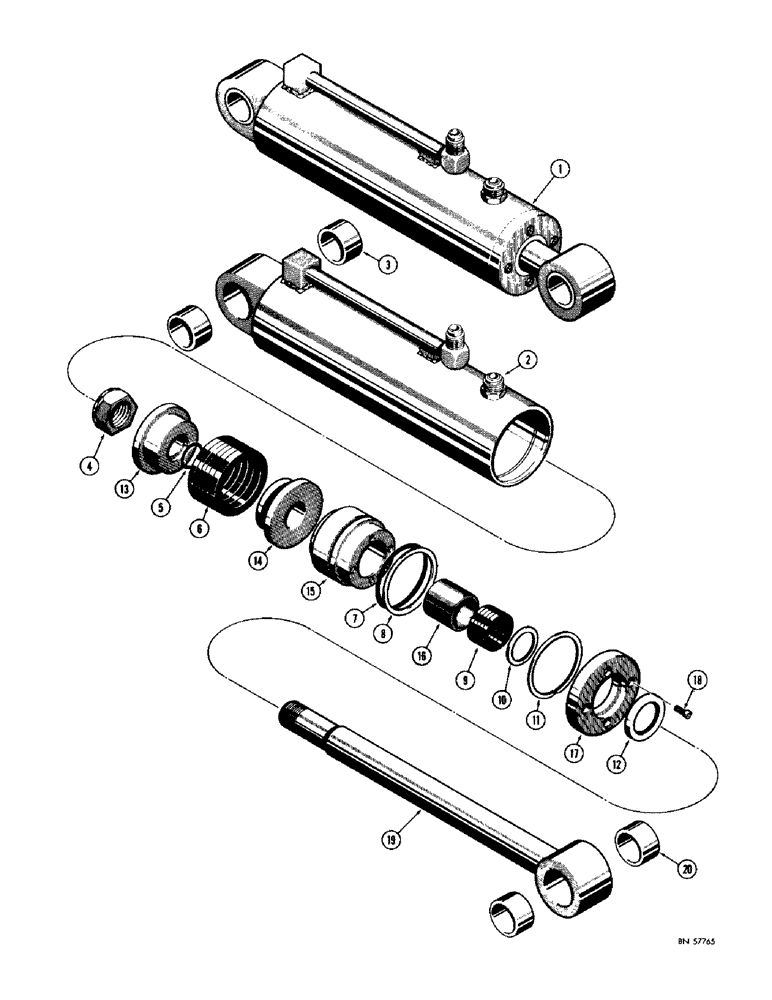

Запчасти Case 1000D (294) - D38853 ULRICH CLAM CYLINDER (07) - HYDRAULIC SYSTEM

1

D38853

HYDRAULIC CYLINDER

CYLINDER - hydraulic, clam (3-1/2" dia. x 9-1/4" stroke)

2шт.

2

D38867

BODY

TUBE - cylinder

1шт.

3

D38849

BUSHING

- tube

2шт.

D38878

MISC PACKAGING

KIT - packing, gland type cylinder

1шт.

4

131-41

LOCK NUT,1 1/4"-12, GB

NUT - hex., lock (1-1/4" - 12 NF)

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring, piston

1шт.

6

D38865

PACKING

- piston

1шт.

7

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup

1шт.

9

D38861

PACKING

- gland

1шт.

10

D38860

SHIM,.030" Thk

Gland .030" Thk

1шт.

11

F13160

SNAP RING,#350, 3.716", Int, Spiral

RING - retaining

1шт.

12

D38856

WIPER

SEAL - wiper

1шт.

13

D38864

PISTON - half, nut end

1шт.

14

D38863

PISTON - half, eye end

1шт.

15

D38857

GLAND - cylinder

1шт.

16

D38862

BUSHING - gland

1шт.

17

D38854

CAP - cylinder

1шт.

18

D38855

X

SCREW - special

4шт.

19

D38868

ROD - piston (1-3/4" dia)

1шт.

20

D38849

BUSHING

- rod

2шт.
