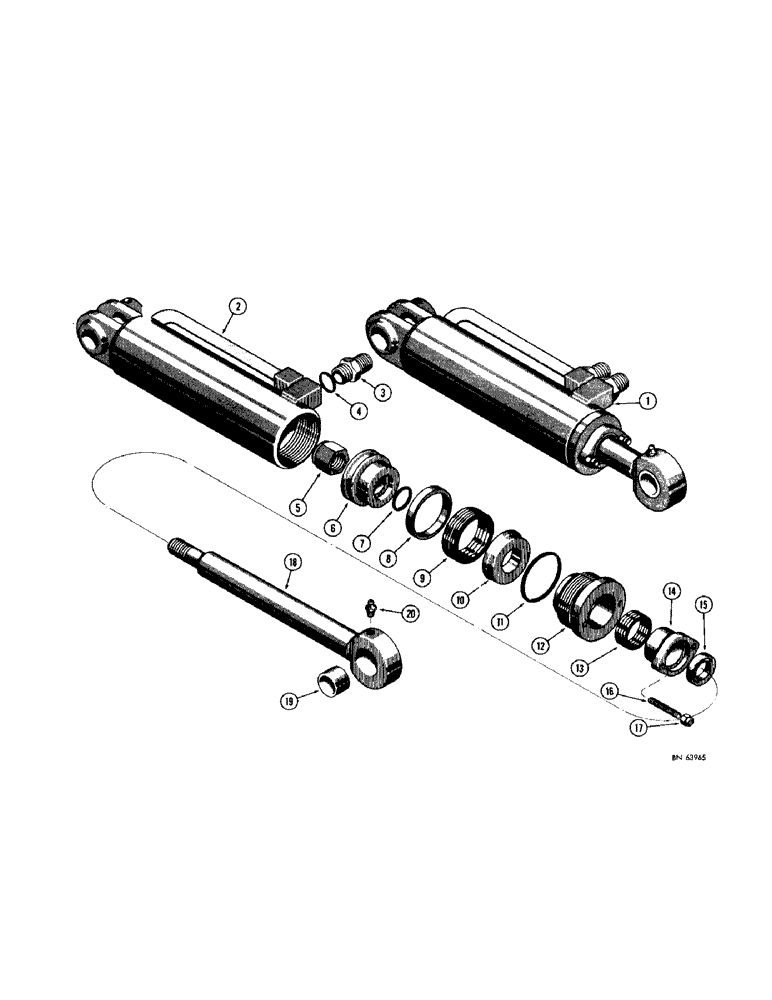

Запчасти Case 1000D (292[1]) - A17668 AND A17669 DROTT CYLINDER (07) - HYDRAULIC SYSTEM

1

A17668

CYLINDER

- hydraulic, clam (R.H.) 4" dia. x 10" stroke

1шт.

A17669

CYLINDER

- hydraulic, clam (L.H.) 4" dia. x 10" stroke

1шт.

2

A17682

CYLINDER

TUBE - cylinder, R.H.

1шт.

A17683

CYLINDER

TUBE - cylinder, L.H.

1шт.

3

A17684

ROD, CONNECTING

CONNECTOR - male, special

2шт.

4

A17685

O-RING

SEAL - "O" ring

1шт.

5

A17709

NUT

- hex., lock (When stock is exhausted, use 131-22 nut for service)

1шт.

6

A17681

PISTON

- half nut end

1шт.

7

A17680

O-RING

SEAL - "O" ring

1шт.

8

A17686

RING

- wiper

1шт.

9

A17679

KIT

PACKING - piston

1шт.

10

A17678

PISTON

- half, eye end

1шт.

11

A17677

O-RING

SEAL - "O" ring

1шт.

12

A17676

CYLINDER HEAD

GLAND - packing, outer

1шт.

13

A17675

PACKING

- gland

1шт.

14

A17674

GLAND

- packing, inner

1шт.

15

A17672

SEAL

SEAL - wiper

1шт.

16

A17673

STUD

- flange

2шт.

17

131-181

LOCK NUT,3/8"-24, GC

NUT - hex., lock (3/8" - 24 NF)

2шт.

18

A17671

ROD

- cylinder

1шт.

19

A18692

BUSHING

- cylinder (When stock is exhausted, use A17670 bushing for service)

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/4" - 28 NF)

1шт.
