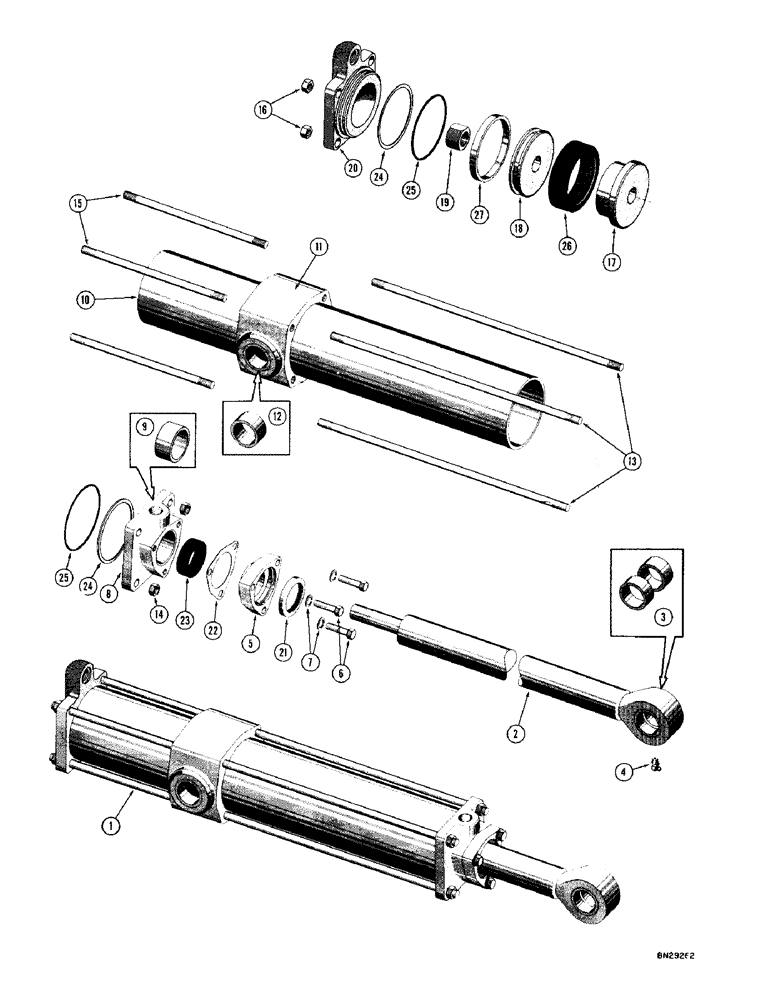

Запчасти Case 1000D (286) - D29647 LOADER LIFT CYLINDER, USED ON TRACTOR SERIAL NO. 7104001 & AFTER (07) - HYDRAULIC SYSTEM

1

D29647

CYLINDER ASSY.

CYLINDER - hydraulic, loader lift (5-1/2" I.D. x 30" stroke) Used on tractor serial no. 7104001 and after

2шт.

2

74961

END YOKE AND PISTON ROD - when stock is exhausted use D29774 for service (2-1/2" O.D.)

1шт.

D29774

END YOKE AND PISTON ROD - 2-1/2" O.D.

1шт.

3

70466

BUSHING

- rod eye (When stock is exhausted, use 2 - D23203 bushings for service)

2шт.

D23203

BUSHING

- rod eye

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

72833

RETAINER - packing (Use D30039 for service)

1шт.

D30039

RETAINER

- packing

1шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(72833 and D30039 mounting) Hex, 1/2"-13 x 2", G5

3шт.

7

92-8

LOCK WASHER,1/2"

3шт.

8

R14871

CYLINDER END CAP

CAP - cylinder end

1шт.

9

R18555

BUSHING - cap (Ream I.D. to 2.503" - 2.504" after installation in cap)

1шт.

10

72901

TUBE - cylinder 5.5" ID, 5.99" OD, 34.041" Length

1шт.

11

D29519

TRUNNION - cylinder

1шт.

12

70466

BUSHING

- rod eye (When stock is exhausted, use 2 - D23203 bushings for service)

2шт.

D23203

BUSHING

- rod eye

2шт.

13

R14872

TIE-ROD

ROD - tie, 22-9/16" long

4шт.

14

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF)

4шт.

15

D29522

ROD - tie, 13-3/8" long

4шт.

16

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4" - 16 NF)

4шт.

17

R14111

BLOCK

- piston

1шт.

18

70586

WASHER - retainer

1шт.

19

48074

NUT

- lock (1-1/4" - 12 NF)

1шт.

20

D29520

END - cylinder

1шт.

D30149

CYLINDER

KIT - cylinder packing

1шт.

21

72893

WIPER SEAL

- wiper

1шт.

22

72894

GASKET

SHIM - 1/64" thick

1шт.

23

31662

PACKING

- rod

1шт.

24

R13073

X

RING - backup, leather (Use D30512 for service)

2шт.

D30512

RING

- backup, teflon

2шт.

25

R12803

O-RING

SEAL - "O" ring

2шт.

26

R17197

PACKING

- piston

1шт.

27

70579

RING

- wear

1шт.
