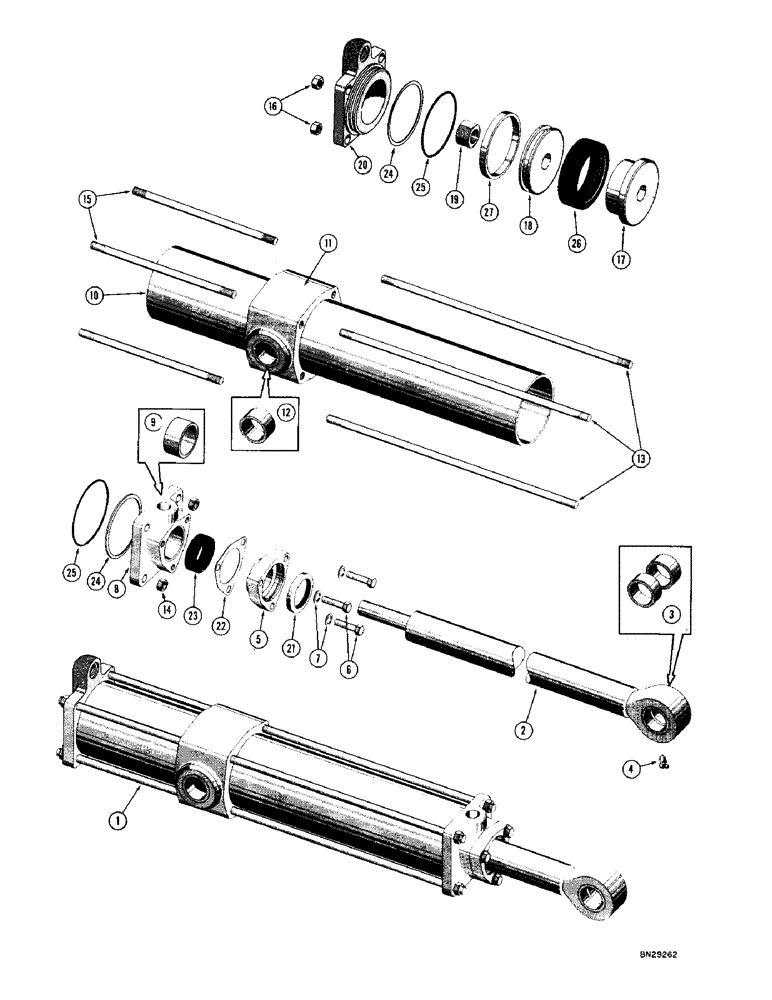

Запчасти Case 1000D (284) - R13565 LOADER LIFT CYLINDER, USED BEFORE TRACTOR SN. 7104001 (07) - HYDRAULIC SYSTEM

1

R13565

CYLINDER ASSY.

CYLINDER - hydraulic, loader lift (5-1/2" I.D. x 30" stroke) Order D29647 for service (Used before tractor serial #7104001)

2шт.

2

74961

END YOKE & PISTON ROD - (When stock is exhausted, use 1 - D29774 for service) (2-1/2" O.D.)

1шт.

D29774

END YOKE & PISTON ROD - (2-1/2" O.D.)

1шт.

3

70466

BUSHING

- rod eye (When stock is exhausted, use 2 - D23203 bushings for service)

2шт.

D23203

BUSHING

- rod eye

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

72833

RETAINER - packing (Order D30039 for service)

1шт.

D30039

RETAINER

- packing

1шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(72833 & D30039 mounting) Hex, 1/2"-13 x 2", G5

3шт.

7

92-8

LOCK WASHER,1/2"

3шт.

8

R14871

CYLINDER END CAP

CAP - cylinder end

1шт.

9

R18555

BUSHING - cap (Ream I.D. to 2.503" - 2.504" after installation in cap)

1шт.

10

72901

TUBE - cylinder 5.5" ID, 5.99" OD, 34.041" Length

1шт.

11

74960

TRUNNION - cylinder

1шт.

12

70466

BUSHING

- (When stock is exhausted, use 2 - D23203 for service)

2шт.

D23203

BUSHING

2шт.

13

R14872

TIE-ROD

ROD - tie, 22-9/16" long

4шт.

14

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF)

4шт.

15

71064

SHAFT

ROD - tie, 5/8" O.D. x 13-3/8" long (D11673 field kit is recommended for service of 5/8" tie rods) (See ref. #28 for breakdown)

4шт.

D29522

ROD - tie, 3/4" O.D. x 13-3/8" long

4шт.

16

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF) (Used with 71064 only)

4шт.

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4" - 16 NF) (Used with D29522 only)

4шт.

17

R14111

BLOCK

- piston

1шт.

18

70586

WASHER - retainer

1шт.

19

48074

NUT

- lock (1-1/4" - 12 NF)

1шт.

20

R14869

END - cylinder

1шт.

D30149

CYLINDER

KIT - cylinder packing, tie rod type

1шт.

21

72893

WIPER SEAL

- wiper

1шт.

22

72894

GASKET

SHIM - 1/64" thick

1шт.

23

31662

PACKING

- rod

1шт.

24

R13073

X

RING - backup, leather (Order D30512 for service)

2шт.

D30512

RING

- backup, teflon

2шт.

25

R12803

O-RING

SEAL - "O" ring

2шт.

26

R17197

PACKING

- piston

1шт.

27

70579

RING

- wear

1шт.

28

D11673

X

KIT - tie rod conversion, 5/8" tie rods to 3/4" tie rods (Field installation only) (Not illustrated)

1шт.

D29522

ROD - tie, 3/4" O.D. x 13-3/8" long

4шт.

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4" - 16 NF)

4шт.

R13073

X

WASHER - backup, leather (Order D30512 for service)

1шт.

R12803

O-RING

SEAL - "O" ring

1шт.
