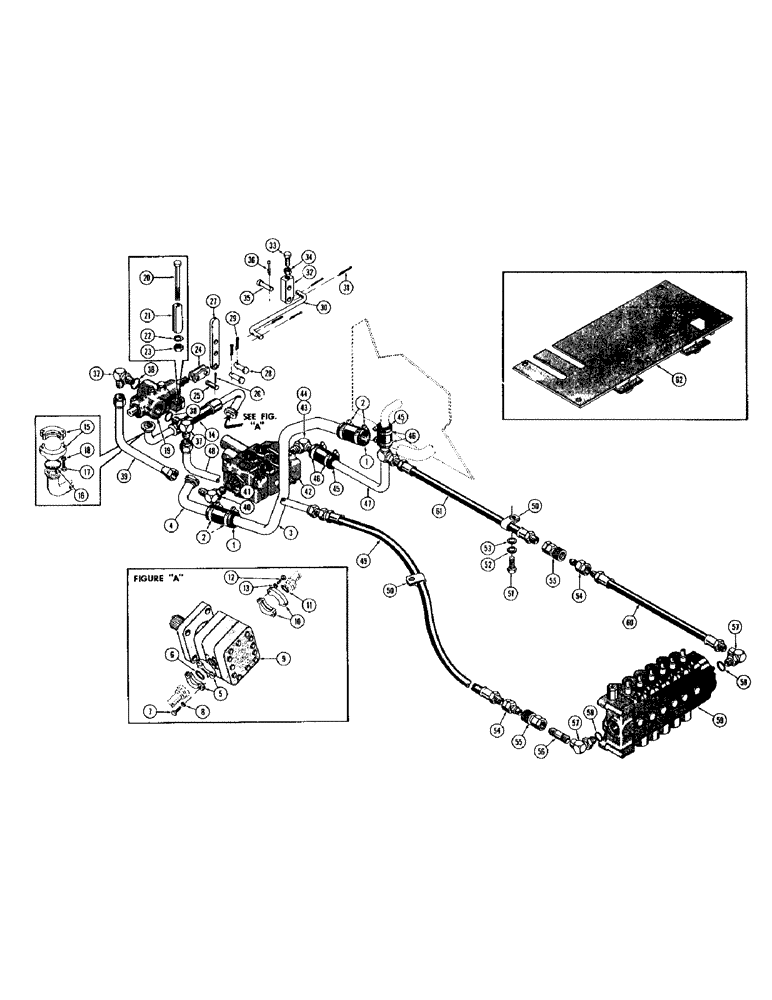

Запчасти Case 1000D (268) - BASIC BACKHOE HYDRAULICS (07) - HYDRAULIC SYSTEM

1

R14169

HOSE

- low pressure, from reservoir

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R22230

TUBE - hydraulic tank to hydraulic pump, suction side (Dozer models only)

1шт.

R21783

TUBE - hydraulic tank to hydraulic pump, suction side (Loader models only)

1шт.

4

R22254

FITTING - special, pump (Suction side)

1шт.

5

A12301

CLAMP,Half

ASSEMBLY - split

2шт.

6

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

7

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Flange mounting, dozer models only Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Flange mounting (Loader models only)

4шт.

8

92-7

LOCK WASHER,7/16"

4шт.

9

REF

INSTRUCTION

PUMP - hydraulic (See page 308 for dozers see page 304 and 306 for loader pump)

1шт.

10

A12306

FLANGE

- split (Dozer models only)

2шт.

A12301

CLAMP,Half

ASSEMBLY - split (Loader models only)

2шт.

11

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring (Dozer models only)

1шт.

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring (Loader models only)

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Dozer models only) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (Loader models only)

4шт.

13

92-6

LOCK WASHER,3/8"

dozer models only 3/8"

4шт.

92-7

LOCK WASHER,7/16"

loader models only 7/16"

4шт.

14

D34284

HOSE - pump to diverter valve (Dozer models only)

1шт.

D34143

HOSE - pump to diverter valve (Loader models only)

1шт.

15

A12306

FLANGE

- split

2шт.

16

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Flange mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

A19957

VALVE

- diverter

1шт.

20

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

(A19957 mounting) Hex, 1/2"-13 x 4 1/2", G5

2шт.

21

D34061

SPACER - diverter valve

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

24

D34141

LINK - diverter valve spool

2шт.

25

D34036

PIN -, Serial Range: link-valve

1шт.

26

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.

27

D34057

LEVER

- diverter valve

1шт.

28

B18292

AXLE PIN

PIN - linkage pivot

2шт.

29

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

30

D34142

ROD - throttle stop bracket

1шт.

31

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

32

D34059

BRACKET - throttle stop

1шт.

33

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

HHCS - 5/16" - 18 NF x 7/8"

1шт.

34

25-115

NUT,5/16"-24, G5

- hex (5/16"-18 NF)

1шт.

35

B18292

AXLE PIN

PIN - linkage pivot

1шт.

36

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

37

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable (1" NPT x 1" JIC) 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

39

D34139

TUBE - diversion valve to equipment control valve

1шт.

40

R20720

FITTING

ELBOW - 90 degree adj., special (Used with 3 spool valves)

1шт.

D36615

ELBOW - 90 degree adj., special (Used with 2 spool valves)

1шт.

41

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

42

REF

INSTRUCTION

VALVE - equipment control (See Figure 312 thru 322)

1шт.

43

D30511

FITTING

STEM - hose, adjustable

1шт.

44

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

45

R22378

HOSE

- low pressure

2шт.

46

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

47

D34134

TUBE - hydraulic reservoir return

1шт.

48

D34137

TUBE - diverter valve to backhoe valve

1шт.

49

D34046

HOSE - diversion valve to backhoe valve (84")

1шт.

50

D34163

CLAMP

- hose

2шт.

51

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2" (D34163 mounting)

2шт.

52

92-8

LOCK WASHER,1/2"

2шт.

53

195-33

WASHER,1/2"

- plain

2шт.

54

D31617

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, male

2шт.

55

D31618

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, female

2шт.

56

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe (3/4" NPT x 3")

1шт.

57

D26463

FITTING

ELBOW - 90 degree adjustable (3/4" NPT x 1" JIC)

2шт.

58

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

59

REF

INSTRUCTION

VALVE - backhoe

1шт.

60

D31476

HOSE ASSY.

HOSE - return, from backhoe valve (41")

1шт.

61

D28113

HOSE - return, from backhoe valve (34")

1шт.

62

D34145

PLATE - floor, front

1шт.
