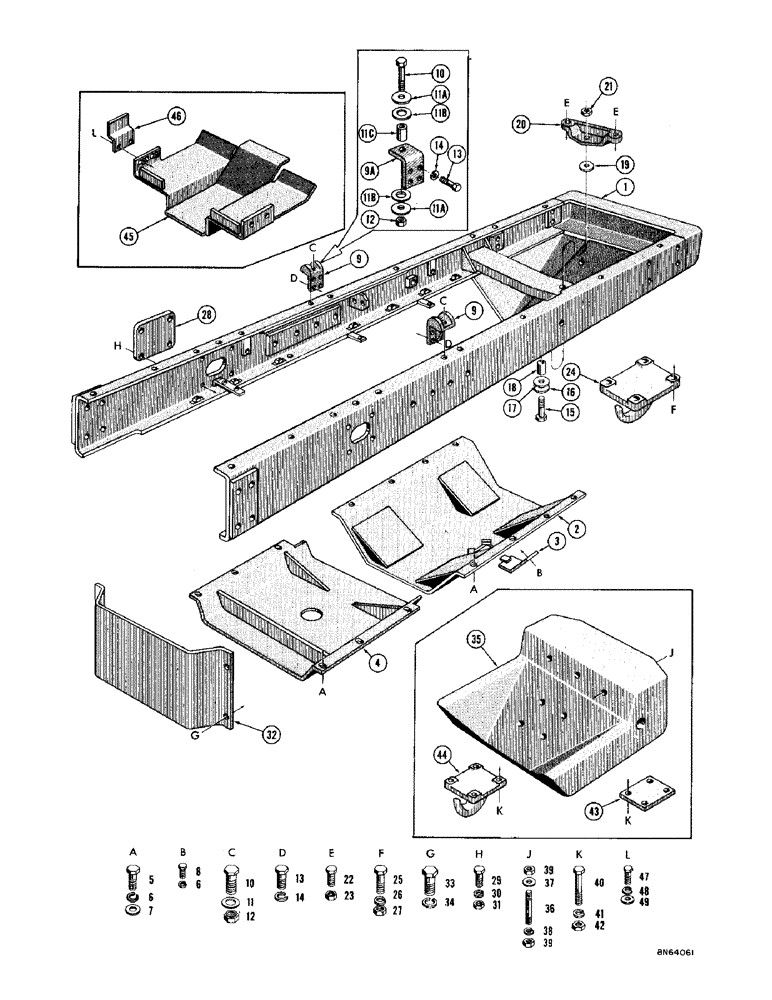

Запчасти Case 1000D (006) - ENGINE FRAME AND RELATED PARTS (01) - ENGINE

1

R20453

FRAME - engine (Used before tractor serial no. 7104823) Order 1 - D31861 engine frame, 1 - 13-1256 cap screw, 1 - D31851 washer, 1- D31853 spacer, 1 - D31854 washer, and 1 - 131-357 nut for service

1шт.

D31861

FRAME - engine (Used on tractor serial no. 7104823 and after)

1шт.

2

R22045

GUARD - crankcase front

1шт.

3

R21101

DOOR - guard front

1шт.

4

R21044

GUARD - crankcase rear

1шт.

5

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4"

14шт.

6

92-8

LOCK WASHER,1/2"

15шт.

7

95-8

WASHER,1/2"

plain 1/2"

14шт.

8

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

1шт.

9

R20603

MOUNT - engine, rear (Used before tractor serial no. 7104823)

2шт.

9a

D31850

MOUNT - engine, rear (Used on tractor serial no. 7104823 and after)

2шт.

10

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3" (R20603 mounting)

2шт.

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

(D31850 mounting) Hex, 3/4"-10 x 4 1/2", G5

2шт.

11

195-45

WASHER,3/4"

2шт.

11a

D31854

WASHER

- rear engine mount (Top and bottom) D31850 mount only

4шт.

11b

D31852

SPACER

WASHER - rear engine mount (Center) D31850 mount only

4шт.

11c

D31855

SPACER - rear engine mount, D31850 mount only

2шт.

12

131-533

LOCK,3/4"-16

NUT - lock (3/4" - 16 NF) R20603 mount only

2шт.

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC) D31850 mount only

2шт.

13

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

14

92-8

LOCK WASHER,1/2"

8шт.

15

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

HHCS - 5/8" - 18 NF x 3-3/4" (R22665 mount only)

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(D31861 mount only) Hex, 3/4"-10 x 3 1/2", G5

1шт.

16

R22667

WASHER

- front engine mount (Bottom) R22665 mount only

1шт.

D31854

WASHER

- front engine mount (Bottom) D31861 mount only

1шт.

17

R22668

WASHER

- front engine mount (Center) R22665 mount only

1шт.

D31852

SPACER

WASHER - front engine mount (Center) D31861 mount only

1шт.

18

R22666

SPACER - front engine mount, R22665 mount only

1шт.

D31853

SPACER - front engine mount, D31861 mount only

1шт.

19

R23019

WASHER - front engine mount (Top) R22665 mount only

1шт.

D31851

WASHER

- front engine mount (Top) D31861 mount only

1шт.

20

R22665

MOUNT - front, engine (Used before tractor serial no. 7104823)

1шт.

D31856

MOUNT - front, engine (Used on tractor serial no. 7104823 and after)

1шт.

21

131-13

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF) R22665 mount only

1шт.

230-41112

LOCK NUT,3/4"-10, GA

NUT -lock (3/4" - 10 NC) D31856 mount only

1шт.

22

14-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 5

HHCS - 9/16" - 18 NF x 2-3/4"

2шт.

23

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (9/16" - 18 NF)

2шт.

NS

NOT SERVICED

HOOK INSTALLATION - front pull (Optional) Machinary item (6337)

1шт.

24

71671

PLATE ASSY.

HOOK - front pull

1шт.

25

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4" - 16 NF x 2-1/2"

4шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

27

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

4шт.

28

R19420

PLATE - cover

2шт.

29

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4"

8шт.

30

92-6

LOCK WASHER,3/8"

8шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

8шт.

R3867

GUARD INSTALLATION - transmission rear (Used without rear equipment) Machinery item

1шт.

32

R19112

GUARD - transmission rear

1шт.

33

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

HHCS - 3/4" - 16 NF x 1-1/2" (If Used)

4шт.

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(If used) Hex, 3/4"-10 x 1 1/2", G5

4шт.

34

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

R4235

FRONT COUNTERWEIGHT AND PULL HOOK INSTALLATION - optional (Machinery item)

1шт.

R4236

FRONT COUNTERWIEGHT INSTALLATION - without pull hook (Machinery item)

1шт.

35

R21322

COUNTERWEIGHT - front

1шт.

36

R11490

STUD - 1" - 14 NF x 12"

3шт.

37

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- standard wrot (1-1/16" I.D. x 2-1/2" O.D. x 11/64" thick)

3шт.

38

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

3шт.

39

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

6шт.

40

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS - 3/4" - 16 NF x 5" (R4235 only)

4шт.

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4" - 16 NF x 4-1/2" (R4236 only)

4шт.

41

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

42

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

4шт.

43

74621

WEIGHT

PLATE - mounting (R4236 only)

1шт.

44

71671

PLATE ASSY.

HOOK - front pull (R4235 only)

1шт.

R3672

PAN

GUARD INSTALLATION - undercarriage

1шт.

45

R19645

PAN

GUARD - undercarriage

1шт.

46

R19643

BRACKET

- mounting

2шт.

47

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2" (If used)

4шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

48

92-8

LOCK WASHER,1/2"

4шт.

49

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 1/8" thick)

4шт.
