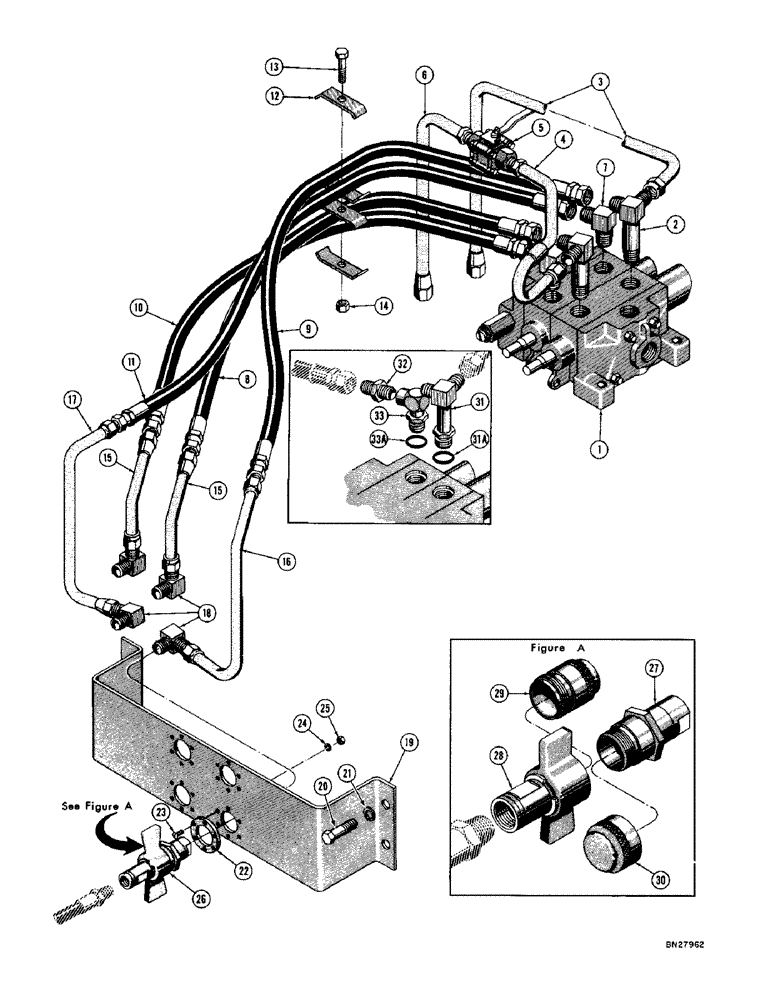

Запчасти Case 1000D (266) - DUAL PULL BEHIND HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Figures 312 thru 320)

1шт.

2

R22489

TEE - male, 1" NPT x 3/4" JIC x 3/4" JIC (Used before tractor serial no. 7104771)

2шт.

3

R22496

TUBE - equipment control valve to dozer angling or power tilt hydraulics

1шт.

4

R22495

TUBE - equipment control valve to shut off valve

1шт.

5

R21817

VALVE

- shut off

1шт.

6

R22498

TUBE - diversion valve to dozer angling or power tilt hydraulics

1шт.

7

R22444

ELBOW - 90 degree male, 1" NPT x 3/4" JIC (Used before tractor serial no. 7104771)

2шт.

8

R21875

HOSE - equipment control valve to upper R.H. quick disconnect (41" long)

1шт.

9

R21873

HOSE - equipment control valve to lower R.H. quick disconnect (52" long)

1шт.

10

R21917

HOSE

- equipment control valve to upper L.H. quick disconnect (38" long)

1шт.

11

R21877

HOSE - equipment control valve to lower L.H. quick disconnect (44" long)

1шт.

12

R16917

CLAMP - hose

4шт.

13

14-560

HHCS - 5/16" - 24 NF x 3-3/4" (R16917 mounting)

1шт.

14

131-365

LOCK NUT

NUT - lock (5/16" - 24 NF)

1шт.

15

R14864

TUBE - equipment control valve to upper R.H. and L.H. quick disconnect

2шт.

16

R21881

TUBE - equipment control valve to lower R.H. quick disconnect

1шт.

17

R14866

TUBE - equipment control valve to lower L.H. quick disconnect

1шт.

18

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" NPT x 3/4" JIC

4шт.

19

72423

PIPE

BRACKET - quick disconnect mounting

1шт.

20

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NF x 1-3/4" (72423 mounting)

4шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

22

72362

SWITCH

FLANGE - mounting

4шт.

23

173-80

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

RHMS - #8 - 32 NC x 3/4" (72362 mounting)

24шт.

24

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

24шт.

25

129-6

NUT,#8-32

24шт.

26

35146

QUICK DISCONNECT

4шт.

27

36262

DISCONNECT - male half

1шт.

28

36263

DISCONNECT - female half

1шт.

29

72363

PLUG - dust

4шт.

30

72364

CAP - dust

4шт.

31

D32055

TEE - male, adjustable (Used on tractor serial no. 7104771 and after)

2шт.

31a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male (Used on tractor serial no. 7104771 and after)

2шт.

33

D26463

FITTING

ELBOW - female, 90 degree adjustable (Used on tractor serial no. 7104771 and after)

2шт.

33a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
