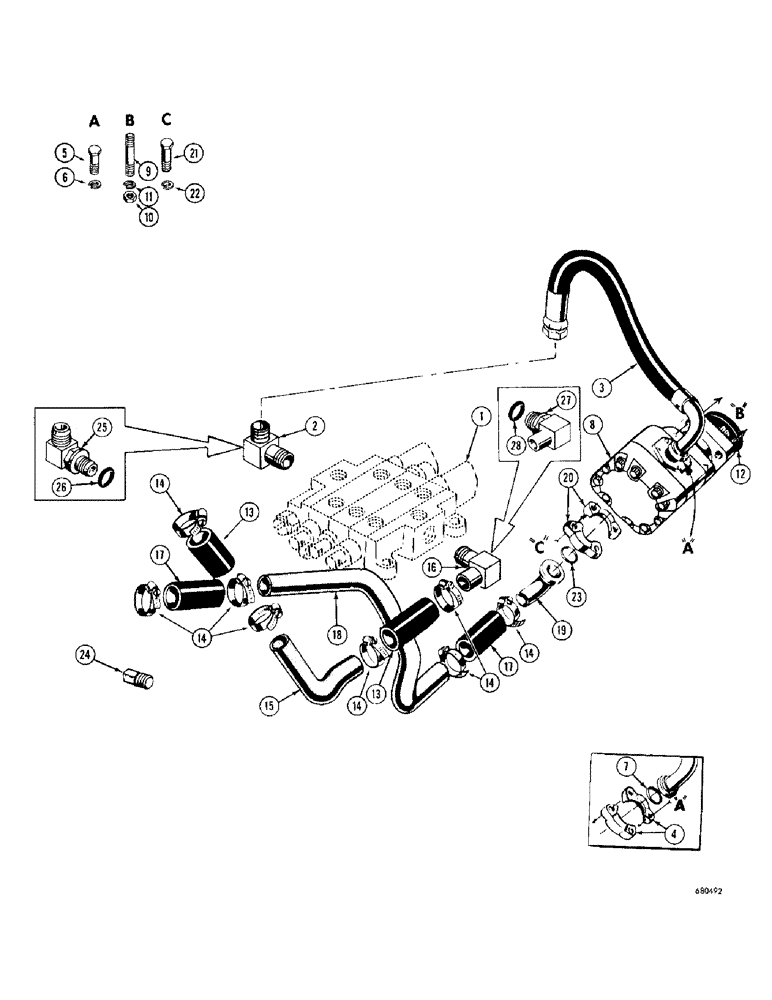

Запчасти Case 1000D (260) - DOZER PRIMARY HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Figures 312 thru 320)

1шт.

2

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC x 1" NPT (Used before tractor serial no. 7104771)

1шт.

3

R22255

HOSE

- special, hydraulic pump to equipment control valve (34-1/2" long) Pressure side

1шт.

4

A12306

FLANGE

ASSEMBLY - split

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(A12306 mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

8

R18534

PUMP - hydraulic (Dozer models only) 34 G.P.M. (See Figure 308 for breakdown) Used before tractor serial no. 7104001 (Order D29490 for service)

1шт.

D29490

PUMP

- hydraulic (Dozer models only) 34 G.P.M. (See Figure 308 for breakdown) Used on tractor serial no. 7104001 and after

1шт.

9

46522

SLEEVE

STUD - 1/2" - 20 NF x 2-1/4" (Pump mounting)

4шт.

10

25-118

NUT,1/2"-20, G5

- hex., 1/2" - 20 NF

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

R22634

WASHER

- rubber

1шт.

13

R22378

HOSE

- low pressure

2шт.

14

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

8шт.

15

R22377

TUBE - equipment control valve to hydraulic tank return (Used before tractor serial no. 7104771)

1шт.

D31651

CABLE

TUBE - equipment control valve to hydraulic tank return (Used on tractor serial no. 7104771 and after)

1шт.

16

R22379

STEM - hose, 1" NPT x 1-1/4" O.D. hose stem (Used before tractor serial no. 7104771)

1шт.

17

R14169

HOSE

- low pressure

2шт.

18

R22230

TUBE - hydraulic tank to hydraulic pump, suction side

1шт.

19

R22254

FITTING - special

1шт.

20

A12301

CLAMP,Half

HALF - split

2шт.

21

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(A12301 mounting) Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

22

92-7

LOCK WASHER,7/16"

4шт.

23

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

24

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT) hydraulic tank (Used before tractor serial no. 7104771)

2шт.

25

R20720

FITTING

ELBOW - 90 degree adjustable (Used on tractor serial no. 7104771 and after)

1шт.

26

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

27

D30511

FITTING

STEM - hose, adjustable (Used on tractor serial no. 7104771 and after)

1шт.

28

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
