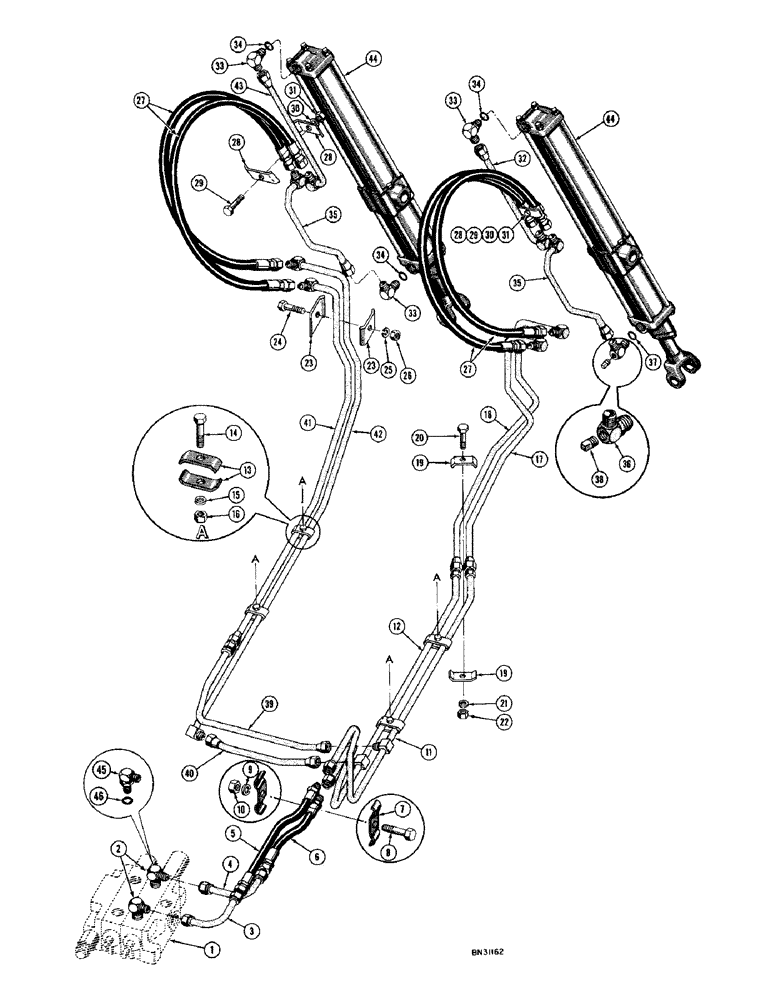

Запчасти Case 1000D (256) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, (See Figures 312 thru 320)

1шт.

2

R22444

ELBOW - 90 degree, special (Used before tractor serial no. 7104771)

2шт.

3

R22553

TUBE - equipment control valve to dozer lift cylinder, front port (Used before tractor serial no. 7104771)

1шт.

D31662

TUBE - equipment control valve to dozer lift cylinder, front port (Used on tractor serial no. 7104771 and after)

1шт.

4

R22555

TUBE

- equipment control valve to dozer lift cylinder, rear port (Used before tractor serial no. 7104771)

1шт.

D31663

TUBE - equipment control valve to dozer lift cylinder, rear port (Used on tractor serial no. 7104771 and after)

1шт.

5

R22173

HOSE

- equipment control valve to dozer lift cylinder, rear port (13-1/2" long)

1шт.

6

R22557

HOSE - equipment control valve to dozer lift cylinder, front port (9-1/4" long)

1шт.

7

R15257

CLAMP

- hose

2шт.

8

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS - 5/16" - 24 NF x 2-1/4" (R15257 mounting)

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

11

R22079

TUBE - equipment control valve to dozer lift cylinder, rear port

1шт.

12

R22082

TUBE - equipment control valve to dozer lift cylinder, front port

1шт.

13

R16916

CLAMP - tube

8шт.

14

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R16916 mounting) Hex, 5/16"-24 x 1 3/4", G5

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

17

R21055

TUBE - equipment control valve to R.H. dozer lift cylinder, rear port

1шт.

18

R21057

TUBE - equipment control valve to R.H. dozer lift cylinder, front port

1шт.

19

R16916

CLAMP - tube

2шт.

20

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2" (R16916 mounting)

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

23

R21853

CLAMP

- tube

4шт.

24

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R21853 mounting) Hex, 5/16"-24 x 1 3/4", G5

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

27

37405

HOSE

- equipment control valve to dozer lift cylinder (36" long)

4шт.

28

R16916

CLAMP - hose

4шт.

29

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R16916 mounting) Hex, 5/16"-24 x 1 3/4", G5

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

32

71569

TUBE - equipment control valve to R.H. dozer lift cylinder, rear port

1шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 5/8" JIC x 5/8" JIC

3шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

71571

BAND,16.875" Length

TUBE - equipment control valve to dozer lift cylinder, front port

2шт.

36

R19576

FITTING

ELBOW - 90 degree adjustable (Special) 5/8" JIC x 5/8" JIC

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, extended square head (1/8" NPT)

1шт.

39

R22385

TUBE - equipment control valve to L.H. dozer lift cylinder, rear port

1шт.

40

R22387

TUBE - equipment control valve to L.H. dozer lift cylinder, front port

1шт.

41

R22389

TUBE - equipment control valve to L.H. dozer lift cylinder, rear port

1шт.

42

R22391

TUBE

- equipment control valve to L.H. dozer lift cylinder, front port

1шт.

43

71568

BEARING ASSY,95mm ID x 145mm OD x 32mm W

TUBE - equipment control valve to L.H. dozer lift cylinder, rear port

1шт.

44

R19299

CYLINDER - hydraulic, dozer lift (See Figure 302 for breakdown)

2шт.

45

R21880

ELBOW

- 90 degree adjustable, special (Used on tractor serial no. 7104771 and after)

2шт.

46

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
