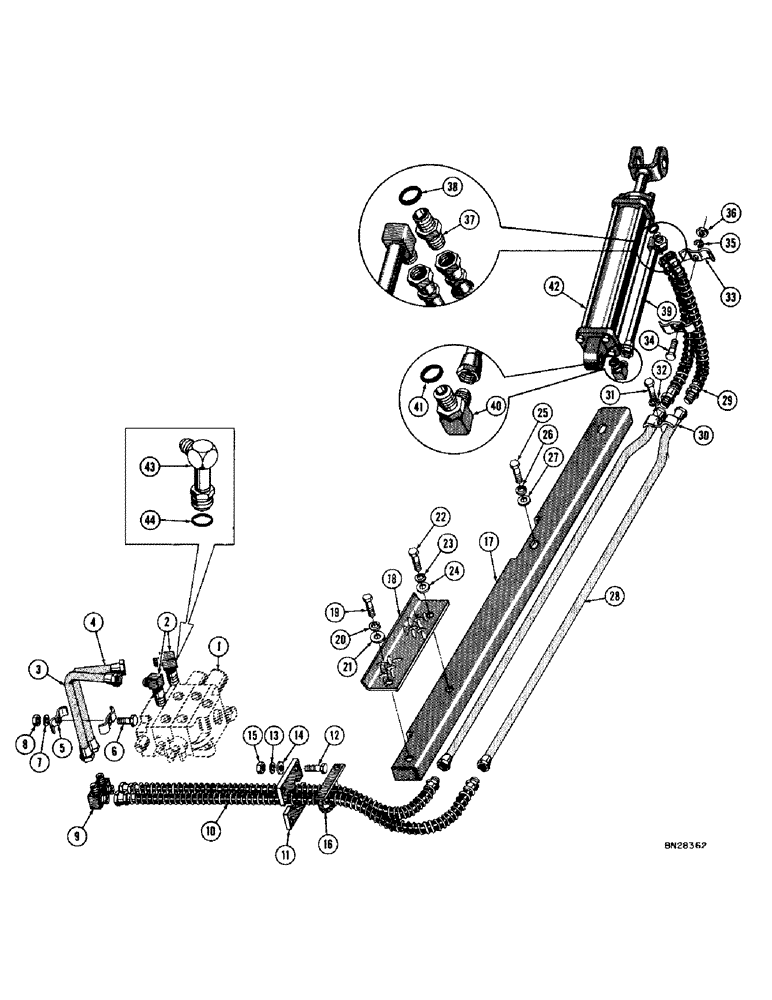

Запчасти Case 1000D (252) - POWER TILT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic (See Figures 312 thru 320)

1шт.

2

R22570

ELBOW - 90 degree adjustable, special (Used before tractor serial no. 7104771)

2шт.

3

R22408

TUBE

- equipment control valve to power tilt cylinder, front port (Used before tractor serial no. 7104771)

1шт.

D31665

TUBE

- equipment control valve to power tilt cylinder, front port (Used on tractor serial no. 7104771 and after)

1шт.

4

R22410

TUBE

- equipment control valve to power tilt cylinder, rear port (Used before tractor serial no. 7104771)

1шт.

D31664

TUBE - equipment control valve to power tilt cylinder, rear port (Used on tractor serial no. 7104771 and after)

1шт.

5

R16916

CLAMP - tube

2шт.

6

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R16916 mounting) Hex, 5/16"-24 x 1 3/4", G5

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

9

R19935

ELBOW - 90 degree (Special) 3/4" JIC x 5/8" JIC

2шт.

10

R21784

HOSE

- equipment control valve to power tilt cylinder (60" long)

2шт.

11

R19592

SUPPORT - hose

2шт.

12

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8" - 24 NF x 1-3/4" (R19592 mounting)

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

95-6

WASHER,3/8"

- standard wrot (13/32" I.D. x 13/16" O.D. x 5/64" thick)

4шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

16

R19648

GUIDE - hose

1шт.

17

R22482

GUARD - tube

1шт.

18

74751

PLATE - step

1шт.

19

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2" (74751 & R22482 mounting)

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

95-8

WASHER,1/2"

standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

1шт.

22

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2" (74751 & R22482 mounting)

1шт.

23

92-8

LOCK WASHER,1/2"

1шт.

24

95-8

WASHER,1/2"

standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

1шт.

25

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4" (R22482 mounting)

2шт.

26

92-8

LOCK WASHER,1/2"

2шт.

27

95-8

WASHER,1/2"

standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

2шт.

28

R22560

TUBE

- equipment control valve to power tilt cylinder

2шт.

29

39882

FLEXIBLE HOSE

HOSE - equipment control valve to power tilt cylinder (22-1/4" long)

2шт.

30

R16916

CLAMP - tube

1шт.

31

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(R16916 mounting) Hex, 5/16"-24 x 1 1/4", G5

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

R16916

CLAMP - hose

2шт.

34

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2" (R16916 mounting)

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.

36

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight male, 5/8" JIC x 5/8" JIC

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

39897

TUBE - equipment control valve to power tilt cylinder, rear port

1шт.

40

R20839

FITTING

ELBOW - 90 degree adjustable, 5/8" JIC x 5/8" JIC

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

42

R19926

CYLINDER - hydraulic, power tilt (See Figure 302 for breakdown)

1шт.

43

D31683

ELBOW - 90 degree adjustable, special (Used on tractor serial no. 7104771 and after)

2шт.

44

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
