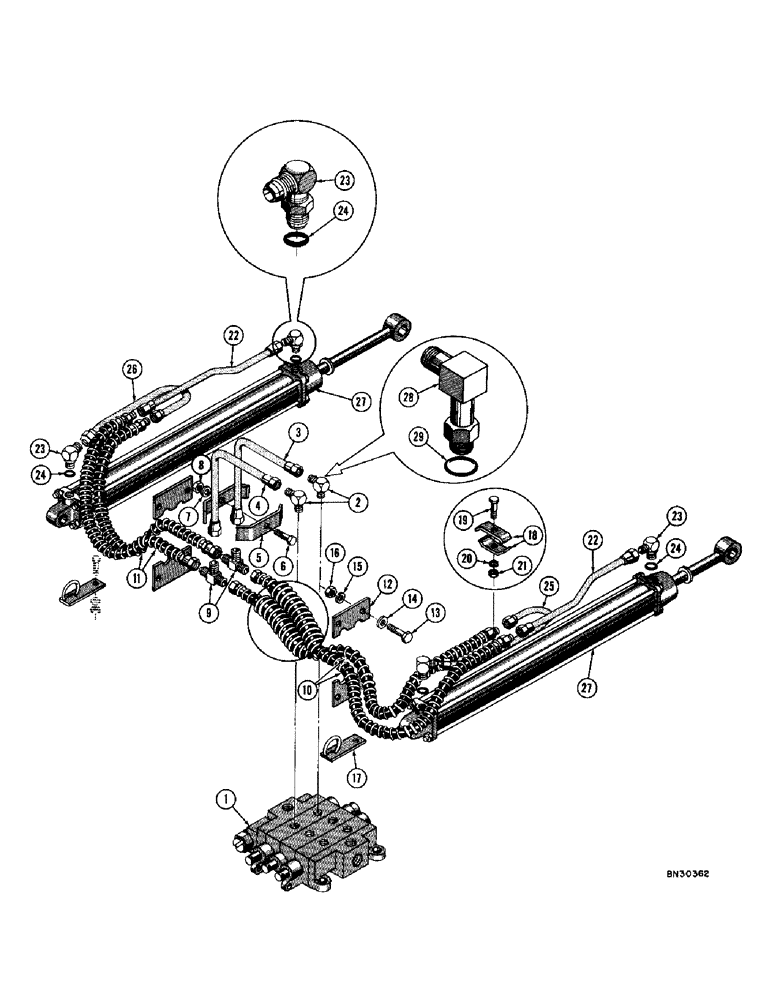

Запчасти Case 1000D (246) - POWER ANGLING HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic (See Figures 312 thru 320)

1шт.

2

R22570

ELBOW - 90 degrees, special (Used before tractor serial no. 7104771)

2шт.

3

R22408

TUBE

- equipment control valve to power angling cylinder, front port (Used before tractor serial no. 7104771)

1шт.

D31665

TUBE

- equipment control valve to power angling cylinder, front port (Used on tractor serial no. 7104771 and after)

1шт.

4

R22410

TUBE

- equipment control valve to power angling cylinder, rear port (Used before tractor serial no. 7104771)

1шт.

D31664

TUBE - equipment control valve to power angling cylinder, rear port (Used on tractor serial no. 7104771 and after)

1шт.

5

R16916

CLAMP - tube

2шт.

6

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R16916 mounting) Hex, 5/16"-24 x 1 3/4", G5

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

9

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- male, 5/8" JIC x 5/8" JIC x 3/4" JIC

2шт.

10

R21784

HOSE

- equipment control valve to R.H. angling cylinder (60" long)

2шт.

11

R21787

HOSE - equipment control valve to L.H. angling cylinder (49-1/2" long)

2шт.

12

R19592

SUPPORT - hose

4шт.

13

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8" - 24 NF x 1-3/4" (R19592 mounting)

8шт.

14

95-6

WASHER,3/8"

- standard wrot ( I.D. x 7/16" O.D. x 1") 3/8"

8шт.

15

92-6

LOCK WASHER,3/8"

8шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

8шт.

17

R19648

GUIDE - hose

2шт.

18

R16916

CLAMP - hose

4шт.

19

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(R16916 mounting) Hex, 5/16"-24 x 1 3/4", G5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

22

R21789

TUBE

- equipment control valve to power angling cylinder, front port

2шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree male (5/8" JIC x 5/8" JIC)

4шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

R21792

TUBE

- equipment control valve to R.H. angling cylinder, rear port

1шт.

26

R21791

TUBE

- equipment control valve to L.H. angling cylinder, rear port

1шт.

27

R19345

CYLINDER

- hydraulic, power angling (See Figure 300 for breakdown)

2шт.

28

D31683

ELBOW - 90 degree adjustable, special (Used on tractor serial no. 7104771 and after)

2шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
